Yellow 6m Rod Water Well Drilling Rig High Efficiency 350 Meters

Yellow 6m Rod Water Well Drilling Rig High Efficiency 350 Meters
Yellow 6m Rod Water Well Drilling Rig High Efficiency 350 Meters
video play

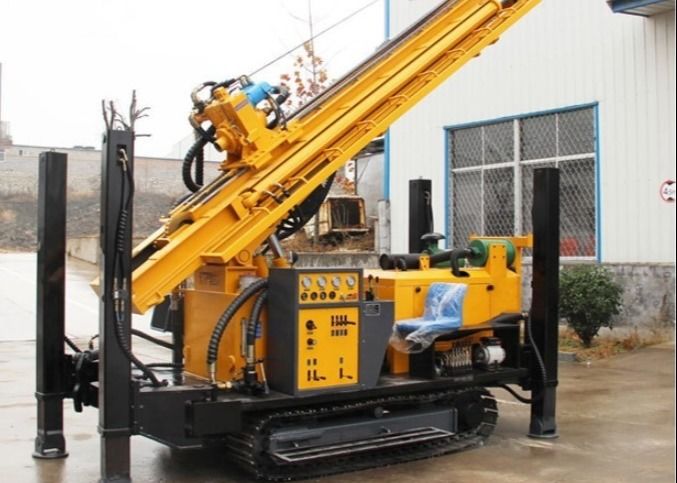

Large Image :  Yellow 6m Rod Water Well Drilling Rig High Efficiency 350 Meters

Product Details:
Place of Origin: China
Brand Name: SHITAN
Certification: ISO
Model Number: ST350
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: A detailed discussion
Packaging Details: Wooden case
Delivery Time: 5-8days
Payment Terms: T/T, Western Union
Supply Ability: 20000 Sets
Contact Now
Detailed Product Description
Product Name: Top Quality Yellow Color High Drilling Effeciency ST 350 Meters Water Well Drilling Rig Application: Drilling Well,hammer For Drills
Air Pressure: 1.25-3.5Mpa After-sales Service Provided: Engineers Available To Service Machinery Overseas
Warranty: 12 Months Weight: 9800KG
Power: 92Kw Usage: Water Well
Hole Diameter: 140-305mm Drill Rod Length: 1.5-6
Drilling Depth: 350M Rod Length: 6M
Condition: Brand New
Highlight:

Yellow Water Well Drilling Rig

,

350M Depth Water Well Drilling Rig

,

6M Drilling Rod Water Well Rig


Top Quality Yellow Color High Drilling Effeciency ST 350 Meters Water Well Drilling Rig





Introduction High Drilling Effeciency ST 350 Meters Water Well Drilling Rig


water well drilling rig is a lightweight, efficient, versatile drilling hole equipment, which borehole drilling machine is mainly applied in drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering. The water well drilling rig machine can work on different formations, well drilling diameter up to 245mm.


Tech Datas Of 350 water well drilling rig


Technical Parameters of ST300  water well drilling rig
type ST350
The weight 9.8T
Dimension

6m×2m×2.5m
The hole diameter

105-305mm
Drilling depth 350m
One-time advance length 6m
Walking speed 2.5KM/H
Climbing angles 30
Power 92KW
Using air pressure 1.7-3.3MPA
Air consumption 17-35
Drill pipe length 1.5m 2.0m 3.0m 6.0m
Drill pipe diameter 89mm,102mm,
Rig lifting force 20T
Swing speed 55-115rpm
Swing torque 6200-85000N.m


Characteristics of High Drilling Effeciency ST 350 Meters Water Well Drilling Rig

The drill machine adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore drill hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines. Unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console, easy to operate.

FAQ Of High Drilling Effeciency ST 350 Meters Water Well Drilling Rig

Q: Are you factory or trade company?

A: We are factory.
Q: Warranty terms of your machine?
A: One year warranty for the machine and technical support according to your needs
Q: Will you provide some spare parts of the machines?
A: Yes, of course.
Q: What about the voltage of products? Can they be customized?
A: Yes, of course. The voltage can be customized according to your equirement.
Q: Can you accept OEM orders?
A: Yes, with professional design team, OEM orders are highly welcome.

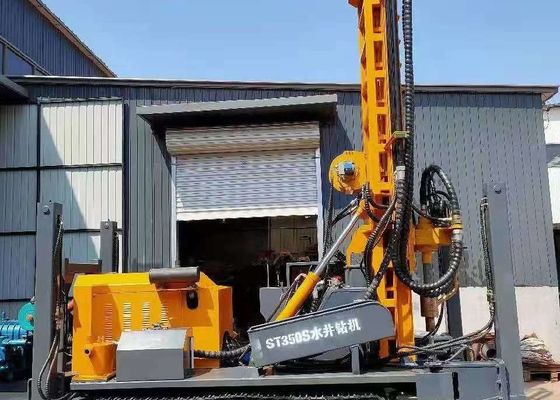

Our Product Show ST 350 Meters Water Well Drilling Rig


Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order

Yellow 6m Rod Water Well Drilling Rig High Efficiency 350 Meters







Yellow 6m Rod Water Well Drilling Rig High Efficiency 350 Meters
Yellow 6m Rod Water Well Drilling Rig High Efficiency 350 MetersYellow 6m Rod Water Well Drilling Rig High Efficiency 350 Meters
