Product Details:
Payment & Shipping Terms:
|
| Drilling Depth: | 300 | Drilling Diameter: | 105-300mm |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 1 Year |
| Power Type: | Diesel | Color: | Yellow |
| Weight: | 7T | Rotary Head Storke: | 3.4m-6.0m |
| Rated Power: | 55-132KW | Optional Accessories: | 90KW |
| Weight Of The Rig: | 4m×1.7m×2.2m | Air Pressure: | 16-55m³/min |
| High Light: | Portable Water Well Drilling Rig Machine,300 Meters Water Well Drilling Rig,Double Cylinder Water Well Drilling Rig |
||

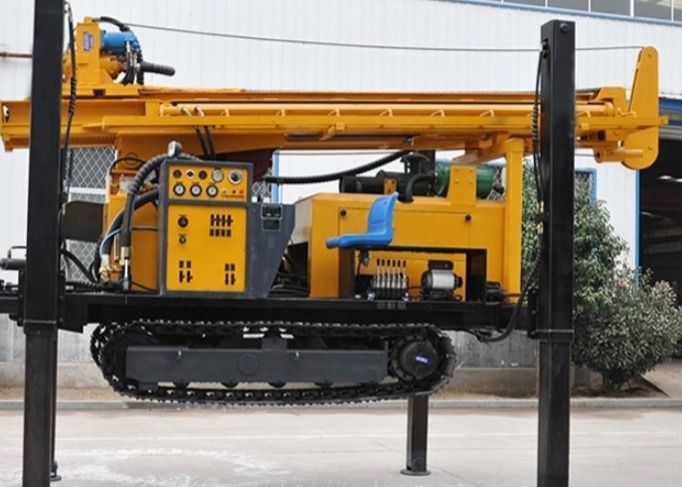

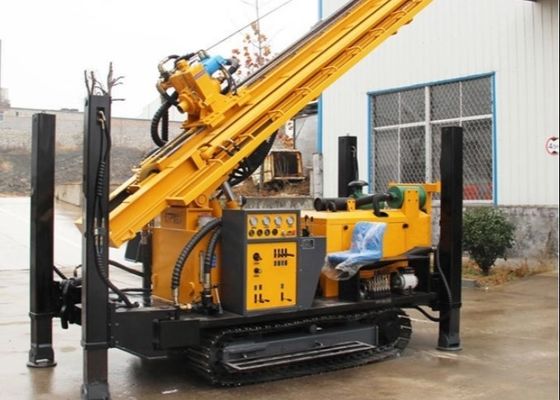

300 Meter Portable Type Drilling Depth Water Well Drilling Rig Machine
Brief introduction of ST-300 drilling rig
The Main Technical Advantages of ST300 as follow: The drilling depth for one time can reach 6.6 meters, which save the time to load the drill pipes and also save the human resources; Adopting double cylinder to lifting, lifting force can reach 24 tons; The four strong legs can lift 1.7meters, and the real ground clearance can reach 1.45 meters, which easy to stable the machine and convenient for the loading during the transportation;
ST-300 drilling rig parameters
| Technical Parameters of ST300 Crawler type water well drilling rig | |
| type | ST300 |
| The weight | 7T |
| Dimension | 4100*1950*2600mm |
| The hole diameter | 140-325mm |
| Drilling depth | 300m |
| One-time advance length | 6.6m |
| Walking speed | 2.5KM/H |
| Climbing angles | 30 |
| Power | 85KW |
| Using air pressure | 1.7-3.3MPA |
| Air consumption | 17-35 |
| Drill pipe length | 1.5m 2.0m 3.0m 6.0m |
| Drill pipe diameter | 89mm,102mm, |
| Rig lifting force | 18T |
| Swing speed | 55-115rpm |
| Swing torque | 6200-85000N.m |
