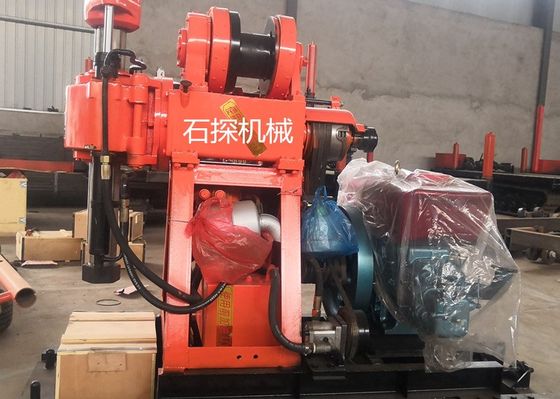

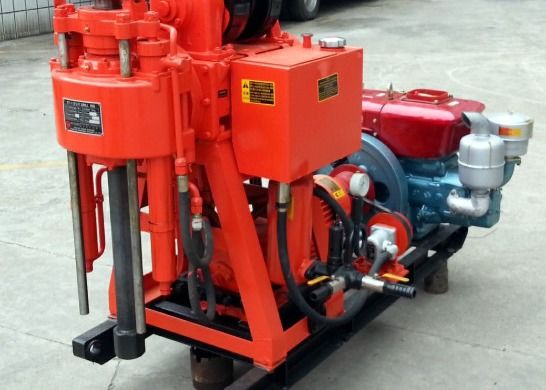

OEM 150 Meters Depth XY-1A Core Drill Rig For Engineering Investigation

OEM 150 Meters Depth XY-1A Core Drill Rig For Engineering Investigation
OEM 150 Meters Depth XY-1A Core Drill Rig For Engineering Investigation
video play

Large Image :  OEM 150 Meters Depth XY-1A Core Drill Rig For Engineering Investigation

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-1A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 2000set/year
Contact Now
Detailed Product Description
Type: OEM 150 Meters Depth XY-1A Core Drill Rig For Engineering Investigation Power Type: Diesel
Usage: Water Well,railways, Core Drilling Drilling Depth: 30-180m
Dimension(L*W*H): 1620*970*1560mm Drill Pipe Diameter: 42mm
Borehole Dip Angle: 90°~75 Spindle Speed: 1010、790、470、295、140（r/min）
Model: YBC-12/125 Rated Pressure: 12.5Mpa
Rated Power: 18KW WEIGHT: AROUND 600KG
Highlight:

OEM Core Drill Rig

,

Engineering Investigation Core Drill Rig

,

150 Meters Core Drill Rig

150 Meters XY-1A Core Drill Rig For Engineering Investigation





Product Introduction



The core drilling rig is suitable for drilling water well, soil exploration, geophysical exploration, road and building exploration and drilling blasting holes.This is widely used and hydraulic feeding , which has the characteristics of large power, large lifting force (2T) and high transmission torque.



 Core Drill Rig Parameters



XY-1A Type
Drill Swivel Head

Drilling depth



 Max.150m

Spindle speed



 1010,790,470,295,140(r/min)

Hole diameter



 Max.150m Spindle stroke 450kmm
Drill rod diameter 42.50mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-12/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.25Mpa
Flow speed 8ml/r
Rated speed 1500r/min
Hoist Power(diesel)
Max. lifting capacity 15KN Model(diesel engine) 1105
Hoisting drum revolution

121,76,36(r/min)



 Rated power 18KW
Drum diameter 140mm Rated speed 2200r/m
WEIGHT AROUND 600KG
SIZE 1620*970*1560mm



OEM Customized Core Drill Rig



1.High efficiency and saving labor intensity .with hydraulic automatic feeding mechanism, improve the drilling efficiency, reduce labor intensity.
2.Safe and reliable.Using the ball cassette clamping device, and can down bar without stopping ,and it is convenient to operate.
3.Easy to operate.Equipped with a pressure gauge at the bottom for measuring pressure of the bore , easy to operate.



FAQ



1. What kind of projects you will work for?

Water well, Borehole, Exploration coring, Foundation Piling, Blast holes, Geothermal heat project or others?

2. Max drilling depth you want.

100m, 150m, 200m, 300m, or other depth.

3. The Min and Max borehole diameter you need.

Like Max 200mm, Min 75mm.

4. Geological condition of the working site if you know about it.

Soft ground like soil, mud, sand?

Hard ground like hard rocks?

Or mixed?

5. Are you factory or trading company?

We are direct factory ,we support OEM different kinds of drilling rigs.



Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order

OEM 150 Meters Depth XY-1A Core Drill Rig For Engineering Investigation

OEM 150 Meters Depth XY-1A Core Drill Rig For Engineering Investigation

OEM 150 Meters Depth XY-1A Core Drill Rig For Engineering Investigation

OEM 150 Meters Depth XY-1A Core Drill Rig For Engineering Investigation

OEM 150 Meters Depth XY-1A Core Drill Rig For Engineering InvestigationOEM 150 Meters Depth XY-1A Core Drill Rig For Engineering InvestigationOEM 150 Meters Depth XY-1A Core Drill Rig For Engineering Investigation

OEM 150 Meters Depth XY-1A Core Drill Rig For Engineering Investigation
