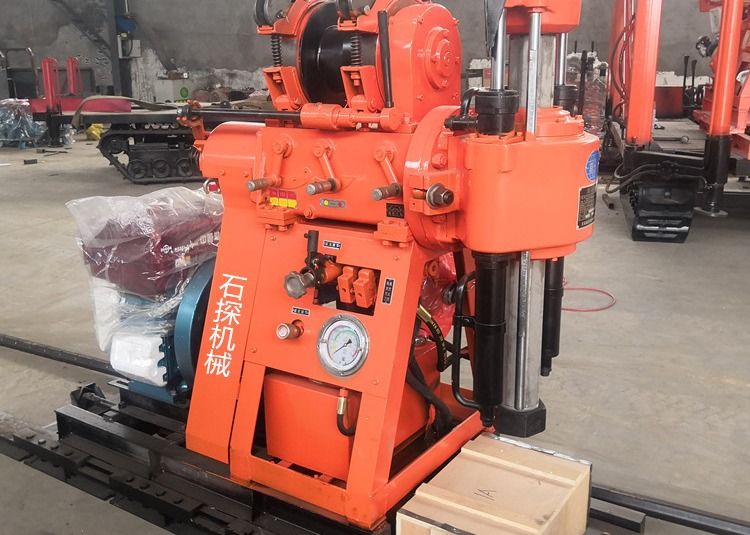

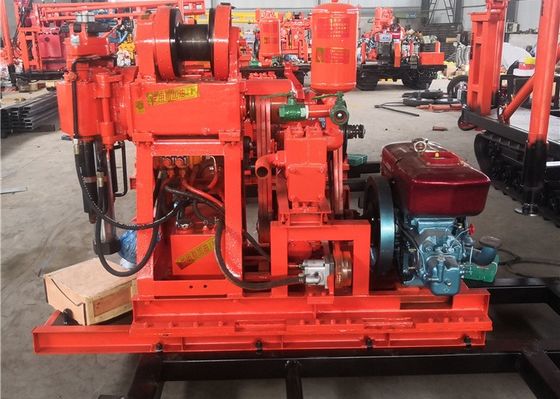

XY-1 Customized Hot Selling Drilling Machine,100 Meters 150 Meters Water Well Drilling Rig
Description of XY-1 Customized Hot Selling Drilling Machine,100 Meters 150 Meters Water Well Drilling Rig
XY-1 is widely used for Water well drilling, Geological Exploration and Prospecting, Geothermal wells, Blast-hole, Irrigation projects, etc.XY-1 is widely used for Water well drilling, Geological Exploration and Prospecting, Geothermal wells, Blast-hole, Irrigation projects, etc.
XY-1 Customized Hot Selling Drilling Machine,100 Meters 150 Meters Water Well Drilling Rig parameters
| |
| Drill |
Swivel Head |
|
Drilling depth
|
Max.150m |
Spindle speed
|
1010,790,470,295,140(r/min) |
|
Hole diameter
|
Max.150m |
Spindle stroke |
450kmm |
| Drill rod diameter |
42.50mm |
Spindle pull-down |
Max.15KN |
| Angle range |
90-75 |
Spindle lifting capacity |
Max. 25KN |
| Oil pump |
Water pump |
| Model |
YBC-12/125 |
Model |
Horizontal reciprocating single-acting piston pump |
| Rated pressure |
12.5Mpa |
Working pressure |
Max. 1.25Mpa |
| Flow speed |
8ml/r |
|
|
| Rated speed |
1500r/min |
|
|
| Hoist |
Power(diesel) |
| Max. lifting capacity |
15KN |
Model(diesel engine) |
1105 |
| Hoisting drum revolution |
121,76,36(r/min)
|
Rated power |
18KW |
| Drum diameter |
140mm |
Rated speed |
2200r/m |
| WEIGHT |
AROUND 600KG |
| SIZE |
1620*970*1560mm |
Features of XY-1 Customized Hot Selling Drilling Machine,100 Meters 150 Meters Water Well Drilling Rig
Small core drill rig XY-1water well drilling rig machine is a compact spindle drilling machine. Rotary drilling rig is mainly used for shallow hole core drilling with diamond or tungsten carbide bits. Geological drilling rig can also be used for engineering geological survey and injection in the fields of railway, highway,bridge, irrigation works, dam and etc. Easy to operate and maintain.
Our Service XY-1 Customized Hot Selling Drilling Machine,100 Meters 150 Meters Water Well Drilling Rig
1, 24 hours online .Your inquiry will be quick reply on 24 hours .
Also can go through all questions with you by any online chatting tools
2,Professionally introduction,details pictures and working video to show machine
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
