Product Details:
Payment & Shipping Terms:
|
| Model Number: | XY-1A | Product Name: | XY-1A 150 Meters Hydraulic Drilling Rig Geological Drilling Rig Machine |
|---|---|---|---|
| Power Type: | Diesel / 13.3kw | Drill Depth: | 150m |
| Usage: | Water Well | Color: | Yellow,Red And Blue |
| Application: | Geological Exploration | Drilling Angle: | 90 ~75° |
| Drilling Diameter: | Customized | Dimensions: | 1100*600*500mm, 600*650*2330mm, |
| High Light: | Hydraulic Geological Drilling Rig Machine,XY-1A Geological Drilling Rig Machine,150 Meters Geological Drilling Rig Machine |
||

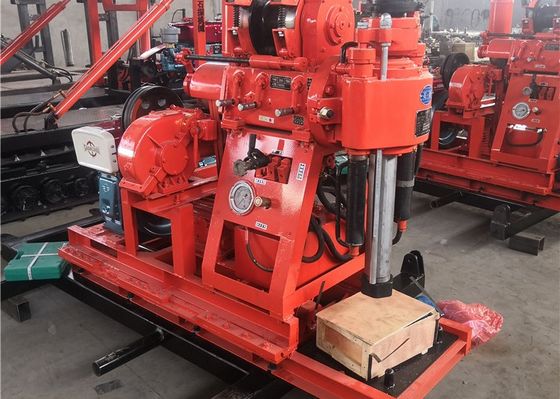

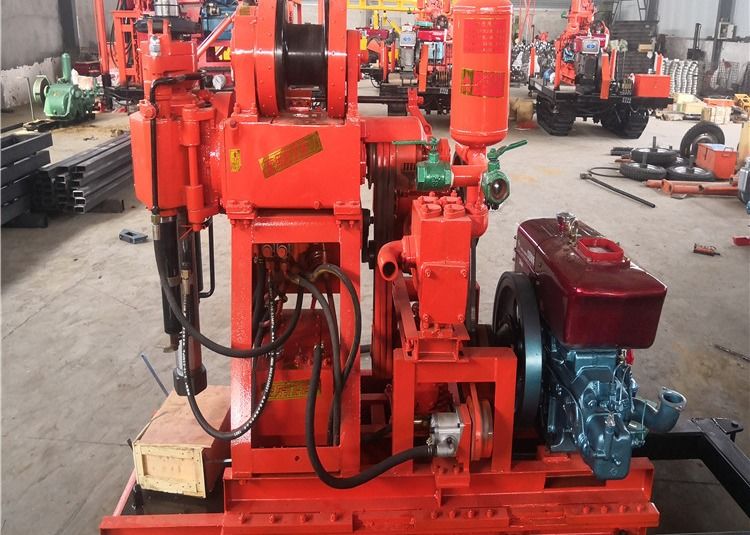

Hydraulic Geological Drilling Rig Machine XY-1A 150 Meters Deep
Product Description
XY-1A is a portable and multi-purpose drilling rig for engineering investigationIt is mainly used for the general survey and engineering geological investigation of solid deposits, and various inspection holes of concrete structures. Diamond alloy and steel grain bits can be selected for drilling according to different strata.
Technical Parameters:
| Basics | Drill depth (m) | 150 |
| Drill hole(mm) | 75-300 | |
| Final hole (mm) | 75 | |
| Rod diameter (mm) | 42/50 | |
| Drill angle (Degree) | 75-90 | |
| Size(LxWxH)mm | 1710x8500x1340 | |
| Weight (kg) | 500 | |
| Spindle | Spindle speed (r/min) | 1010/790/470/295/140 |
| Travel (mm) | 450 | |
| Max. Pressure (kN) | 15 | |
| Lifting force (kN) | 25 | |
| Hoist | Maxing lifting force (kN) | 15 |
| Drum speed (r/min) | 121/76/36 | |
| Drum diameter (mm) | 140 | |
| Steel rope diameter (mm) | 9.1-12 | |
| Steel rope capacity | 35 | |
| Brake diameter (mm) | 252 | |
| Brake band width (mm) | 50 | |
| Oil Pump | Model | YB-20/125 |
| Rated pressure (Mpa) | 12.5 | |
| Flow rate (ml/r) | 20 | |
| Rated speed (r/min) | 1500 | |
| Diesel engine | Model | ZS1105(18HP) |
| Nominal speed (r/min) | 2200 | |
| Power(Kw) | 13.3 |
Product Features
1. Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.
2. With hydro-automatic feeding device, and high drilling efficiency.
3. Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.
4. Close levers, convenient to operate, safe and reliable operations.
5. Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.
6. Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.
Product Application
It is applicable to industrial and civil buildings, as well as geological survey work on roads, railways, bridge foundations, dam sites, water conservancy, water wells, prospecting and other construction sites, shallow oil and gas exploration, mine tunnel ventilation, drainage, etc. According to the different strata, diamond, hard alloy, screw and other drill bits can be selected for drilling. This type of drill has the advantages of compact structure, light weight, small size and good detachable performance. This type of drill is one of the equipment that meets the market demand.
FAQ
Q1.What is the main function of our hydraulic tricycle tractor water well drilling rig? Ans.: It has different models used for all kinds of hole diameter and depth, it is the best choice for drilling works.
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4.What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for a new one.And we provide videos for machine install and operation.
Q5. What is your terms of packing?
Ans.:Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q6. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q7.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have record s for your clients, and will prefer providing accessories to clients.
