260 Meters Deep Water Well Boring Machine With Large Horsepower

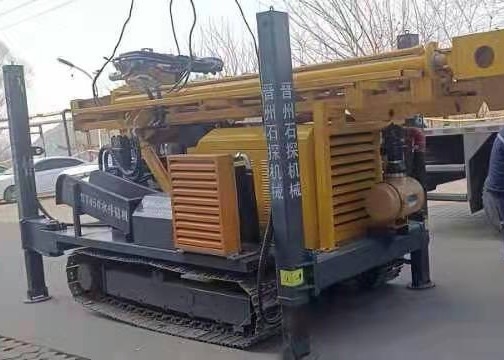

Large Image : 260 Meters Deep Water Well Boring Machine With Large Horsepower

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO
Model Number:	ST260

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Wooden case (bare)
Delivery Time:	5-8 days after payment
Payment Terms:	T/T,Western Union
Supply Ability:	1000 sets/month

Contact Now

Detailed Product Description

Product Name:	ST 260 Water Well Drilling Rig	Drilling Depth:	260 Meters
Key Words:	Water Borewell Machine,water Well Drilling Rigs,deep Well Drilling Machineborehole Drilling Machine, ,	Drilling Diameter:	105-260mm
After-sales Service Provided:	Video Technical Support	Warranty:	24 Months
Power Type:	Diesel	Color:	Yellow,Red And Blue
Weight:	6T	Rotary Head Storke:	3.4m-6.0m
Rated Power:	55-132KW	Optional Accessories:	70KW
Weight Of The Rig:	4m×1.7m×2.2m	Air Pressure:	16-55m³/min
Highlight:	260 Meters Water Well Drilling Rig , Customized Diesel Water Well Drilling Rig , Water Well Boring Machine

ST 260 Meters Large Pneumatic Water Well Drilling Rig

Product Specifications

Product Name	ST 260 Water Well Drilling Rig
Drilling Depth	260 Meters
Drilling Diameter	105-260mm
Power Type	Diesel
Rated Power	55-132KW
Weight	6T
Dimensions	4m × 1.7m × 2.2m
Warranty	24 months
After-sales Service	Video technical support

Product Introduction

The ST-260 Water Well Drilling Rig is a multifunctional hydraulic well drilling rig series primarily designed for industrial and civil drilling applications, including geotemperature drilling. This robust machine offers significant advantages including large drilling diameter capacity, deep drilling capability, rapid footage, and high operational efficiency.

Technical Parameters

Drilling Depth	260m
Hole Diameter	φ105-260mm
Advance Length per Cycle	6.6m
Working Pressure	1.7-3.0MPa
Air Consumption	17-35m³/min
Rod Length Options	1.5m, 2m, 3m, 6m
Rod Diameter Options	φ76, φ89, φ102, φ114
Lifting Power	24T
Rotation Torque	8500-11000N.m
Rotation Speed	40-70r/min
Diesel Engine	Yuchai
Engine Power	85Kw/2200rpm
Travelling Speed	0-2.5 Km/h
Climb Capacity	30°
Weight	9000kgs
Dimensions	5900x2000x2850mm
Application	Complicated geological conditions: Rock, Mud, Sand etc.
Drilling Methods	Top drive hydraulic rotary and propulsion, DTH Drilling or Mud Pump Drilling
DTH Hammer Options	4",5",6",8" Drill hammer or CIR110, 130, 150, 170

Key Features

Advanced hydraulic technology with high torque hydraulic motor rotation
Large bore drill hydraulic propulsion system
Branded multi-cylinder engine with two-stage air filter
Specialized intake air compressor designed for hydraulic systems
Unique pump design for easy maintenance and reduced costs
Centralized hydraulic control console for simplified operation

Frequently Asked Questions

Are you the original manufacturer?

Yes, we are a manufacturer specializing in construction machinery with a complete product series.

What payment terms do you accept?

We typically accept T/T (Telegraphic Transfer) payments.

What is your delivery time?

Delivery is typically within 7 days after receiving the deposit.

What is your warranty policy?

12 months after shipment (6 months for the engine).

What is your minimum order quantity?

The MOQ is 1 set.

Do you accept OEM orders?

Yes, we welcome OEM orders and can apply your branding to the products.

Drilling Site Considerations

1. Depth Assessment: Verify underground utilities (cables, sewers) before drilling to prevent damage.

2. Water Quality: After drilling, place charcoal at the well bottom to absorb toxins. Test water safety with small fish.

3. Well Construction: Keep the well above ground level with proper brick/ShiTan enclosure and cover to prevent contamination and ensure safety.

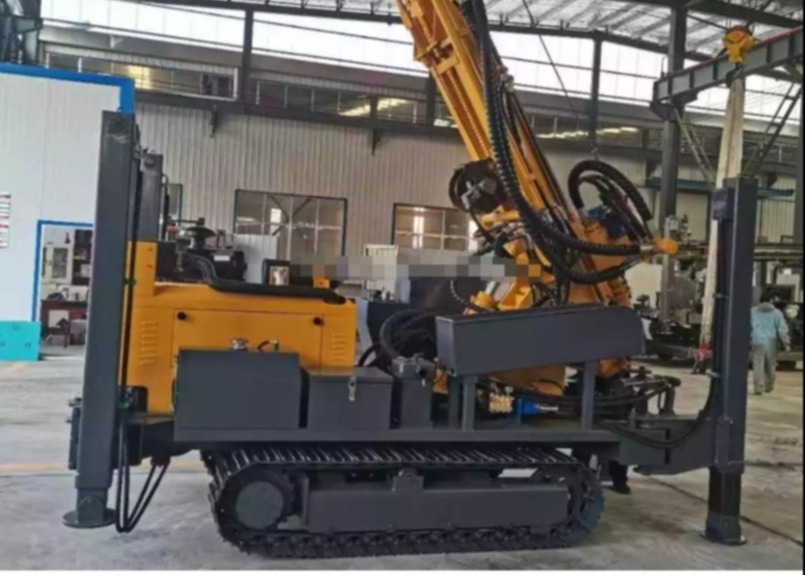

Product Gallery
