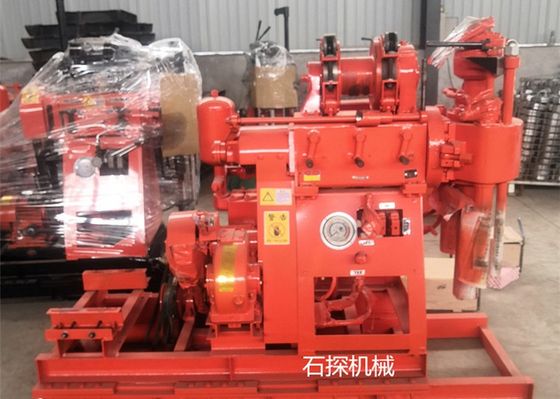

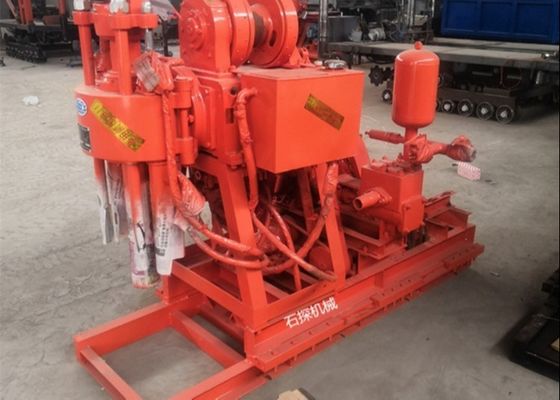

China Drilling Rig Factory Supply GK 200 High efficiency Soil Testing Drilling Machine
China Drilling Rig Factory Supply GK 200 High efficiency Soil Testing Drilling Machine Introduction
This is widely utilized and featured in high power and hoisting load(2T), large torque transmission, etc. The rotating speed of vertical hexagonal spindle varies between 71r/min-825r/min. It is suited for the geotectonic survey, geological core drilling, small hole drillings for grout, blast and water well in railway, water coservancy, bridge, dam foundation and other constructions. Diamond drill vit, alloy drill bit and steel roller drill bit are available for drilling according to different geological structures.
China Drilling Rig Factory Supply GK 200 High efficiency Soil Testing Drilling Machine Parameter:
| Rated drilling depth |
200m |
| Rated boring diameter |
200mm |
| Vertical shaft rotation speed (4 shifts) |
118, 236, 505, 1010.r/min |
| Vertical shaft max. output torque |
1500N*m |
| Max. hositing weight single line) |
17KN |
| Drilling rod diameter |
42mm |
| Drilling dip angle |
90~75° |
| Drill outside diameter (L*B*H) |
1433*697*1273mm |
| Drill weight |
500kg |
| max. boring diameter |
300mm |
GK-200 Meters Depth Portable Mini Flexible Water Well Drill Rig / Soil Testing Machine Feature:
1. With hydraulic automaatic feeding device, elevated drilling efficiency.
2. Large torque and drilling diameter.
3. With a spherial jaw holding mechanism and the rod replacement without breakdwn, high efficiency.
4. Compact structure, small volume, lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.
5. Adoping large drive pipe, double guide rod, increase the stability.
Our Service for China Drilling Rig Factory Supply GK 200 High efficiency Soil Testing Drilling Machine
1, Small order is aceptable.
2, Good service and low price.
3, 12 Months quality guarantee.
4, Any third party testing is accepable.
FAQ OF China Drilling Rig Factory Supply GK 200 High efficiency Soil Testing Drilling Machine
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom.
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
