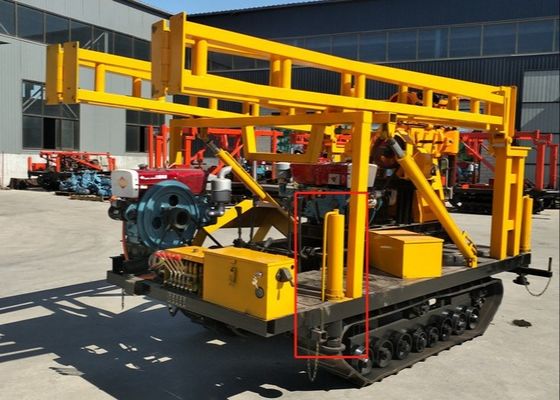

Customized GK200 Crawler Mounted Drilling Rig
GK 200 Crawler Mounted Drilling Rig Introduction
This is a lightweight, efficient and multifunctional drilling equipment , it is mainly applicable to industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc.. It is especially suitable for water intake in mountainous and rocky strata.
GK 200 Crawler Mounted Drilling Rig Technical Datas
| Model |
GK 200 |
| working wind pressure(Mpa) |
17-31 |
| Weight |
10~20 |
| Hole diameter(mm) |
4500kg |
| Cost effective drilling depth(m) |
180m |
| Feeding stroke(mm) |
3000 |
| Length of drill pipe(mm) |
3m |
| Diameter of drill pipe(mm) |
Φ76 |
| Maximum hoist capacity(N) |
35000 |
| Climb ability(°) |
30 |
| Walking speed(km/h) |
1~3 |
| Rotating speed(r/min) |
0-96 |
| Rotating torque(N.m) |
2100 |
GK 200 Crawler Mounted Drilling Rig Features:
The rig can create drilling jobs in different strata, borehole diameter can up to 245-294mm. The rig with hydraulic technology, supporting high torque hydraulic motor rotation and large bore hydraulic cylinder push, the multi cylinder engine of famous factory provides power for the hydraulic system, two stage air filter, air compressor air intake design, prolong the service life of diesel engine. Special pump set design is convenient for maintenance and reduce the cost of maintenance. Centralized control of the hydraulic control table, convenient operation.
GK 200 Crawler Mounted Drilling Rig FAQ
Q1. What is the main function of our drill rig?
Ans.: It has different models used for water well drill rig,mine blast hole drill,underground drill project,,etc
Q2. How about your delivery time?
: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q3. What is the warranty of our machine?
:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.
Q4: Will you provide some spare parts of the machines?
Yes, of course.
Q5: What about the voltage of products? Can they be customized?
Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
30% T/T in advanced, 70% T/T before shipment
Q7: How long will you take to arrange production?
380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
Yes, with professional design team, OEM orders are highly welcome.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
