Product Details:
Payment & Shipping Terms:
|
| Model Number: | XY-1A | Product Name: | XY-1A Water Well Drilling Rig 150 Meters Depth Geological Drilling Rig Machine |
|---|---|---|---|
| Power Type: | Diesel / 13.3kw | Drill Depth: | 150m |
| Usage: | Water Well | Color: | Yellow,Yellow Or As Your Rquest |
| Application: | Geological Exploration | Drilling Angle: | 90 ~75° |
| Drilling Diameter: | Customized | Dimensions: | 1100*600*500mm, 600*650*2330mm, |
| Warranty: | 12 Months | After-sales Service Provided: | Video Technical Support |
| High Light: | xy-1a water drilling equipment,xy-1a equipment,150m water drilling equipment |
||

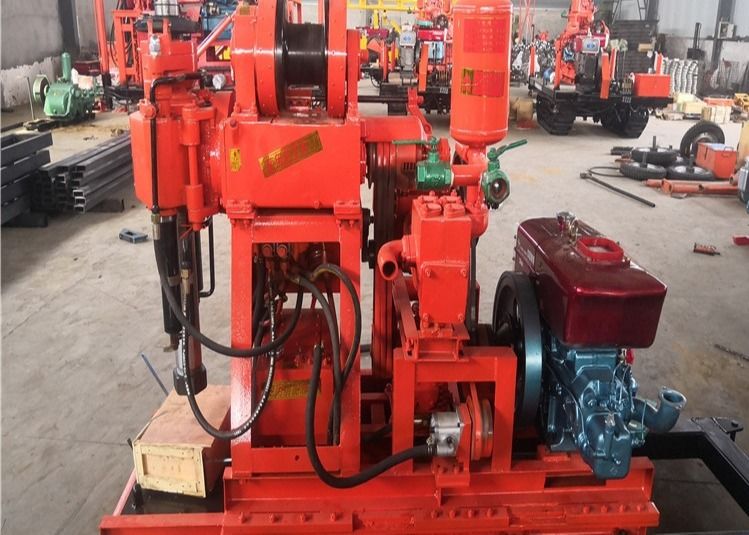

XY-1A Water Well Drilling Rig 150 Meters Depth Geological Drilling Rig Machine
XY-1A Water Well Drilling Rig 150 Meters Depth Geological Drilling Rig Machine Introduction
XY-1A is a portable and multi-purpose drilling rig for engineering investigationIt is mainly used for the general survey and engineering geological investigation of solid deposits, and various inspection holes of concrete structures
XY-1A Geological Drilling Rig Machine Technical Parameters:
| Basics | Drill depth (m) | 150 |
| Drill hole(mm) | 75-300 | |
| Final hole (mm) | 75 | |
| Rod diameter (mm) | 42/50 | |
| Drill angle (Degree) | 75-90 | |
| Size(LxWxH)mm | 1710x8500x1340 | |
| Weight (kg) | 500 | |
| Spindle | Spindle speed (r/min) | 1010/790/470/295/140 |
| Travel (mm) | 450 | |
| Max. Pressure (kN) | 15 | |
| Lifting force (kN) | 25 | |
| Hoist | Maxing lifting force (kN) | 15 |
| Drum speed (r/min) | 121/76/36 | |
| Drum diameter (mm) | 140 | |
| Steel rope diameter (mm) | 9.1-12 | |
| Steel rope capacity | 35 | |
| Brake diameter (mm) | 252 | |
| Brake band width (mm) | 50 | |
| Oil Pump | Model | YB-20/125 |
| Rated pressure (Mpa) | 12.5 | |
| Flow rate (ml/r) | 20 | |
| Rated speed (r/min) | 1500 | |
| Diesel engine | Model | ZS1105(18HP) |
| Nominal speed (r/min) | 2200 | |
| Power(Kw) | 13.3 |
XY-1A Geological Drilling Rig Machine Main Features:
| A. High rotation speed, six gears, the highest gear 1045r/min, high drilling effciency. | |||
| B. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque. | |||
| C. the machine is equipped with our national patent technology---taper clutch, with charactristics of strong transmission troque, easy operation and free maintenance. | |||
| D. for the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch. | |||
| E. Vertical spidle are fixed by four groups of bearings to ensure that the rotator has enough rigid for gravel layer and other complex geoloical conditions. | |||
| F. We are the first one to equip mud pump with the flow 160L/min in China, it saves cost and also makes the machine compct, moblie and lightweight. |
|||
XY-1A Geological Drilling Rig Machine FAQ
Q1.What is the main function of our hydraulic tricycle tractor water well drilling rig? Ans.: It has different models used for all kinds of hole diameter and depth, it is the best choice for drilling works.
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4.What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for a new one.And we provide videos for machine install and operation.
Q5. What is your terms of packing?
Ans.:Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q6. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q7.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have record s for your clients, and will prefer providing accessories to clients.
