Full Hydraulic Trailer Mounted 300m Deep Water Well Drilling Rig Machine

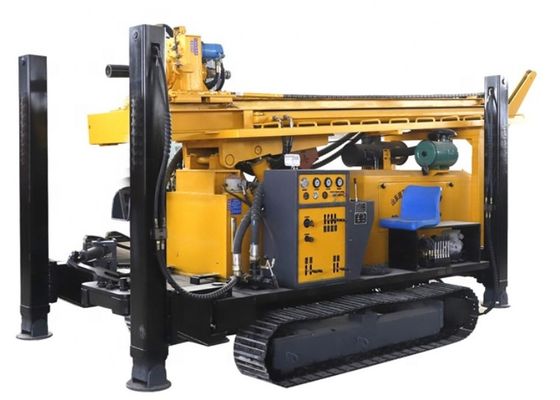

Large Image : Full Hydraulic Trailer Mounted 300m Deep Water Well Drilling Rig Machine

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO
Model Number:	ST300

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Wooden case (bare)
Delivery Time:	5-8days
Payment Terms:	L/C, D/P, D/P, T/T, Western Union
Supply Ability:	1000/month

Contact Now

Detailed Product Description

Drilling Depth:	300m	Drilling Diameter:	105-300mm
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Warranty:	1 Year
Power Type:	Diesel	Color:	Yellow
Weight:	7T	Rotary Head Storke:	3.4m-6.0m
Rated Power:	55-132KW	Optional Accessories:	90KW
Weight Of The Rig:	4m×1.7m×2.2m	Air Pressure:	16-55m³/min
Highlight:	300m deep water well drilling rig , 55kw deep water well drilling rig , trailer mounted water well drilling rig 300m

Full Hydraulic Trailer Mounted 300m Deep Water Well Drilling Rig Machine

Product Specifications

Attribute	Value
Drilling depth	300m
Drilling diameter	105-300mm
After-sales service	Engineers available to service machinery overseas
Warranty	1 Year
Power type	Diesel
Color	Yellow
Weight	7T
Rotary Head Stroke	3.4m-6.0m
Rated Power	55-132KW
Optional accessories	90KW
Weight of the rig	4m×1.7m×2.2m
Air pressure	16-55m³/min

Product Overview

The ST-300 Full Hydraulic Water Well Drilling Rig features a trailer-mounted design with top drive rotation for high drilling efficiency. Its compact layout and ground chassis provide excellent maneuverability, making it suitable for various terrains and applications including hydrology wells, shale gas exploration, geothermal projects, and coal-mine gas exploitation.

Technical Specifications

Parameter	Value
Type	ST300
Weight	7T
Dimensions	410019502600mm
Hole diameter	140-325mm
Drilling depth	300m
One-time advance length	6.6m
Walking speed	2.5KM/H
Climbing angles	30°
Power	85KW
Using air pressure	1.7-3.3MPA
Air consumption	17-35
Drill pipe length	1.5m, 2.0m, 3.0m, 6.0m
Drill pipe diameter	89mm, 102mm
Rig lifting force	18T
Swing speed	55-115rpm
Swing torque	6200-85000N.m

Key Features

Full hydraulic control for convenient and flexible operation
Top drive type rotary feeding lifting system
Multi-functional drilling capabilities
High efficiency operation with low operational costs
High outrigger crawler type for stability
Unique positive and negative axial pressure adjustment
Integrated lubricator function
Crawler mounted rig chassis for mobility
Excellent resale value in the industry

Frequently Asked Questions

Are you a trading company or manufacturer?

We are the factory with our own patents, capable of designing and manufacturing products.

How long is your delivery time?

Standard delivery is 7-10 days for in-stock items, or 15-20 days for custom orders, depending on quantity.

What is your payment method?

30% deposit via T/T, with 70% balance payment before delivery.

What drilling depths are available?

Our water well drilling rigs support depths ranging from 200m to 600m.

How long could your air compressor be used?

Our air compressors typically have a service life exceeding 10 years.

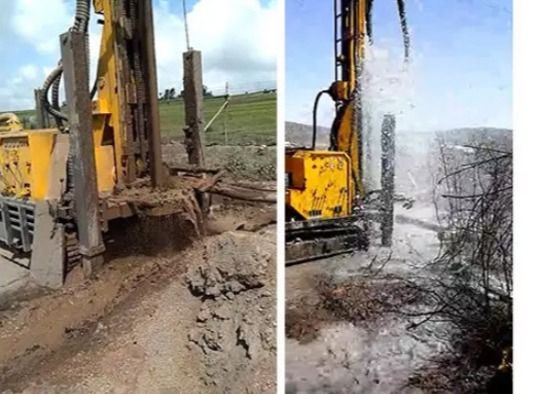

Product Images
