Product Details:
Payment & Shipping Terms:
|
| Product Name: | Shitan Quality Drilling Rig Hot Selling ST 350 Water Well Borehole Drilling Rigs | Application: | Drilling Well,hammer For Drills |
|---|---|---|---|
| Air Pressure: | 1.25-3.5Mpa | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Warranty: | 1 Year | Weight: | 9800KG |
| Power: | 92Kw | Usage: | Water Well |
| Hole Diameter: | 140-305mm | Drill Rod Length: | 1.5-6 |
| Drilling Depth: | 350M | Rod Length: | 6M |
| High Light: | water well borehole drill rig,350m borehole drill rig,350m water borehole drilling machine |
||

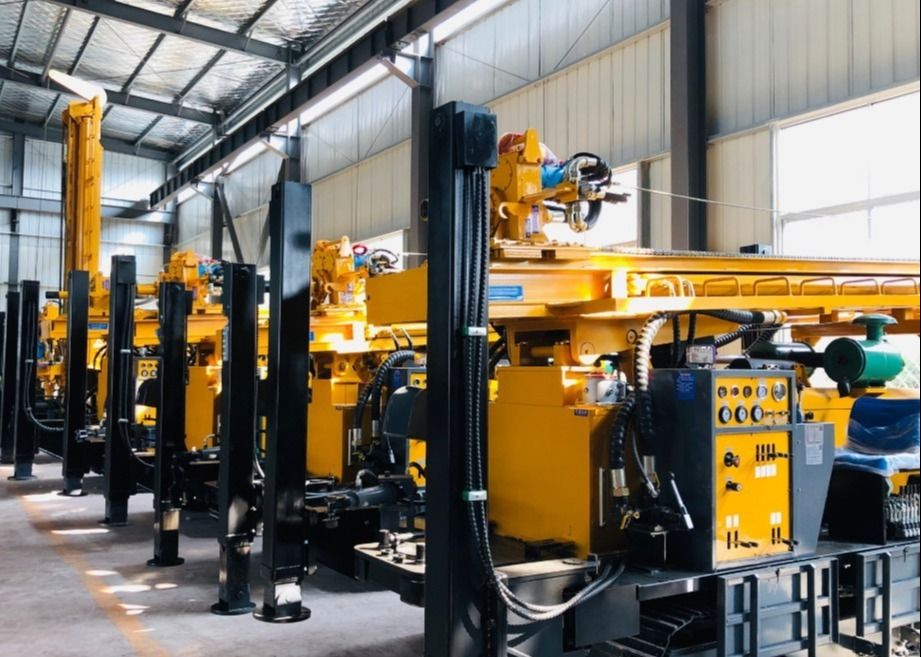

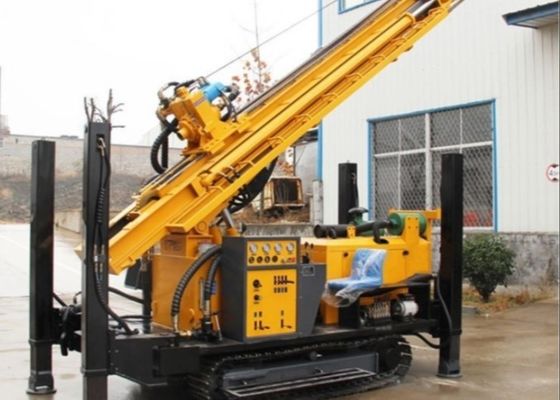

Shitan Quality Drilling Rig Hot Selling ST 350 Water Well borehole Drilling Rigs
Hot Selling ST 350 Water Well borehole Drilling Rigs Introduction
The well drilling rig machine can work on different formations. The drill machine adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore drill hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines. Unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console,easy to operate.
ST 350 Meters Depth Drilling Machine Water Well Drilling Rig Tech Data
| Technical Parameters of ST350 water well drilling rig | |
| type | ST350 |
| The weight | 9.8T |
| Dimension | 6m×2m×2.5m |
| The hole diameter | 105-305mm |
| Drilling depth | 350m |
| One-time advance length | 6m |
| Walking speed | 2.5KM/H |
| Climbing angles | 30 |
| Power | 92KW |
| Using air pressure | 1.7-3.3MPA |
| Air consumption | 17-35 |
| Drill pipe length | 1.5m 2.0m 3.0m 6.0m |
| Drill pipe diameter | 89mm,102mm, |
| Rig lifting force | 20T |
| Swing speed | 55-115rpm |
| Swing torque | 6200-85000N.m |
ST 350 Meters Water Well Drilling Rig Characteristics
1.High drilling efficiency, power provided by 60KW Yunnei diesel engine
2.High efficiency(20M~40M/Hour), large rotary torque(6000-6500N.m)
3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Self loading and unloading,easy to operating.
ST 350 Meters Water Well Drilling Rig FAQ
1. What are the delivery times?
