Type: | Geological Drilling Rig Machine | Power Type: | Diesel |
---|---|---|---|
Usage: | Water Well,railways, Core Drilling | Drilling Depth: | 100m |
Dimension(L*W*H): | 1640*1030*1440mm | Drill Pipe Diameter: | 42mm |
Borehole Dip Angle: | 90°~75 | Spindle Speed: | 142、285、570(r/min) |
Model: | YBC-12/125 | Rated Pressure: | 12.5Mpa |
Model(diesel Engine): | 1105 | Rated Power: | 18KW |
WEIGHT: | AROUND500KG | Spindle Stroke: | 450kmm |
Highlight: | diesel traction rock drill rig,100m depth rock drill rig,depth 100m rock drill machine |

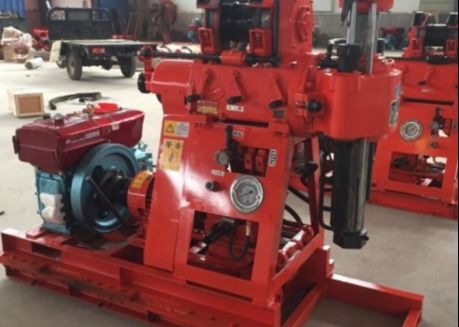

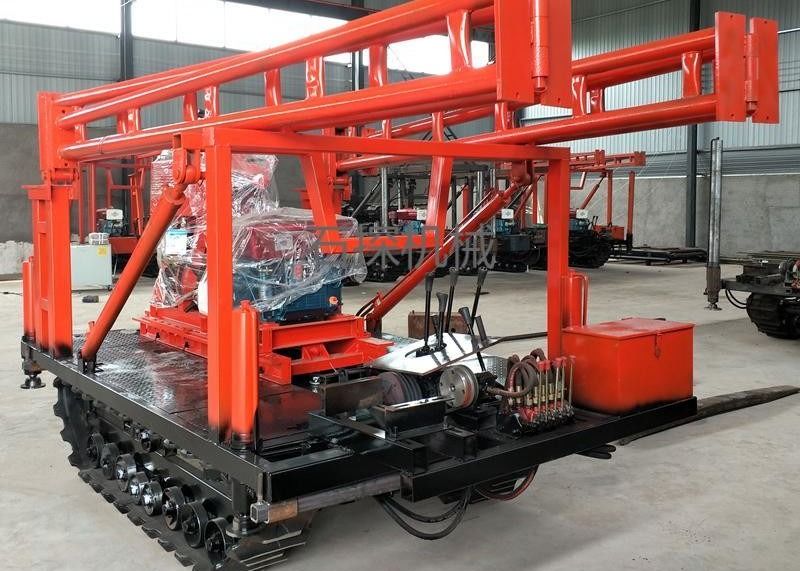

100m Depth Water Well Drilling Rig /Diesel Traction Rock Drill Water Well Drilling Rig
Applications of Water Well Drilling Rig
XY-1 type core drill is a portable drill with oil pressure feed. The rated drilling depth is 100 meters, the maximum opening diameter is allowed to be 110mm, the final hole diameter is 75mm. It is used for exploration, geophysical exploration, road and building as well as drilling projects such as blasting holes, shallow oil, natural gas and groundwater drilling, and can be used for dam grouting and tunnel ventilation, drainage and other engineering drilling. Surface and tunnel drilling for diamond and cemented carbide solid deposits. According to the bottom of the different selection of alloy, steel sand and steel grain drill for drilling.
Water Well Drilling Rig technical parameter
Drilling Rig | |
Drilling diameter(mm) | 110 |
Drilling depth (m) | 100 |
Drill pipe diameter (mm) | 42 |
Drilling angle(°) | 90~75 |
Equipment size(L * B * H) | 1640* 1030 * 1440 (mm) |
Rig weight (except engine) | 500 |
Gyrator | |
Spindle speed (four gear) (r/min) | 142,285,570 |
Spindle travel(mm) | 450 |
Spindle no-load lifting maximum moving speed(m/s) | 0.05 |
Spindle no load drop maximum movement speed(m/s) | 0.067 |
Spindle maximum feed pressure(KN) | 15 |
Spindle maximum lifting force(KN) | 25 |
Spindle maximum output torque(KN• m) | 0.5 |
Winch assembly | |
Winch maximum lifting force (single rope)(KN) | 10 |
Reel speed (r/min) | 55,110,220 |
Reel circumferential speed(m/s) | 0.42,0.84 ,1.68 |
Reel diameter(mm) | 145 |
Wire rope diameter(mm) | 9.3 |
Wire rope density (m) | 27 |
Brake diameter(mm) | 230 |
Brake band width (mm) | 50 |
Water pump | |
Pump type | Horizontal single cylinder double acting |
Maximum displacement (motor)(L/min) | 95(77) |
Work pressure (Mpa) | 0.7 |
Cylinder diameter (mm) | 80 |
Piston stroke(mm) | 100 |
The maximum allowable pressure (Mpa) | 1.2 |
Oil pump | |
Oil pump type | Gear pump |
Nominal pressure (Mpa) | 12.5 |
Rated flow(ml/r) | 20 |
Rated speed(r/min) | 800-2500 |
Diesel engine or motor | |
Diesel engine | ZS1100 |
Rated power (KW) | 12.1 |
Rated speed (r/min) | 2200 |
Rated pressure(Mpa) | 11 |
Motor type | Y160M - 4 |
