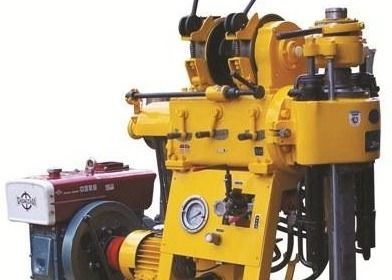

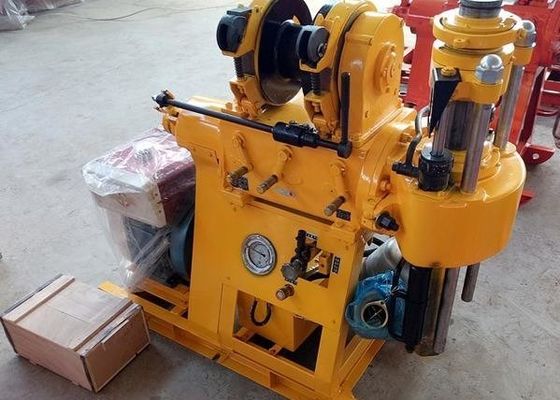

High Working Efficiency XY-1A 150Meters Core Drill Rig For Engineering

High Working Efficiency XY-1A 150Meters Core Drill Rig For Engineering
High Working Efficiency XY-1A 150Meters Core Drill Rig For Engineering
video play

Large Image :  High Working Efficiency XY-1A 150Meters Core Drill Rig For Engineering

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-1A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 2000set/year
Contact Now
Detailed Product Description
Type: High Working Efficiency Shitan XY-1 A 150 Meters Engineering Core Drill Rig Power Type: Diesel
Weight:: 480kg Usage: Water Well,railways, Core Drilling
Drilling Depth: 30-180m Dimension(L*W*H): 1620*970*1560mm
Drill Pipe Diameter: 42mm Borehole Dip Angle: 90°~75
Spindle Speed: 1010、790、470、295、140（r/min） Model: YBC-12/125
Rated Pressure: 12.5Mpa Model(diesel Engine）: 1105
Rated Power: 18KW WEIGHT: AROUND 600KG
Highlight:

150Meters Core Drill Rig

,

XY-1A Core Drill Rig

,

XY-1A Rig

High Working Efficiency Shitan XY-1 A 150 Meters Engineering Core Drill Rig





Introduction of Shitan XY-1 A 150 Meters Engineering Core Drill Rig



This rig  is light shallow hole drill rig with hydraulic automatic feeding mechanism.It is mainly applied to the exploration, geophysical exploration, road and building exploration and small water well drilling, etc. is suitable for drilling water well, soil exploration, geophysical exploration, road and building exploration and drilling blasting holes.



High Working Efficiency Shitan XY-1 A 150 Meters Engineering Core Drill Rig parameters



Drill Swivel Head

Drilling depth



 Max.150m

Spindle speed



 1010,790,470,295,140(r/min)

Hole diameter



 Max.150m Spindle stroke 450kmm
Drill rod diameter 42.50mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-12/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.25Mpa
Flow speed 8ml/r
Rated speed 1500r/min
Hoist Power(diesel)
Max. lifting capacity 15KN Model(diesel engine) 1105
Hoisting drum revolution

121,76,36(r/min)



 Rated power 18KW
Drum diameter 140mm Rated speed 2200r/m
WEIGHT AROUND 600KG
SIZE 1620*970*1560mm



XY-1 A 150 Meters Engineering Core Drill Rig main features



With hydraulic automatic feeding device, elevated drilling efficiency. 2. The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown. 3. Centralized handles, easy operation, safe and reliable. 4. The drilling machine, pump and diesel engine are installed on a common base frame in order to have a compact structure and occupy small field area. 5 lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.



OEM XY-1 A 150 Meters Engineering Core Drill Rig FAQ



1.. Are you factory or trading company?

We are direct factory ,we support OEM different kinds of drilling rigs.

2. What kind of projects you will work for?

Water well, Borehole, Exploration coring, Foundation Piling, Blast holes, Geothermal heat project or others?

3. Max drilling depth you want.

100m, 150m, 200m, 300m, or other depth.

4. The Min and Max borehole diameter you need.

Like Max 200mm, Min 75mm.

5. Geological condition of the working site if you know about it.

Soft ground like soil, mud, sand?

Hard ground like hard rocks?Or mixed?



Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order

High Working Efficiency XY-1A 150Meters Core Drill Rig For EngineeringHigh Working Efficiency XY-1A 150Meters Core Drill Rig For EngineeringHigh Working Efficiency XY-1A 150Meters Core Drill Rig For Engineering
