Product Details:
Payment & Shipping Terms:
|
| Type: | Horizontal Directional Drilling | Feature: | Multifunctional |
|---|---|---|---|
| Voltage: | 220/380 | Application: | Water Wells Drilling |
| Color: | Red /yellow | Name: | Core Drilling Machine |
| Drill Rod Diameter: | 42.50.89 | Drilling Depth: | 200m |
| Drilling Hole Inclination: | 90 °-75° | The Machine Weight: | 620kg |
| High Light: | 200m geological drilling rig machine,hdd geological drilling rig machine,water borewell machine 150m |
||

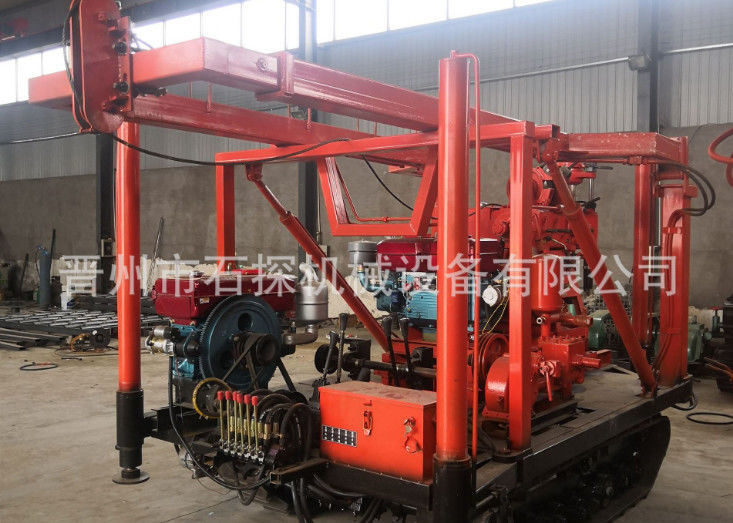

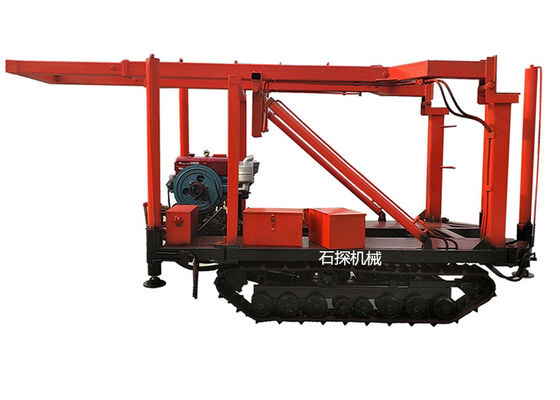

Reliable Price Well Drilling Rig For Geological Exploration GK200 Drilling Rig
Geological Drilling Rig MachineDescription:
GK-200 Drilling Rig with hydraulic feeding is widely utilized and featured in high power and hoisting load(2T), large torque transmission, etc. The rotating speed of vertical hexagonal spindle varies between 71r/min-825r/min. It is suited for the geotectonic survey, geological core drilling, small hole drillings for grout, blast and water well in railway, water coservancy, bridge, dam foundation and other constructions. Diamond drill vit, alloy drill bit and steel roller drill bit are available for drilling according to different geological structures.
Geological Drilling Rig Machine parameters:
Unity machine parameter | |
Drilling depth | 30-200m |
Drill rod diameter | 50 42mm |
End hole diameter | 75 46mm |
Max. open hole diameter | 220mm |
Drilling hole inclination | 90 °-75° |
The machine dimension | 2.1x0.9x1.3m |
The machine weight | 610kg |
Vertical shaft | |
Vertical spindle speed | 130 300 480 730 830 1045r/min |
Vertical spindle stroke | 450mm |
Hoist | |
The biggest single rope lift weight | 1600kg |
Single rope winding speed | 1.06 0.67 0.32m/s |
wire rope diameter | 13mm |
Wire rope capacity | 35m |
The brake width | 50mm |
The brake diameter | 230mm |
Mud pump | |
Type | Horizontal single cylinder double function |
Flow | 95 77L/min |
Maximum pressure | 2.5Mpa |
Working pressure | 1.2Mpa |
How about the features of it ?
1. With hydraulic automaatic feeding device, elevated drilling efficiency.
2. Large torque and drilling diameter.
3. With a spherial jaw holding mechanism and the rod replacement without breakdwn, high efficiency.
4. Compact structure, small volume, lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.
5. Adoping large drive pipe, double guide rod, increase the stability.
Our advantage
· More Than 15 Years Experiences in DRILLING
· 100% Brand New Machines
· No MOQ,1Sets Ok,Small Order Welcome.
· On Online Payment And Guarantee In alibaba Insure Your Money Safty
· Do The Drill Rigs As You Like !
· After Sales Service In 24/7
