90-75 Angle Portable Water Drilling Machine Xy-1A 100m

90-75 Angle Portable Water Drilling Machine Xy-1A 100m
90-75 Angle Portable Water Drilling Machine Xy-1A 100m
video play

Large Image :  90-75 Angle Portable Water Drilling Machine Xy-1A 100m

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-1A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 2000set/year
Contact Now
Detailed Product Description
Product Name: XY-1A Water Well Drilling Rig Power Type: Diesel
Usage: Water Well,railways, Core Drilling Drilling Depth: 100m
Dimension(L*W*H): 1640*1030*1440mm Drill Pipe Diameter: 42mm
Borehole Dip Angle: 90°~75 Spindle Speed: 142、285、570（r/min)
Model: YBC-12/125 Rated Pressure: 12.5Mpa
Model(diesel Engine）: 1105 Rated Power: 18KW
WEIGHT: AROUND500KG Spindle Stroke: 450kmm
Highlight:

100m Water Well Drilling Rig Machine

,

hydraulic water well drilling rig 100m

,

18KW hydraulic rotary rig

XY-1A Water Well Drilling Rig
90-75 Angle Portable Water Drilling Machine with 100m Depth Capacity
Product Specifications
Attribute Value
Product Name XY-1A Water Well Drilling Rig
Power Type Diesel
Usage Water well, railways, core drilling
Drilling depth 100m
Dimension (L×W×H) 1640×1030×1440mm
Drill pipe diameter 42mm
Borehole dip angle 90°~75°
Spindle speed 142, 285, 570 (r/min)
Model YBC-12/125
Rated pressure 12.5Mpa
Model (diesel engine) 1105
Rated power 18KW
Weight Approx. 500kg
Spindle stroke 450mm
Product Overview
The XY-1A Water Well Drilling Rig is a professional-grade drilling machine designed for efficient water well drilling operations. Featuring a robust diesel engine and versatile drilling capabilities, this rig delivers reliable performance in various terrains and conditions.
Key Features
  • High-performance diesel engine (Model 1105, 18KW)
  • Multiple spindle speeds (142, 285, 570 r/min)
  • Adjustable borehole angle (90°-75°)
  • 450mm spindle stroke for efficient drilling
  • Compact dimensions (1640×1030×1440mm) for portability
  • Durable construction with approximately 500kg weight
  • YBC-12/125 oil pump with 12.5Mpa rated pressure
Technical Parameters
Parameter Details
Rod Hole Diameter 42mm, 50mm
Spindle Stroke 450mm
Flow Speed 8ml/r
Drilling Diameter 150mm
Spindle Speed 1010, 790, 470, 295, 140 (r/min)
Size 1620×970×1560mm
Mud Pump Horizontal Reciprocating Single-acting Piston Pump
Power Source Electricity, Diesel
Rotary Speed 0-150rpm
Oil Pump YBC-12/125
Applications
The XY-1A is ideal for various drilling applications including water well construction, railway projects, and core drilling operations. Its versatile design and powerful performance make it suitable for challenging terrains and conditions.
Certification & Manufacturing
Manufactured in Jinzhou, Hebei Province, this drilling rig meets ISO and CE certification standards. Available with wooden box packaging, ready for shipment within 7 days after payment.
Support & Services
  • Installation and commissioning services
  • Product maintenance and repair
  • On-site training
  • 24/7 technical support
  • Remote troubleshooting
  • Spare parts supply
Packaging & Shipping
The drilling rig is securely packaged in hard corrugated boxes to prevent damage during transit. Shipping includes tracking and insurance, with costs included in the purchase price.
Frequently Asked Questions
What is the brand name of this drilling rig?
The brand name is Shitan.
What is the model number?
The model number is XY-1A.
Where is it manufactured?
Manufactured in Jinzhou, Hebei Province.
What certifications does it have?
Certified with ISO and CE standards.
What is the minimum order quantity?
Minimum order quantity is 1 set.

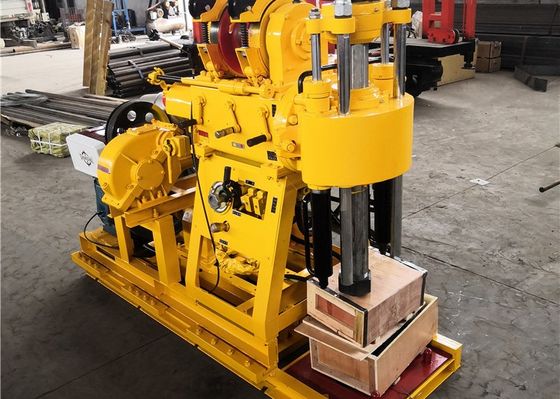

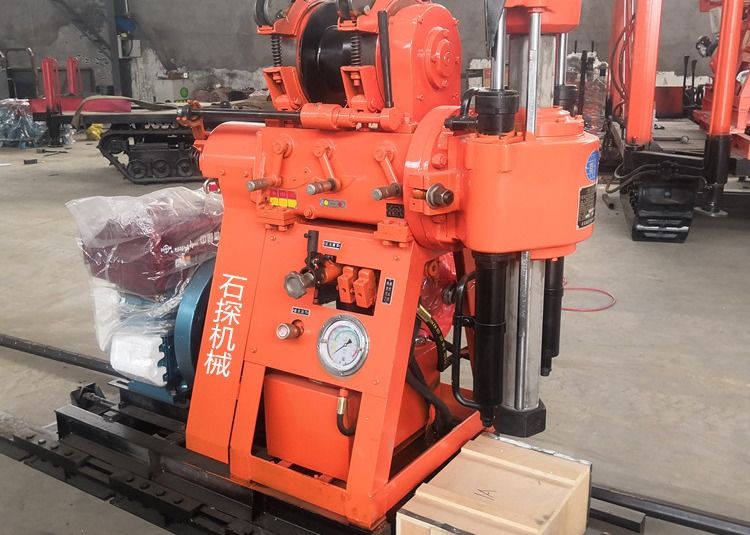

Product Images
90-75 Angle Portable Water Drilling Machine Xy-1A 100m 0 90-75 Angle Portable Water Drilling Machine Xy-1A 100m 1 90-75 Angle Portable Water Drilling Machine Xy-1A 100m 2 90-75 Angle Portable Water Drilling Machine Xy-1A 100m 3 90-75 Angle Portable Water Drilling Machine Xy-1A 100m 4 90-75 Angle Portable Water Drilling Machine Xy-1A 100m 5 90-75 Angle Portable Water Drilling Machine Xy-1A 100m 6 90-75 Angle Portable Water Drilling Machine Xy-1A 100m 7 90-75 Angle Portable Water Drilling Machine Xy-1A 100m 8
