GK200 Water Well Drilling Rig Customized OEM Design 200 Meters Geological Drilling Rig Machine

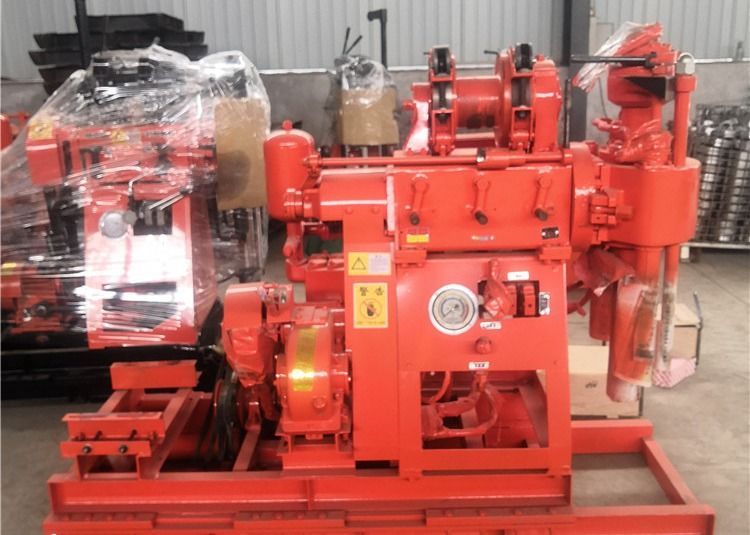

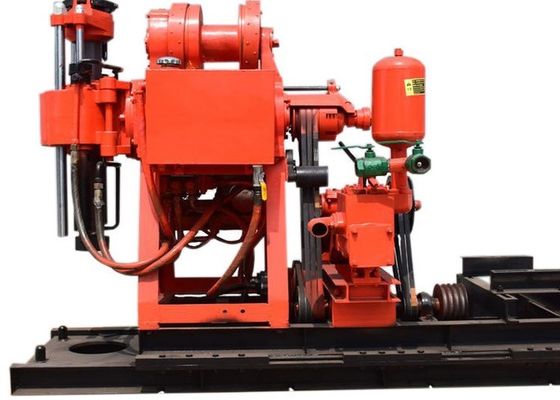

GK 200 Geological Drilling Rig Machine Introduction
GK 200 is a lightweight shallow hole rig which can be drilling depth max 200M,diamter 75-300mm,with oil pressure feed.
Mainly used for geological general investigation and exploration,road and tall buliding foundation exploration,kinds of hole in concrete
structure,river levees,subgrade grouting hole drilling and driect grouting,civil wells and earth temperature entral air-conditioner,etc.
GK 200 Geological Drilling Rig Machine Tech Parameter
| Gk200 |
| Drill |
Swivel Head |
|
Drilling Depth
|
Max.200m |
Spindle speed
|
(4-speed)
115 230 505 1010r/m
|
|
Hole diameter
|
Max.300m |
Spindle stroke |
450kmm |
| Drill rod diameter |
42mm |
Spindle pull-down |
Max.15KN |
| Angle range |
90-75 |
Spindle lifting capacity |
Max. 25KN |
| Oil pump |
Water pump |
| Model |
YBC-20/125 |
Model |
Horizontal reciprocating single-acting piston pump |
| Rated pressure |
12.5Mpa |
Working pressure |
Max. 1.2Mpa |
| Flow speed |
20ml/r |
|
|
| Rated speed |
2000r/min |
|
|
| Hoist |
Power(diesel) |
| Max. lifting capacity |
20KN |
Model(diesel engine |
ZS1115 |
| Hoisting drum revolution |
20.39.85.170r/m |
Rated power |
16.2KW |
| Drum diameter |
140mm |
Rated speed |
2200r/m |
| WEIGHT |
AROUND 600KG |
| SIZE |
1730*860*1360mm |
GK 200 Geological Drilling Rig Machine Features advantages
Equip hydraulic chuck,it can complete no-stopping rotating.
Big inner diameter,use big or middle hexagonal driving lever.
Light in weight,easy disassembling for transportation and applicable to working
conditions in plain and mountain areas.
Geological exploration
water and electricity engineering
road and railroad construction,
build engineering and big diameter water well construction project etc.
