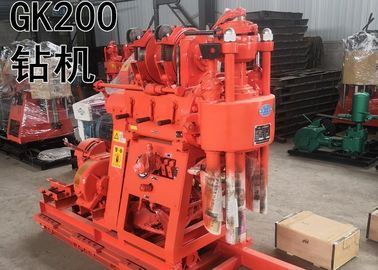

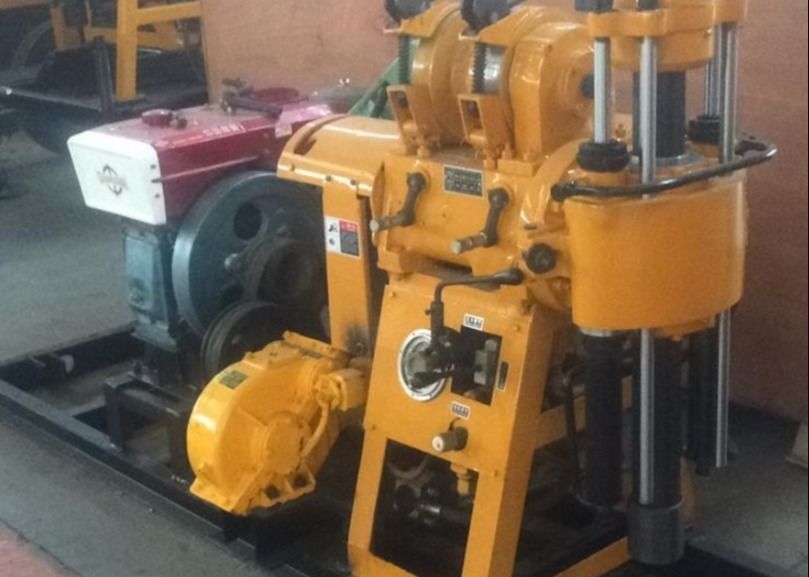

GK-200 Small Water Well Drilling Rig Hole Core Drilling Exploration Geological Machine
Geological Drilling Rig Machine brief introduction
Core Drilling Rig is mainly adapted to suit for engineering exploration, water well and foundation hole drilling, it can also can be used in mineral exploration with diamond bit or tungsten-carbide tipped bit. which is very suitable for Africa soil conditions with softy sandy and less rocky areas, OUR DRILLING RIGS exported HZ core water well drilling rig more than 3500 sets per year.
Geological Drilling Rig Machine parameter
| Drill Rig Specification |
| Drilling depth |
200m |
| Drilling Diameter |
75mm,91mm,110mm,130mm,150mm,300mm |
| Drilling rod diameter |
50mm |
| Drilling Angle |
90°-75° |
| Dimensions(L×W×H) |
1750×850×1300 (mm) |
| Weight |
1050kg/set |
| Swivel Head |
| Spindle Speed |
115, 230, 505, 1010r/min |
| Spindle stroke |
450mm |
| Spindle Dia. |
65mm (53x59 Kelly) |
| Upward displacement speed of drilling vertical spindle |
0.05m/s |
| Downward displacement speed of drilling vertical spindle |
0.067m/s |
| Spindle pull-down max |
15KN |
| Spindle lifting capacity max |
25KN |
| Vertical maximum output torque |
1.5KN.m |
| Hoist |
| Max. Lifting capacity(single rope) |
20KN.m |
| Lifting rotating speed |
20; 40; 90; 168r/min |
| Hoisting drum linear velocity (two levels) |
0.17; 0.35; 0.73; 1.5m/s |
| Durm Diameter |
140mm |
| Wire rope diameter |
9.3mm |
| Wire rope capability |
40m |
| Gear Pump |
| Model |
YBC-12/125 |
| Rated pressure |
12.5Mpa |
| Displacement |
20ml/r |
| Rated Speed |
2000r/min |
| Diesel Engine |
| Model |
ZS1115 |
| Rated Power |
16.2KW |
| Rated Speed |
2200r/min |
| Mud Pump |
| Model |
BW-160 |
| Displacement |
38, 58 ,90, 160 L/min |
| Pressure |
1.3 Mpa |
The characteristics of drilling rig:
1. With the hydraulic feeding mechanism, improve the drilling efficiency, reducing the labor intensity of workers.
2. The rig is equipped with a ball on a cassette holding mechanism and a six side rod, the rod can be replaced without shutdown, high work efficiency convenient operation, safe and reliable.
3. Furnished with hole bottom pressure gauge pressure indicator, and easy to master the status inside the hole.
4. The handle centered, convenient operation.
5. The drilling machine has the advantages of compact structure, small volume, light weight, convenient move.
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is Xiaoshang Village, Yingli Town, Jinzhou City, Hebei Province, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
