XY-1 mining water well core drilling rig geological exploration drilling rig
Applications of Geological Drilling Rig Machine

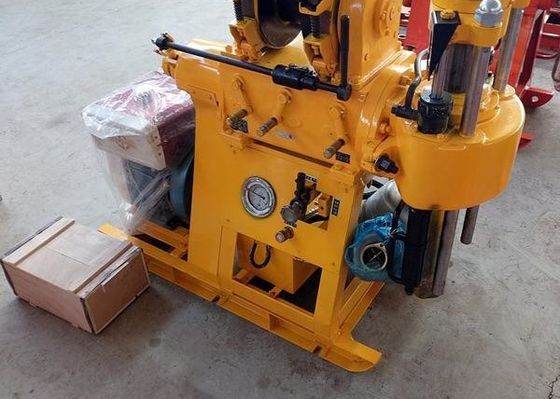

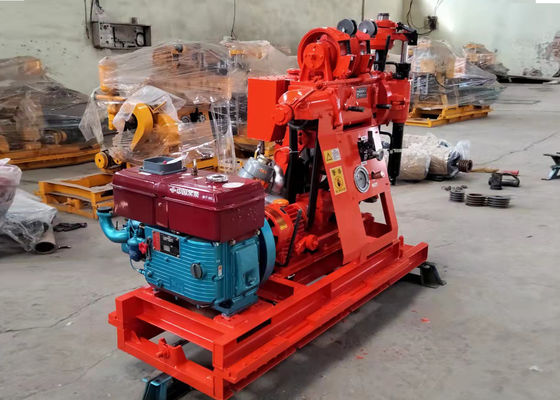

XY-1 rig is light shallow hole drill with hydraulic feed.Applicable to the exploration, geophysical exploration, road and building exploration and small water well drilling, etc.
1, having hydraulic automatic feeding mechanism, improve the drilling efficiency, reduce labor intensity.
2, using the ball cassette clamping device, and can realize non-stop down bar, convenient operation, safe and reliable.
3, handle, easy to operate.Equipped with a pressure gauge instructions at the bottom of the bore pressure, easy to master hole.
Geological Drilling Rig Machine technical parameter
| Drilling Rig |
| Drilling diameter(mm) |
110 |
| Drilling depth (m) |
100 |
| Drill pipe diameter (mm) |
42 |
| Drilling angle(°) |
90~75 |
| Equipment size(L * B * H) |
1640* 1030 * 1440 (mm) |
| Rig weight (except engine) |
500 |
| Gyrator |
| Spindle speed (four gear) (r/min) |
142,285,570 |
| Spindle travel(mm) |
450 |
| Spindle no-load lifting maximum moving speed(m/s) |
0.05 |
| Spindle no load drop maximum movement speed(m/s) |
0.067 |
| Spindle maximum feed pressure(KN) |
15 |
| Spindle maximum lifting force(KN) |
25 |
| Spindle maximum output torque(KN• m) |
0.5 |
| Winch assembly |
| Winch maximum lifting force (single rope)(KN) |
10 |
| Reel speed (r/min) |
55,110,220 |
| Reel circumferential speed(m/s) |
0.42,0.84 ,1.68 |
| Reel diameter(mm) |
145 |
| Wire rope diameter(mm) |
9.3 |
| Wire rope density (m) |
27 |
| Brake diameter(mm) |
230 |
| Brake band width (mm) |
50 |
| Water pump |
| Pump type |
Horizontal single cylinder double acting |
| Maximum displacement (motor)(L/min) |
95(77) |
| Work pressure (Mpa) |
0.7 |
| Cylinder diameter (mm) |
80 |
| Piston stroke(mm) |
100 |
| The maximum allowable pressure (Mpa) |
1.2 |
| Oil pump |
| Oil pump type |
Gear pump |
| Nominal pressure (Mpa) |
12.5 |
| Rated flow(ml/r) |
20 |
| Rated speed(r/min) |
800-2500 |
| Diesel engine or motor |
| Diesel engine |
ZS1100 |
| Rated power (KW) |
12.1 |
| Rated speed (r/min) |
2200 |
| Rated pressure(Mpa) |
11 |
| Motor type |
Y160M - 4 |
Geological Drilling Rig Machine for use
1. With hydraulic automatic feeding device, elevated drilling efficiency.
2. The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be
replaced without shutdown.
3. Centralized handles, easy operation, safe and reliable.
4. The drilling machine, pump and diesel engine are installed on a common base frame in order to
have a compact structure and occupy small field area. lightweight, high detachability, easy transportation and suitable for
the operations in plains or mountain areas..
Description of application effect
1.According to the different bottom of the choice of alloy, diamond and composite pieces of bits for drilling.
2, can drill 2-9 grade sandy clay and rock, etc.
