Spt GK200 meter water well Core Sample Drilling Machines Rig for Soil Test
Geological Drilling Rig Machine brief introduction

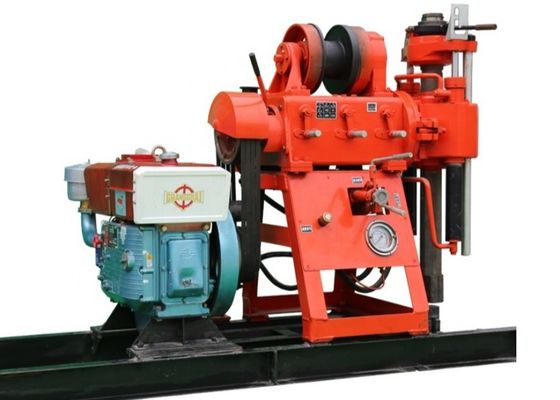

GK200 Drilling Rig with hydraulic feeding is widely utilized and featured in high power and hoisting load(2T), large torque transmission, etc. The rotating speed of vertical hexagonal spindle varies between 71r/min-825r/min. It is suited for the geotectonic survey, geological core drilling, small hole drillings for grout, blast and water well in railway, water coservancy, bridge, dam foundation and other constructions. Diamond drill vit, alloy drill bit and steel roller drill bit are available for drilling according to different geological structures..
Geological Drilling Rig Machine parameter
| Drill Rig Specification |
| Drilling depth |
200m |
| Drilling Diameter |
75mm,91mm,110mm,130mm,150mm,300mm |
| Drilling rod diameter |
50mm |
| Drilling Angle |
90°-75° |
| Dimensions(L×W×H) |
1750×850×1300 (mm) |
| Weight |
1050kg/set |
| Swivel Head |
| Spindle Speed |
115, 230, 505, 1010r/min |
| Spindle stroke |
450mm |
| Spindle Dia. |
65mm (53x59 Kelly) |
| Upward displacement speed of drilling vertical spindle |
0.05m/s |
| Downward displacement speed of drilling vertical spindle |
0.067m/s |
| Spindle pull-down max |
15KN |
| Spindle lifting capacity max |
25KN |
| Vertical maximum output torque |
1.5KN.m |
| Hoist |
| Max. Lifting capacity(single rope) |
20KN.m |
| Lifting rotating speed |
20; 40; 90; 168r/min |
| Hoisting drum linear velocity (two levels) |
0.17; 0.35; 0.73; 1.5m/s |
| Durm Diameter |
140mm |
| Wire rope diameter |
9.3mm |
| Wire rope capability |
40m |
| Gear Pump |
| Model |
YBC-12/125 |
| Rated pressure |
12.5Mpa |
| Displacement |
20ml/r |
| Rated Speed |
2000r/min |
| Diesel Engine |
| Model |
ZS1115 |
| Rated Power |
16.2KW |
| Rated Speed |
2200r/min |
| Mud Pump |
| Model |
BW-160 |
| Displacement |
38, 58 ,90, 160 L/min |
| Pressure |
1.3 Mpa |
How about the features of it ?
1. With hydraulic automaatic feeding device, elevated drilling efficiency.
2. Large torque and drilling diameter.
3. With a spherial jaw holding mechanism and the rod replacement without breakdwn, high efficiency.
4. Compact structure, small volume, lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.
5. Adoping large drive pipe, double guide rod, increase the stability.
Our advantage
· More Than 15 Years Experiences in DRILLING
· 100% Brand New Machines
· No MOQ,1Sets Ok,Small Order Welcome.
· After Sales Service In 24/7
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is Xiaoshang Village, Yingli Town, Jinzhou City, Hebei Province, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
