Product Details:
Payment & Shipping Terms:
|
| Type: | Core Drill Rig | Power Type: | Diesel |
|---|---|---|---|
| Weight:: | 480kg | Usage: | Water Well,railways, Core Drilling |
| Drilling Depth: | 30-180m | Dimension(L*W*H): | 1620*970*1560mm |
| Drill Pipe Diameter: | 42mm | Spindle Speed: | 1010、790、470、295、140（r/min） |
| Model: | YBC-12/125 | Rated Pressure: | 12.5Mpa |
| Model(diesel Engine）: | 1105 | Rated Power: | 18KW |
| WEIGHT: | AROUND 600KG | Warranty: | 1 Year |
| Drilling Angle: | 90 ~75° | Color: | Yellow Or As Your Rquest |
| High Light: | prospecting portable water well drilling machine,geological exploration portable water well drilling machine,prospecting water well drilling machine |
||

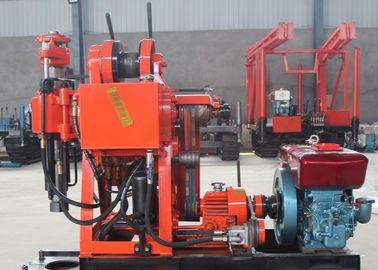

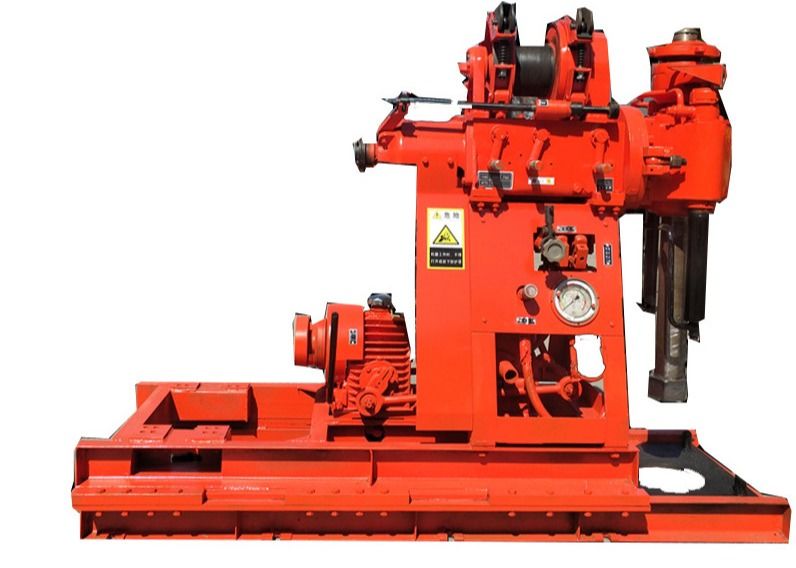

Geological Exploration And Prospecting Equipment Water Well Drilling Machine Rig
Introduction of Geological Drilling Rig Machine
1.Features of XY-130 hydraulic core drilling rig
Hoist installation holder, forming structure of double support wheel, can withstand strong impact.
Four groups of bearings are positioned in the vertical shaft box to ensure that the gyration is rigid enough to cope with the complex geological conditions such as the gravel layer and the pebble layer.
This drilling rig adopts the conical clutch, which has the characteristics of large transmission torque, convenient operation and no maintenance required.
Using 46*53 hexagon active drill rod, which has strong rigidity and large torque transmission
Water Well Drilling Rig parameters
| XY-1A Type | |||
| Drill | Swivel Head | ||
|
Drilling depth
|
Max.150m |
Spindle speed
|
1010,790,470,295,140(r/min) |
|
Hole diameter
|
Max.150m | Spindle stroke | 450kmm |
| Drill rod diameter | 42.50mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump | ||
| Model | YBC-12/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.25Mpa |
| Flow speed | 8ml/r | ||
| Rated speed | 1500r/min | ||
| Hoist | Power(diesel) | ||
| Max. lifting capacity | 15KN | Model(diesel engine) | 1105 |
| Hoisting drum revolution |
121,76,36(r/min)
|
Rated power | 18KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG | ||
| SIZE | 1620*970*1560mm | ||
Application:
1. With hydraulic automatic feeding device, elevated drilling efficiency.
2. The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.
3. Centralized handles, easy operation, safe and reliable.
4. The pump and diesel engine are installed on common base frame in order to have a compact structure and occupy small field area. lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.
