Product Details:
Payment & Shipping Terms:
|
| Model Number: | XY-1A | Product Name: | Diesel Engine 13.3 Kw XY-1A 150 Meters Depth Customized Geological Drilling Rig Machine |
|---|---|---|---|
| Power Type: | Diesel / 13.3kw | Drill Depth: | 150 Meters |
| Usage: | Water Well | Color: | Yellow,Yellow Or As Your Rquest |
| Application: | Geological Exploration | Drilling Angle: | 90 ~75° |
| Drilling Diameter: | Customized | Dimensions: | 1100*600*500mm, 600*650*2330mm, |
| High Light: | xy-1a Geological Drilling Rig Machine,13.3kw Geological Drilling Rig Machine,diesel engine Geological Drilling Rig Machine |
||
Factory Price XY-1 A 150 Meters Depth Customized Geological Drilling Rig Machine
XY-1A 150 Meters Hydraulic Drilling Rig Geological Drilling Rig Machine Information

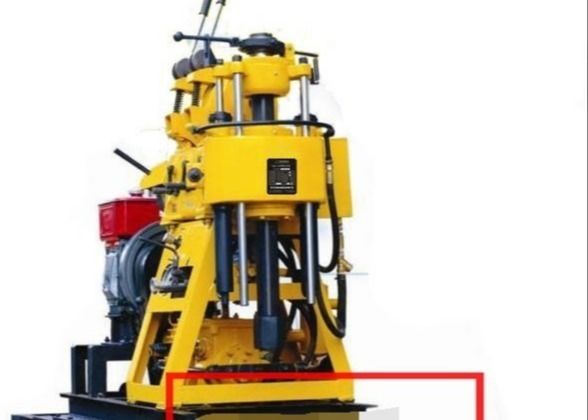

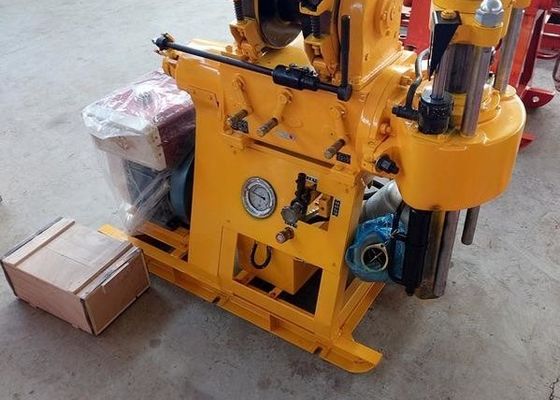

XY-1A is a portable and multi-purpose drilling rig for engineering investigationIt is mainly used for the general survey and engineering geological investigation of solid deposits, and various inspection holes of concrete structures. Diamond alloy and steel grain bits can be selected for drilling according to different strata.
Diesel Engine 13.3 kw XY-1A 150 Meters Depth Customized Geological Drilling Rig Machine Machine Technical Parameters:
| Basics | Drill depth (m) | 150 meters |
| Drill hole(mm) | 75-300 | |
| Final hole (mm) | 75 | |
| Rod diameter (mm) | 42/50 | |
| Drill angle (Degree) | 75-90 | |
| Size(LxWxH)mm | 1710x8500x1340 | |
| Weight (kg) | 500 | |
| Spindle | Spindle speed (r/min) | 1010/790/470/295/140 |
| Travel (mm) | 450 | |
| Max. Pressure (kN) | 15 | |
| Lifting force (kN) | 25 | |
| Hoist | Maxing lifting force (kN) | 15 |
| Drum speed (r/min) | 121/76/36 | |
| Drum diameter (mm) | 140 | |
| Steel rope diameter (mm) | 9.1-12 | |
| Steel rope capacity | 35 | |
| Brake diameter (mm) | 252 | |
| Brake band width (mm) | 50 | |
| Oil Pump | Model | YB-20/125 |
| Rated pressure (Mpa) | 12.5 | |
| Flow rate (ml/r) | 20 | |
| Rated speed (r/min) | 1500 | |
| Diesel engine | Model | ZS1105(18HP) |
| Nominal speed (r/min) | 2200 | |
| Power(Kw) | 13.3 |
XY-1A 150 Meters Hydraulic Drilling Rig Geological Drilling Rig Machine Advantages
1. Equipped with a pressure gauge at the bottom of the hole, indicating the pressure to facilitate the grasp of the situation in the hole.
2. The handle is convenient for centralized operation.
3. The drilling rig has a compact structure, small size, lightweight, strong decomposability, easy to move, suitable for working in plains or mountainous areas.
Diesel Engine 13.3 kw XY-1A 150 Meters Depth Customized Geological Drilling Rig Machine FAQ
Q1.What is the main function of our hydraulic tricycle tractor water well drilling rig?
Ans.: It has different models used for all kinds of hole diameter and depth, it is the best choice for drilling works.
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
Q4.What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for a new one.
And we provide videos for machine install and operation.
Q5. What is your terms of packing?
Ans.:Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q6. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q7.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have record s for your clients, and will prefer providing accessories to clients.
