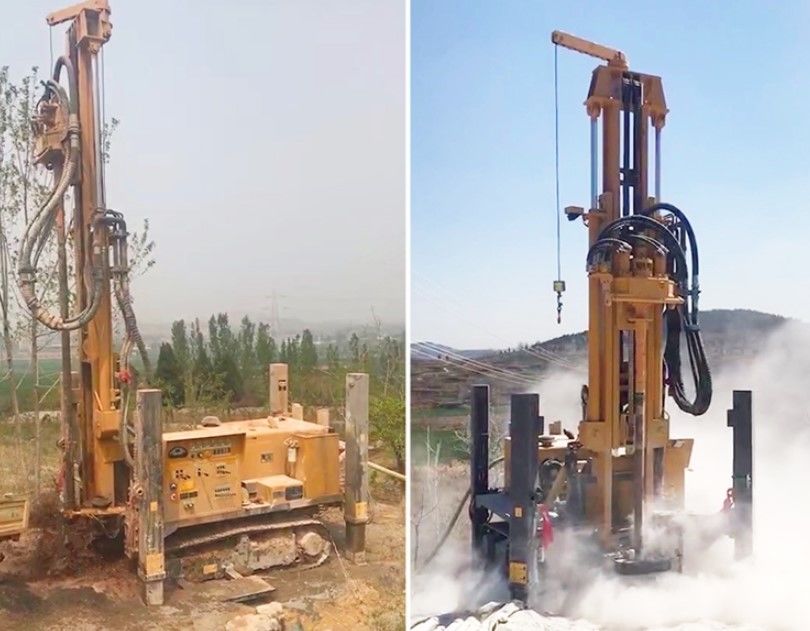

3.5mpa 350m Depth Borehole Crawler Mounted Drill Rig

Large Image : 3.5mpa 350m Depth Borehole Crawler Mounted Drill Rig

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO
Model Number:	ST350

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	A detailed discussion
Packaging Details:	Wooden case or naked
Delivery Time:	5-8days
Payment Terms:	L/C, D/P, D/P, T/T, Western Union
Supply Ability:	100000/yes

Contact Now

Detailed Product Description

Type:	Water Well Drill Rig	Application:	Drilling Well,hammer For Drills
Air Pressure:	1.25-3.5Mpa	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Warranty:	1 Year	Weight:	9800KG
Power:	92Kw	Usage:	Water Well
Hole Diameter:	140-305mm	Drill Rod Length:	1.5-6
Highlight:	borehole crawler mounted drill rig , 350m depth crawler mounted drill rig , 3.5Mpa crawler mounted drill rig

350M Depth Borehole Drilling Machine Water Earth Hole Drilling Machine

Introduction of ST350 pneumatic drilling rig

Our water well drilling rig is a light, efficient and multifunctional drilling and drilling equipment powered by diesel engines. It is mainly suitable for drilling wells, agricultural irrigation wells and other well holes. It is especially suitable for water intake engineering in mountain area and rock stratum. This series of drilling well rigs adopt new hydraulic technology, which is equipped with high torque hydraulic motor rotary and large cylinder diameter hydraulic cylinder advancement. All drilling rigs need to be used with air compressor.

If you would like more information on prices and more, please request a quote for free, details such as model and quantity. In fact, in addition to crawler drills, we have built many other types of drills, such as water well drilling rigs, DTH drilling rigs, core drilling rigs, rock drills and so on. If you need more information, please do not hesitate to contact us.

Parameters of 350 water well drilling rig

Technical Parameters of ST300 water well drilling rig
type	ST350
The weight	9.8T
Dimension	6m×2m×2.5m
The hole diameter	105-305mm
Drilling depth	350m
One-time advance length	6m
Walking speed	2.5KM/H
Climbing angles	30
Power	92KW
Using air pressure	1.7-3.3MPA
Air consumption	17-35
Drill pipe length	1.5m 2.0m 3.0m 6.0m
Drill pipe diameter	89mm,102mm,
Rig lifting force	20T
Swing speed	55-115rpm
Swing torque	6200-85000N.m
