Product Details:
Payment & Shipping Terms:
|
| Type: | Hydraulic Crawler Drilling Machine | Max. Drilling Depth: | 400 |
|---|---|---|---|
| Dimension(L*W*H): | 6m×2m×2.5m | Power Type: | 89 |
| Usage: | Water Well | Feature: | High Drilling Efficiency |
| Drilling Diameter: | 105-300mm | Rod Length: | 6M |
| Lifting Force: | 22T | Fast Lifting Speed: | 24m/min |
| Product Name: | Deep Bore Water Well Drilling Rig Crawler Mounted Drill Machine Kw180 | Color: | Yellow |
| Highlight: | 400 meter pneumatic drilling rig,crawler type pneumatic drilling rig,water well pneumatic crawler drill |
||

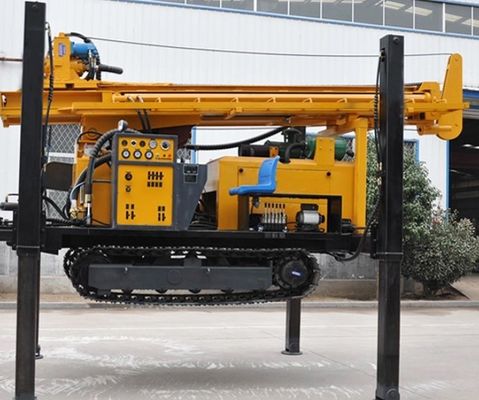

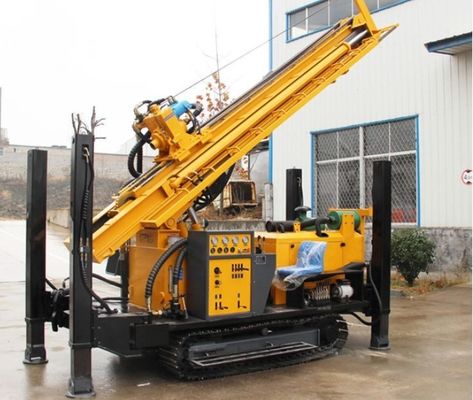

Introduction of crawler type water well drilling rig:
Series Water Well Drilling Rig is a light, efficient and versatile drilling equipment powered by diesel engine which is from China famous brand. It is mainly suitable for drilling wells, agricultural irrigation wells and other uses, especially for water extraction in mountainous and rock formations engineering.
In addition,this series of drilling rigs using new hydraulic technology which is equipped with large-bore hydraulic cylinder advancement and high-torque hydraulic motor rotation.
|
Product Name
|
Pneumatic Drilling Rig
|
|
Model
|
ST400
|
|
Drilling Diameter
|
105-300mm
|
|
Drilling Depth
|
400m
|
|
One-time Advance Length of the Drill
|
3000/6000mm
|
|
Walking Speed
|
6km/h
|
|
Climbing Ability
|
25
|
|
Min. Ground Clearance
|
300mm
|
|
Working Air Pressure
|
1.7-3.5Mpa
|
|
Air Consumption
|
17-35m3/min
|
|
Main Power
|
100KW/6Cylinder
|
|
Rotation
|
45-75rpm
|
|
Rotary Torque
|
9000-10000N.m
|
|
Dimension
|
6m×2m×2.5m |
|
Total Weight
|
10T
|
After sales service:
1.We can provide all-round technical guidance ff there is any problem about our machine;
2.7*24 hours multi-language professional after-sales service group
3.Construction solutions will be provided for different geological conditions.
4.All the accessories of that kind of machine can be provided for a long time.
FAQ
Q1.What is the main function of our well drill rig machine?
Ans.: It has different models used for water well drill rig machine,mine blast hole drill,underground drill project,etc
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q4. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories broken can be changed for a new one.And we provide videos for machine install and operation.
Q5. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q6. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q7.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.
Q8: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
