Product Details:
Payment & Shipping Terms:
|
| Certification: | ISO9001 | Product Name: | Portable Small Hydraulic Customized 50 Meters Cheap Price Geological Drilling Rig Machine |
|---|---|---|---|
| Type: | Rotary Drilling Rig | Power Type: | Diesel |
| Usage: | Water Well | Voltage: | 380V |
| Power(W): | 15KW | Weight: | 626KGS |
| Other Name: | Drill Rig | Drill Rod Diameter: | 42, 50，89 |
| Condition: | New | Equipment Size(L * B * H): | 1730 * 860 * 1360 (mm) |
| High Light: | 50meters portable well drilling rig,50meters portable well drilling machine,rotary diesel portable well drilling rig |
||

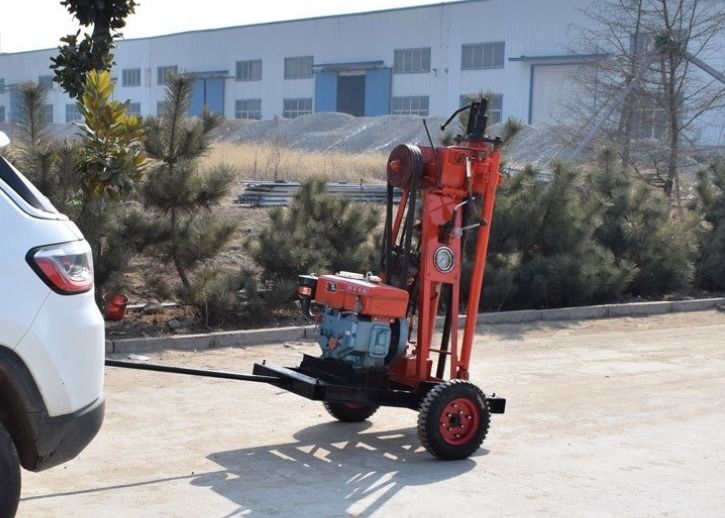

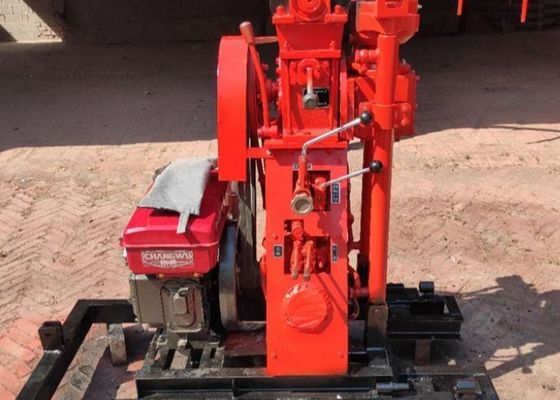

Portable Portable Small Hydraulic Customized 50 Meters Cheap Price Geological Drilling Rig Machine
Portable Small Hydraulic Customized 50 Meters Cheap Price Geological Drilling Rig Machine Geological Drilling Rig Machine Introduction
This is mainly used for geothermal drilling, farm irrigation , house yard, gardens and water well drilling, The water well drilling rig machine also can be used in small building piling, like farmhouse or factory
Portable Small Hydraulic Customized 50 Meters Cheap Price Geological Drilling Rig Machine Geological Drilling Rig Machine Parameter
| Drilling Depth | 50 m |
| Application | Geological core drilling |
| Drilling hole diameter | 50mm |
| End hole diameter | 50mm |
| Active drill rod | 42mm |
| Rod diameter | 42mm |
| Drill angle | 90°-75° |
| Matched power(diesel power) | 15kw/2200r/min |
| Dimension |
1180*680*1600mm |
Portable Small Hydraulic Customized 50 Meters Cheap Price Geological Drilling Rig Machine Geological Drilling Rig Machine Characteristic
It has oil pressure feeding mechanism to improve drilling efficiency,
The rotary torque is large and the hole diameter is large.
Large active drill pipe and double guide rod are adopted to increase stability.
The drilling rig is equipped with upper ball clip type holding mechanism and hexagonal active drill pipe,
It is equipped with a pressure gauge at the bottom of the hole to indicate the pressure, so as to grasp the situation in the hole.
The handle is centralized and easy to operate.
The drilling rig is compact in structure, small in volume and light in weight.
Portable Small Hydraulic Customized 50 Meters Cheap Price Geological Drilling Rig Machine Geological Drilling Rig Machine
How to choose a suitable drilling rig?
1. What will you do using drilling rig? electric diamond core drill machine well water drilling rig portable borehole water
---For water project, core sample, soil test, mineral prospect or others?
2. The depth you need?
---For water well, generally, 30-200m. For core sample, 30-600m, even more.
3. Any requirements to hole diameter?
---Within a certain range, the smaller diameter, the deeper depth. Mathematically, we call it inversely proportional.
4. Working land condition?
A. soil, sand, weathered land, etc. soft stratum.
B. soil, sand, soft and hard rock stratum, mixed one.
C. Mainly hard rock, like granite.mangalore drilling machine core cutting drilling machine nangali rate metal
Based on the above information, Our experienced engineers will help you recommend suitable machine and price. If you have special demands, please tell us ahead.
