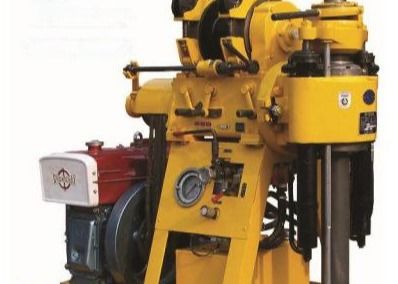

Customized OEM Light Weight XY-1A Portable Drill Rig

Customized OEM Light Weight XY-1A Portable Drill Rig
Customized OEM Light Weight XY-1A Portable Drill Rig Customized OEM Light Weight XY-1A Portable Drill Rig

Large Image :  Customized OEM Light Weight XY-1A Portable Drill Rig

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-1A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 2000set/year
Detailed Product Description
Product Name: Customized OEM Design Light Weight Portable XY-1 A Drilling Rig Machine Core Drill Rig For Geological Exploration Drilling Depth: 150 Meters
Power Type: Diesel Power Machine Weight: 480kg
Application: Water Well,railways, Core Drilling Dimension(L*W*H): 1620*970*1560mm
Drill Pipe Diameter: 42mm Borehole Dip Angle: 90°~75
Spindle Speed: 1010、790、470、295、140(r/min) Rated Pressure: 12.5Mpa
Model(diesel Engine): 1105 Rated Power: 18KW
WEIGHT: AROUND 600KG
High Light:

XY-1A Portable Drill Rig

,

Portable Drill Rig XY-1A

,

OEM Portable Drill Rig

Customized OEM Design Light Weight Portable XY-1 A Drilling Rig Machine Core Drill Rig For Geological Exploration





XY-1 A Portable Core Drill Rig  Introdution



The XY-1A drilling rig is a high-speed and portable hydraulically fed drilling rig.The rig is suitable for drilling water well, soil exploration, geophysical exploration, road and building exploration and drilling blasting holes.



XY-1 A Portable Core Drill Rig Tech Data



XY-1 A Portable Core Drill Rig
Drill Swivel Head

Drilling depth



Max.150m

Spindle speed



1010,790,470,295,140(r/min)

Hole diameter



Max.150m Spindle stroke 450kmm
Drill rod diameter 42.50mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-12/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.25Mpa
Flow speed 8ml/r
Rated speed 1500r/min
Hoist Power(diesel)
Max. lifting capacity 15KN Model(diesel engine) 1105
Hoisting drum revolution

121,76,36(r/min)



Rated power 18KW
Drum diameter 140mm Rated speed 2200r/m
WEIGHT AROUND 600KG
SIZE 1620*970*1560mm



XY-1 A Portable Core Drill Rig Advantage



1. With a hydraulic feed mechanism, improve drilling efficiency and reduce the labor intensity of workers.
2. The drilling rig is equipped with an upper ball clamping mechanism and a hexagonal active drill rod, which can be used to
reverse the rod without stopping the machine. The work efficiency is high, the operation is convenient, and it is safe and
reliable.
3. Equipped with a pressure gauge at the bottom of the hole, indicating the pressure to facilitate the grasp of the situation in the hole.
4. The handle is convenient for centralized operation.
5. The drilling rig has a compact structure, small size, lightweight, strong decomposability, easy to move, suitable for working in plains or mountainous areas.



FAQ Of XY-1 A Portable Core Drill Rig



Q1 :Are you factory or trading company?
A:We are direct factory
Q2 : If accept sample order?
A:Yes, we are welcome your sample order to testing our quality.
Q3 : What is the color of the machine?
A:Yes, we do OEM customized
Q4 : How to control the quality?
A: 1.Quality first. In order to guarantee high quality , we have strict inspection for all products and raw materials.
We have obtained certificate of ISO9001:2000 in 2004.
2.Good after –sale service system, we draw up the Quality Guarantee accordingly to the industrial standards combining field experience. Quality Guarantee.

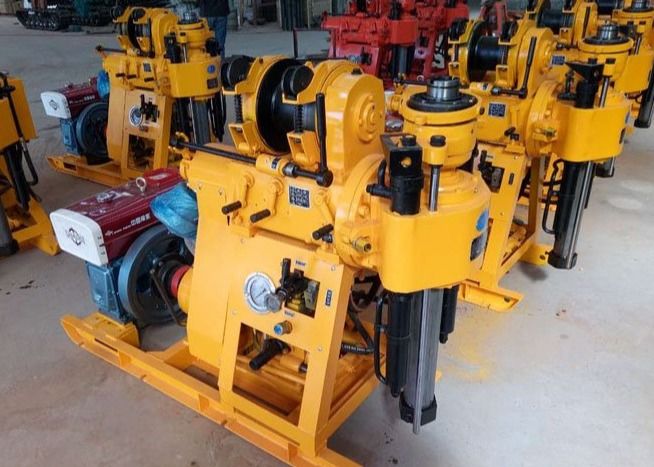

Customized OEM Light Weight XY-1A Portable Drill Rig 0Customized OEM Light Weight XY-1A Portable Drill Rig 1
