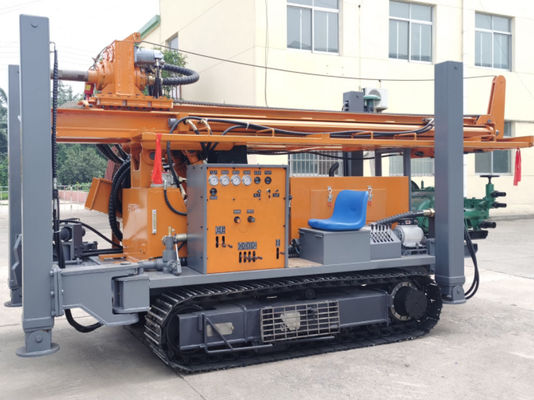

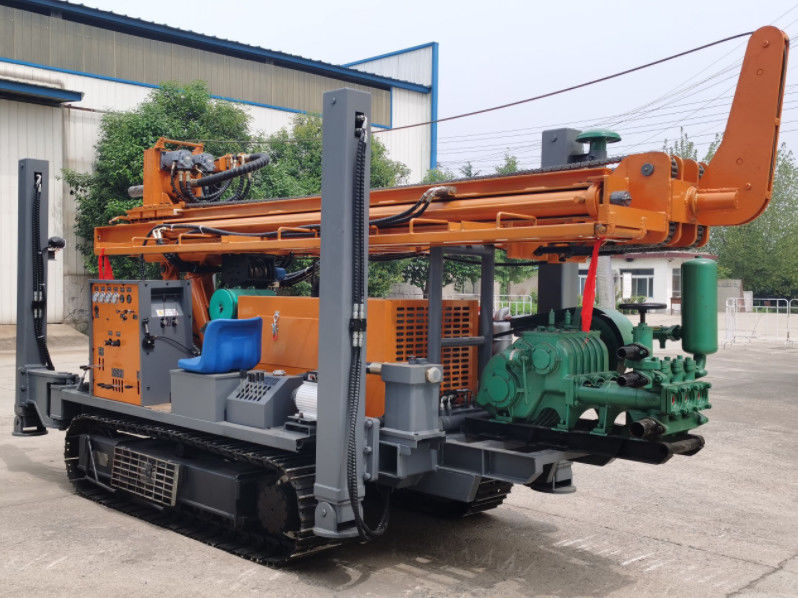

3.5Mpa Air Pressure Hydraulic Core Crawler Drilling Rig

3.5Mpa Air Pressure Hydraulic Core Crawler Drilling Rig
3.5Mpa Air Pressure Hydraulic Core Crawler Drilling Rig
video play

Large Image :  3.5Mpa Air Pressure Hydraulic Core Crawler Drilling Rig

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: ST-260
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Naked
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 1000year
Contact Now
Detailed Product Description
Type: Crawler Mounted Drill Rig Power Type: Diesel
Driving Way: Hydraulic Driving Usage: Geological Core Drilling
Weight:: 6 T Voltage: 380V
Model Number: ST-260 Name: Well Drilling Equipment
Air Pressure: 1.25-3.5Mpa Drilling Efficiency: 10-35m/h
Highlight:

Core Crawler Drilling Rig

,

Hydraulic Crawler Drilling Rig

,

3.5Mpa Air Pressure Crawler Drilling Rig

Crawler Mounted Hydraulic Core Drilling Rig Spt Borehole Drilling Rig Machine Price





Introduction of 260 Crawler Mounted Drill Rig



ST260 series of multi-purpose deep water well drilling rig is our independent research and development products. Adopting newest model & advanced hydro technology, our water well drilling machine are mainly used for well drilling in resource exploration hydrology wells, civil use water well, agriculture irrigation project, and can also be used for coal-mine gas exploitation, coalbed methane, shallow layer of shale gas, terrestrial heat, or salvage work.


Product parameters of 260 Crawler Mounted Drill Rig

The Weight(T)
6T
Dimensions(mm)

4m×1.7m×2.2m
The hole diameter(mm)
105-260mmmm
Drilling Depth(m)
260meters
Once-time advance length(mm)
3000/6000mm
Walking speed(Km/h)
2.5KM/H
Climbing angles(Max.)
30
Minimum clearance clearance(mm)

230
Using air pressure(Mpa)

1.25-3.5
Air consumption(m³/min)
23
Equipped capacitor(Kw)
92
Swing speed(rpm)
55-115
Swing torque(N.m)
 5900
Drill pipe diameter(mm)
Φ76 Φ89 Φ102
Drill pipe length(m)
1.5 2.0 3.0 6.0
Rig lifting force(T)
30



Performance Characteristics of 260 Crawler Mounted Drill Rig:

1. Full hydraulic control is convenient and flexible
2. Top drive type rotary feeding lifting
3. Multi-functional drilling
4. High efficiency
5. Low cost
6. High outrigger crawler type
7. Unique positive and negative axial pressure adjustment
8. Function of lubricator
9. Crawler mounted rig chassis
10. The second-hand machine has the highest value in the industry


Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order

3.5Mpa Air Pressure Hydraulic Core Crawler Drilling Rig3.5Mpa Air Pressure Hydraulic Core Crawler Drilling Rig3.5Mpa Air Pressure Hydraulic Core Crawler Drilling Rig
