Product Details:
Payment & Shipping Terms:
|
| Type: | Hydraulic Crawler Drilling Machine | Max. Drilling Depth: | 400 |
|---|---|---|---|
| Dimension(L*W*H): | 6m×2m×2.5m | Power Type: | 89 |
| Feature: | High Drilling Efficiency | Drilling Diameter: | 105-300mm |
| Rod Length: | 6M | Lifting Force: | 22T |
| Fast Lifting Speed: | 24m/min | Product Name: | Deep Bore Water Well Drilling Rig Crawler Mounted Drill Machine Kw180 |
| High Light: | Borehole Crawler Mounted Drill Rig,400m Deep Crawler Mounted Drill Rig,400m Deep crawler drilling rig |
||
|
Product Name
|
Pneumatic Drilling Rig
|
|
Model
|
ST400
|
|
Drilling Diameter
|
105-300mm
|
|
Drilling Depth
|
400m
|
|
One-time Advance Length of the Drill
|
3000/6000mm
|
|
Walking Speed
|
6km/h
|
|
Climbing Ability
|
25
|
|
Min. Ground Clearance
|
300mm
|
|
Working Air Pressure
|
1.7-3.5Mpa
|
|
Air Consumption
|
17-35m3/min
|
|
Main Power
|
100KW/6Cylinder
|
|
Rotation
|
45-75rpm
|
|
Rotary Torque
|
9000-10000N.m
|
|
Dimension
|
6m×2m×2.5m |
|
Total Weight
|
10T
|

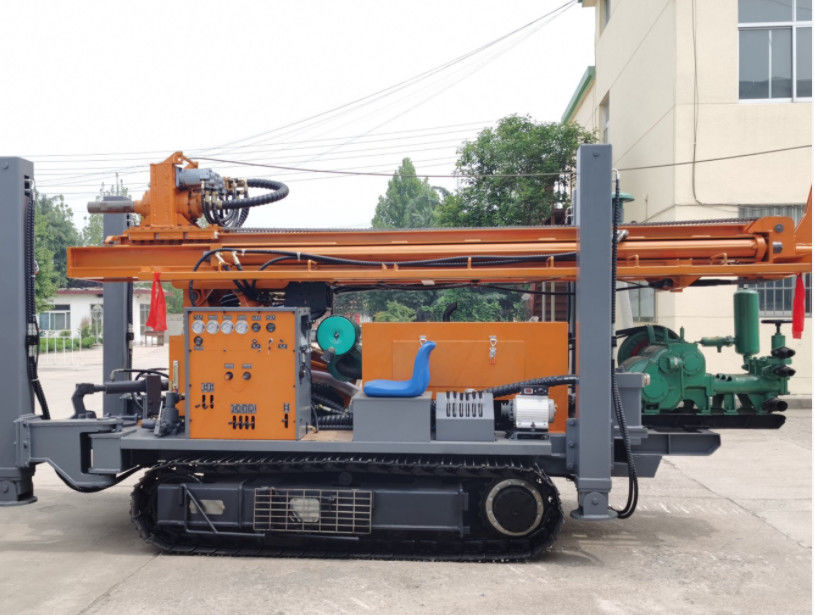

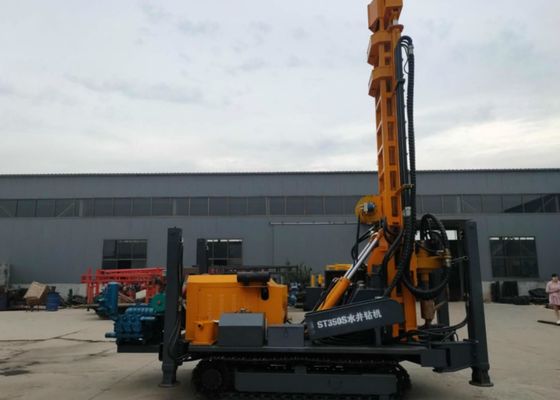

Crawler Mounted Drill Rig Feature:
1. Has free relaxed fluctuation system, hydraulic lifting device casing.
2. Large working range, strong terrain adaptability, and high efficiency.
3. The side swing mechanism is adopted to realize all-round drilling.
4. The frame part is made of high-strength steel, the overall structure is strong and durable.
5. The tubing drag chain can avoid the friction between the tubing and the guide rail, protect the tubing and increase the service life.
6. The power head part can adjust the rotation speed according to the softness of the rock layer, achieve a smooth high torque output.
FAQ
Q1.What is the main function of our well drill rig machine?
Ans.: It has different models used for water well drill rig machine,mine blast hole drill,underground drill project,etc
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q4. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories broken can be changed for a new one.And we provide videos for machine install and operation.
Q5. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q6. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q7.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.
Q8: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
