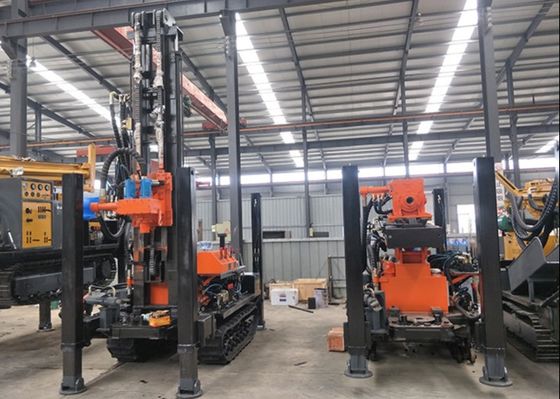

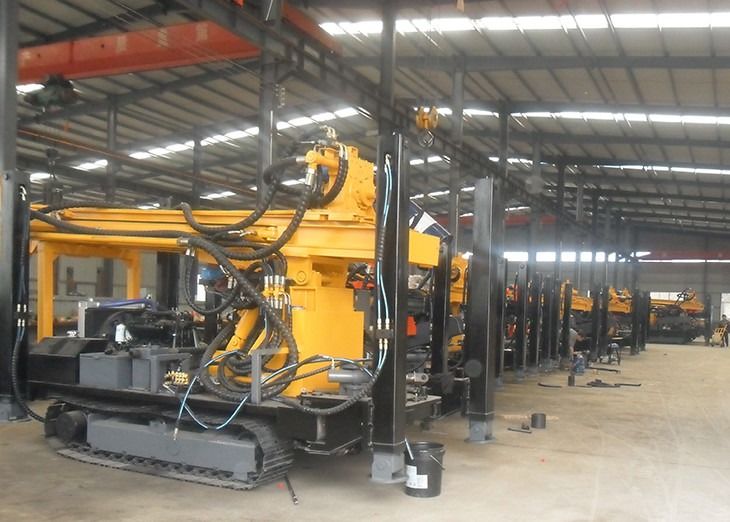

Diesel Power ST 180 Custom Hydraulic Crawler Mounted Drilling Rig Machines
ST 180 Crawler Mounted Drilling Rig Machines Breif introduction
It is mainly suitable for drilling water wells, agricultural irrigation wells, geothermal air conditioning holes and other well holes, especially suitable for water intake in mountainous areas and rock formations. engineering.
ST 180 Crawler Mounted Drilling Rig Machines Tech Data
|
ST 180m Water Well Drilling Rig Crawler Mounted Drilling Rig
|
| Item NO. |
ST-180 |
Air consumption(m³/min) |
17-31 |
| The Weight(T) |
4.5 |
Equipped capacitor(Kw) |
55 |
| Dimensions(mm) |
3800*1550*2350 |
Swing speed(rpm) |
45-65 |
| The hole diameter(mm) |
140-254 |
Swing torque(N.m)
|
3200-4600 |
| Drilling Depth(m) |
180 |
Drill pipe diameter(mm) |
76 89 |
| Once-time advance length(m) |
3.3 |
Drill pipe length(m) |
1.5 2.0 3.0 |
| Walking speed(Km/h) |
2.5 |
Rig lifting force(T) |
10 |
| Climbing angles(Max.) |
30 |
sopporting Power |
29m3/min 23BAR AIR COMPRESSOR |
| Using air pressure(Mpa) |
1.7-2.5 |
|
|
ST 180 Crawler Mounted Drilling Rig Machines Features
1. Walking device: Walking motor is equipped with gear box, durable and long life;
2. Hydraulic oil pump: parallel gearbox design with separate oil pump units, sufficient power supply and reasonable distribution, unique hydraulic system design, simple maintenance and low cost;
3. Power head device:gearbox is cast in one piece, dual motors provide power, large torque, durable, and low maintenance cost;
4. Drilling rig chassis:professional excavator chassis, durable, large load-bearing, wide chain plate, little damage to hard roads;
5. Lifting force: Adopting the designed composite boom, the boom is small in size, long in stroke, double
cylinder lifting, and the lifting tonnage is large;
Our Service of ST 180 Crawler Mounted Drilling Rig Machines
Q1. What is the main function of our drill rig?
A1: It has different models used for water well drill rig,mine blast hole drill,underground drill project,,etc
Q2. What is your terms of payment?
A2: T/T 30% as deposit, and 70% before delivery. We'll show you the videos as your requirement.
Q3. How about your delivery time?
A3: it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q4. What is the warranty of our machine?
A4:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories
broken can be changed for a new one.We provide videos for machine installation & operation.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
