Soil Test Geological Exploration Core Drilling Rig Water Well Drilling Rig Machine

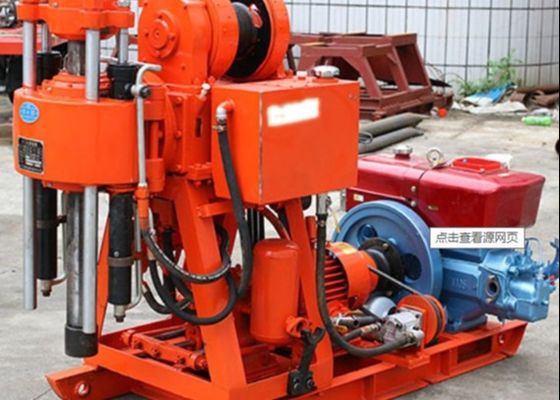

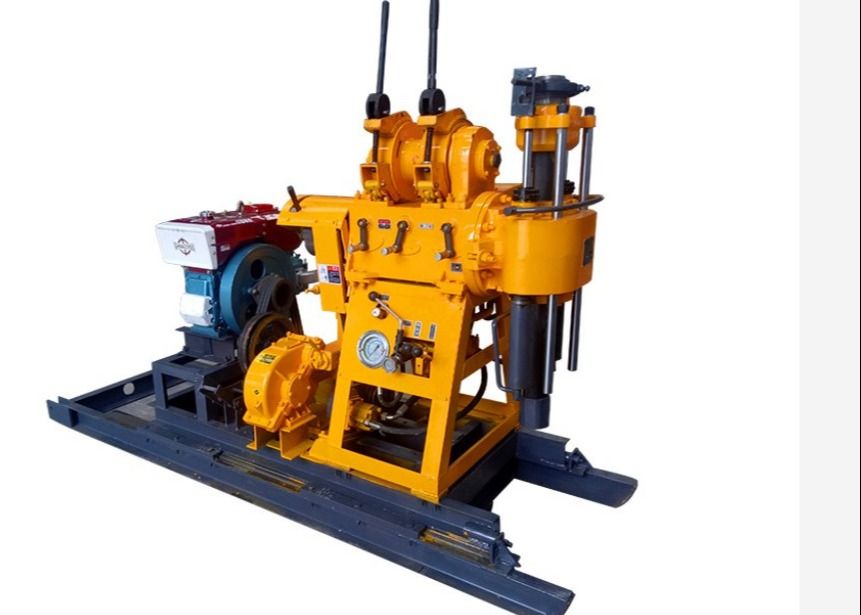

Hydraulic Portable 150m Soil Test Drilling Machine
The core drilling rig is a wide range of lightweight core drilling rigs that are small, lightweight and easy to handle. Suitable for geological survey of railways, water conservancy, bridges, foundations and other buildings, geological core drilling, small grouting holes, blasting holes, water well drilling. According to the formation, diamonds, composite sheets and alloy drill bits are selected for drilling.
Hydraulic Portable 150m Soil Test Drilling Machine Specification
| Drilling depth |
100m |
| Maximum borehole caliber |
300mm |
| Minimum borehole caliber |
75mm |
| Diameter of Drill pipe |
42, 50, 60mm |
| Drilling angle |
90°~75° |
| Weight(Not include power) |
760kg |
| Unity machine dimension |
2750*950*1600mm |
Soil Test Drilling Machine Product Features
1. Good stability and high reliability.
2. Multilevel positive and reverse rotate speed.
3. The complete hydraulic chuck and vertical spindle, hydraulic chuck on top and manual chuck at the bottom
4. Steel Skid mounted with Hydraulic retraction system
5. Convenient to transport with the small volume and light weight.
6. Perfect frame's rigidity, low center of gravity and good stability.
Soil Test Drilling Machine Product Application
It is widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc.
why choose us?
1.keeping bracket is installed on the hoist to form a double wheel support structure, can withstand strong blow.
2.Vertical box four couple of bearings positioned to ensure the rotary machine has a sufficient rigid response to gravel layer ,the complex geological conditions.
3.This machine adopts national patent technology taper clutch and is with charactristics of strong transmission torque,easy to operation,free to maintenance.
4.Using 46x51 active drill rods which is with high rigitidy, strong delivery torque.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
