Rock Core 100m Soil Investigation Drilling bore pile Machine

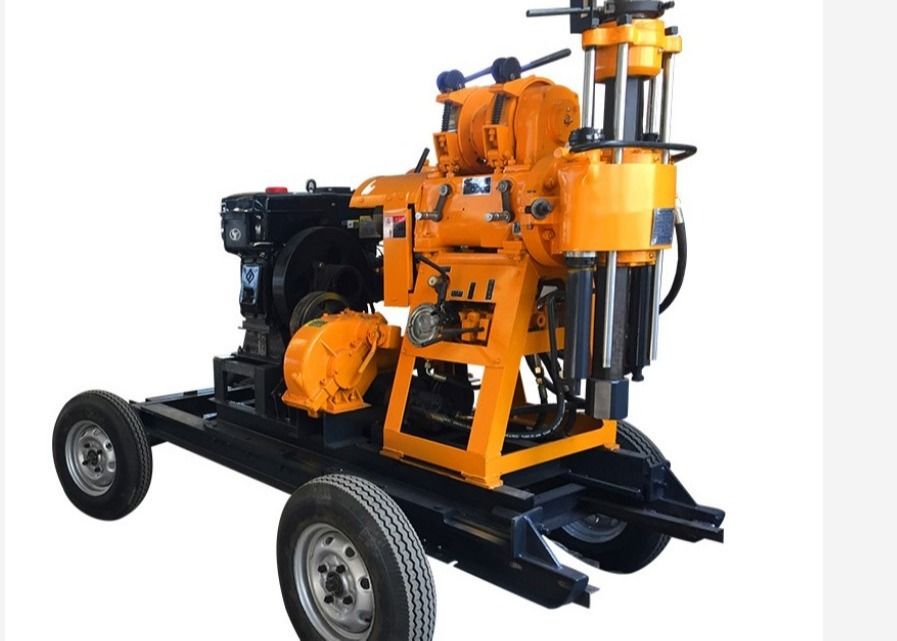

Large Image : Rock Core 100m Soil Investigation Drilling bore pile Machine

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	XY-1

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard Export package
Delivery Time:	Within 7-12 days
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	2000set/year

Contact Now

Detailed Product Description

Type:	Geological Drilling Rig Machine	Power Type:	Diesel
Usage:	Water Well,railways, Core Drilling	Drilling Depth:	100m
Dimension(LWH):	164010301440mm	Drill Pipe Diameter:	42mm
Borehole Dip Angle:	90°~75	Rated Pressure:	12.5Mpa
Model(diesel Engine）:	1105	Rated Power:	18KW
Color:	Yellow Or As Your Rquest	Drilling Angle:	90 ~75°
Highlight:	ODM soil investigation drilling machine , 100m soil investigation drilling machine , 100m portable soil drilling machine

Rock Core 100m Soil Investigation Drilling Bore Pile Machine

Product Specifications

Attribute	Value
Type	Geological Drilling Rig Machine
Power Type	Diesel
Usage	Water well, railways, core drilling
Drilling depth	100m
Dimension (L×W×H)	1640×1030×1440mm
Drill pipe diameter	42mm
Borehole dip angle	90°~75°
Rated pressure	12.5Mpa
Model (diesel engine)	1105
Rated power	18KW
Color	Yellow or as requested

Product Description

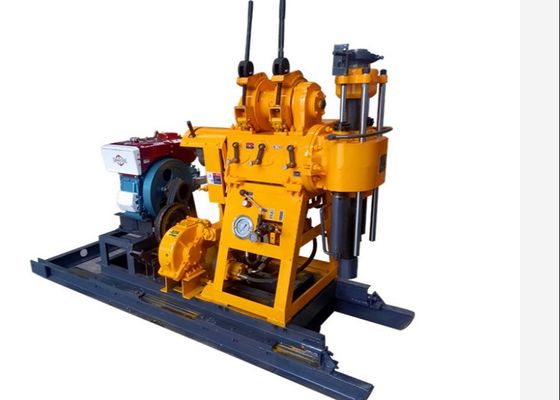

The XY-1 series hydraulic core drilling rig is designed for geological investigation and exploration, including concrete structure analysis, building foundation exploration, river levee assessment, subgrade grouting hole drilling, civil wells, and earth temperature central air conditioning systems. With a 100m drilling capacity and lightweight design, this rig is suitable for various environments including plains and valleys. The hydraulic power system and handle rack ensure high operational efficiency.

Technical Parameters

Component	Specification
Drilling diameter	110mm
Drilling depth	100m
Drill pipe diameter	42mm
Drilling angle	90°~75°
Equipment size (L×W×H)	1640×1030×1440mm
Rig weight (excluding engine)	500kg
Spindle speed (four gear)	142, 285, 570 r/min
Spindle travel	450mm
Spindle maximum feed pressure	15KN
Spindle maximum lifting force	25KN
Spindle maximum output torque	0.5KN•m

Key Features

Hydraulic automatic feed mechanism improves drilling efficiency and reduces labor intensity
Ball clamp clamping mechanism enables non-stop rod inversion for safe, stable operation
Pressure gauge at the bottom of the hole for precise monitoring
Compact design with centralized handle for easy operation in confined spaces
Lightweight and decomposable structure for easy transportation and reassembly

Mountainous Area Advantages
