High Speed XY -1 100 Meters Geological Drilling Rig With 18 HP Diesel Engine Power

Large Image : High Speed XY -1 100 Meters Geological Drilling Rig With 18 HP Diesel Engine Power

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	XY-1

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	Within 7-12 days
Payment Terms:	T/T, Western Union
Supply Ability:	5000 units

Contact Now

Detailed Product Description

Product Name:	XY -1 Geological Drilling Rig Machine	Drill Depth:	100 Meters
Power Type:	Diesel / 13.3kw	Model Number:	XY-1
Usage:	Water Well	Color:	Yellow,Yellow Or As Your Rquest
Application:	Geological Exploration	Drilling Angle:	90 ~75°
Drilling Diameter:	Customized	Dimensions:	1100600500mm, 6006502330mm,
Highlight:	XY -1 Geological Drilling Rig , 100 Meters Geological Drilling Rig , Geological Drilling Rig Customized

High Speed Drilling Rigs XY -1 100 Meters Customized Geological Drilling Rig Machine

XY-1 Geological Drilling Rig Machine Information

XY-1 is a portable and multi-purpose drilling rig for engineering investigationIt is mainly used for the general survey and engineering geological investigation of solid deposits, and various inspection holes of concrete structures. It is a top-performing civil drilling rig that is essential for any soil testing and exploration project. Made with high-quality steel and powered by a reliable diesel engine, it is a durable and efficient tool for collecting accurate soil samples

XY-1 Geological Drilling Rig Machine Technical Parameters:

Basics	Drill depth (m)	100
	Drill hole(mm)	75-100
	Final hole (mm)	75
	Rod diameter (mm)	42/50
	Drill angle (Degree)	75-90
	Size(LxWxH)mm	1710x8500x1340
	Weight (kg)	500
Spindle	Spindle speed (r/min)	1010/790/470/295/140
	Travel (mm)	450
	Max. Pressure (kN)	15
	Lifting force (kN)	25
Hoist	Maxing lifting force (kN)	15
	Drum speed (r/min)	121/76/36
	Drum diameter (mm)	140
	Steel rope diameter (mm)	9.1-12
	Steel rope capacity	35
	Brake diameter (mm)	252
	Brake band width (mm)	50
Oil Pump	Model	YB-20/125
	Rated pressure (Mpa)	12.5
	Flow rate (ml/r)	20
	Rated speed (r/min)	1500
Diesel engine	Model	ZS1105(18HP)
	Nominal speed (r/min)	2200
	Power(Kw)	13.3

XY-1 Geological Drilling Rig Machine Applications

1. With a hydraulic feed mechanism, improve drilling efficiency and reduce the labor intensity of workers.
2. The drilling rig is equipped with an upper ball clamping mechanism and a hexagonal active drill rod, which can be used to
reverse the rod without stopping the machine.
3. Equipped with a pressure gauge at the bottom of the hole, indicating the pressure to facilitate the grasp of the situation in the hole.
4. The handle is convenient for centralized operation.
5. The drilling rig has a compact structure, small size, lightweight, strong decomposability, easy to move, suitable for working in plains or mountainous areas.

XY-1 Geological Drilling Rig Machine FAQ

Q1.How to choose a drilling rig?

Ans.: It has different models used for all kinds of hole diameter and depth, it is the best choice for drilling works.
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
Q4.What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for a new one.

And we provide videos for machine install and operation.

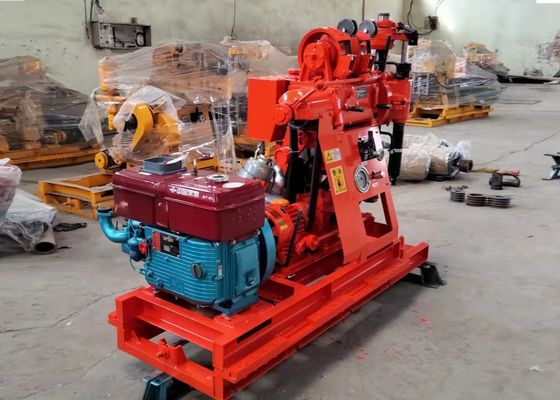

High Speed XY -1 100 Meters Geological Drilling Rig With 18 HP Diesel Engine Power 0

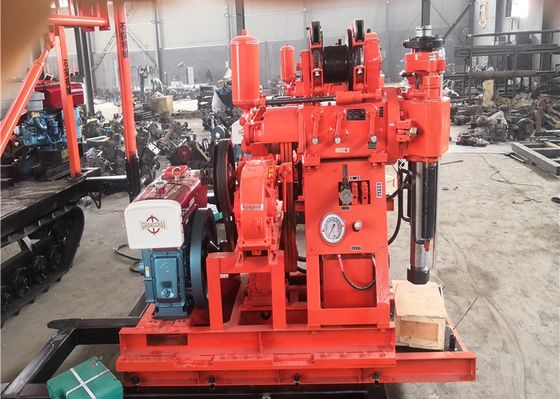

High Speed XY -1 100 Meters Geological Drilling Rig With 18 HP Diesel Engine Power 7

High Speed XY -1 100 Meters Geological Drilling Rig With 18 HP Diesel Engine Power 8
