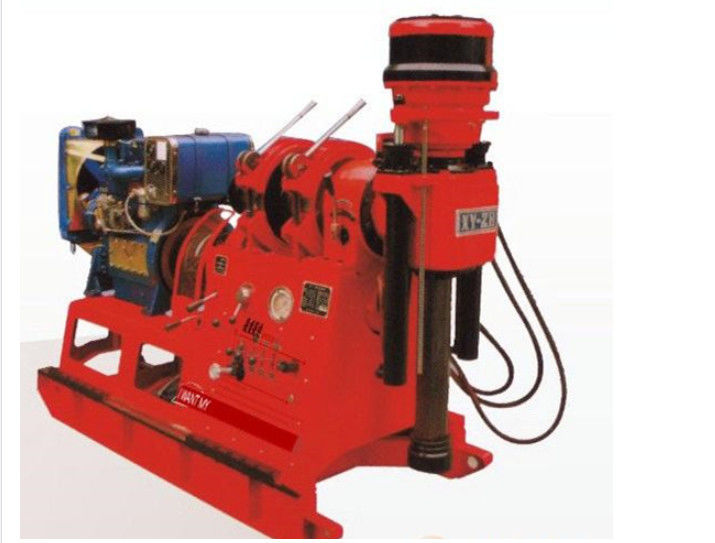

Rotary Oil And Electric Power 300m Geological Drilling Rig

Rotary Oil And Electric Power 300m Geological Drilling Rig
Rotary Oil And Electric Power 300m Geological Drilling Rig Rotary Oil And Electric Power 300m Geological Drilling Rig

Large Image :  Rotary Oil And Electric Power 300m Geological Drilling Rig

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Model Number: XY-2B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Certification: ISO9001 Condition: New
Type: Rotary Drilling Rig Power Type: Diesel
Usage: Water Well Voltage: 380V
Power(W): 15KW Weight: 1200KGS
High Light:

300m geological drilling rig

,

OEM Geological Drilling Rig

,

300M rotary drilling machine

300M Core Drilling Rigs / Hydraulic Exploration Water Well Drilling Machine / Oil And Electric Power Drilling





Geological Drilling Rig Machine Product Description:



xy-2 is a core drilling rig for middle and shallow hole. It applies not only to alloy and diamond core drilling with different calibres but also can be used for geological prospecting works, drilling of fluid mineral in superficial layer and shot holes and ventilation holes drilling, drilling on hydrology, water wells and big calibres. It has been widely used on areas such as road and railway construction, water resources and hydropower and architecture.



Geological Drilling Rig Machine Technical Parameters:



Drilling depth (m)



Φ73 rod 100
Φ60 rod 320
Φ50 rod 380
Φ42 rod 530
Spindle speed (r/min) Forward 57;99;157;217;270;470;742;1024
Reverse 45;212
Max torque (Nm) 3330
Angle renge 0-90°
Spindle max pull force(KN) 60
Spindle stroke (mm) 560
Hoist max lift capacity with single rope (KN) 30
Spindle inner dia (mm) Φ96
Oil pump CBK1020/8 twin-gear pump
Power unit Electric motor Y180L-4,22kW
Diesel engine 395K2,19.85kW
Inner dia of spindle (mm) 2220×900×1880
Drill weight(excluding power)(kg) 1200



Geological Drilling Rig Machine Main Features:



1. Very powerful at soil, sand, hard rock, etc. land condition.

2. Three kinds drill bits (three-wing bit, alloy bit and diamond bit) available for your choice, which can drill both soft and hard ground, especially diamond drill bit effective in drilling hard rocks.

3. Hydraulic control system for greatly improving the working efficiency, saving labor force.

4. Mounted wheel or trailer, can be hauled easily by car or tractor, convenient to transport.

5. Power can be diesel engine or electric motor, as per your request.



FAQ


Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.

Q2: What the exactly address of your factory?
A2: Our company is Xiaoshang Village, Yingli Town, Jinzhou City, Hebei Province, China

Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.

Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.

Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.

Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.

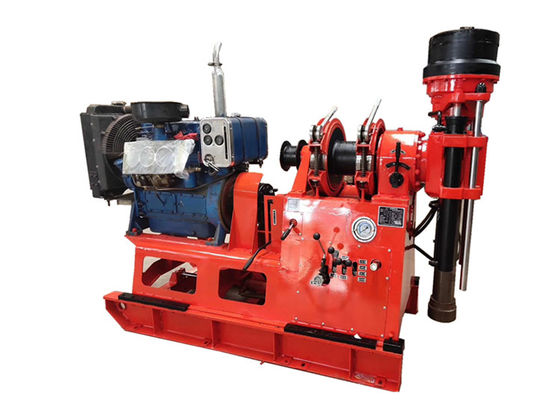

Rotary Oil And Electric Power 300m Geological Drilling Rig 0Rotary Oil And Electric Power 300m Geological Drilling Rig 1
