Hot Selling High Speed GK200 Hydraulic Drilling Equipment Soil Test Drilling Machine

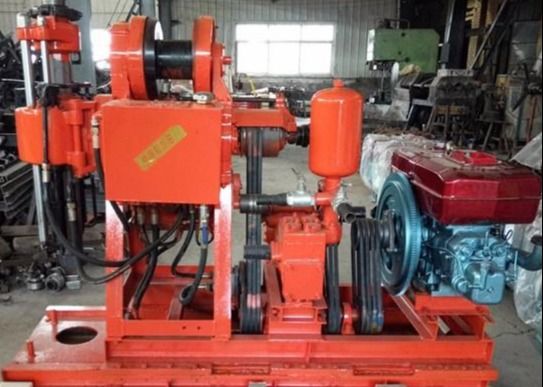

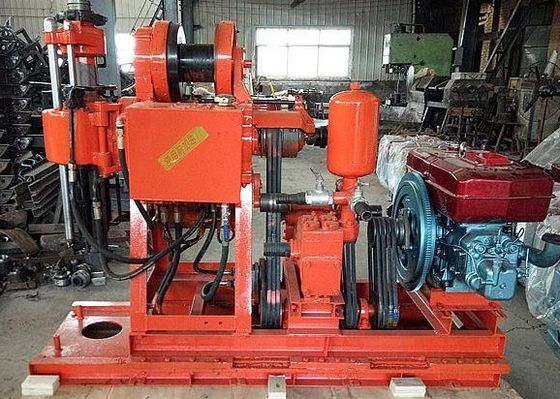

GK200 Soil Test Drilling Machine Introduction:
It is a light weight, efficient,muti-function device of surface drill rig, which is mainly applied to drill water wells, agricultural irrigation wells, geothermal air conditioners hole and other uses of the well hole . This drilling rig can drill in the different stratum.This rig adopts the new type of hydraulic technology,matching a high torque hydraulic rotary motor and big diameter hydraulic cylinder propel,famous factory engine provide the powered for hydraulic system,two stage air filter and air compressor inlet design,prolong the service life of diesel energy.
GK200 Soil Test Drilling Machine Parameters:
| Drilling depth |
200m |
| Max open hole caliber |
300mm |
| End hole caliber |
75mm |
| Drilling Rod diameter |
60mm |
| Drilling angle |
90°~75° |
| Drill rig moving stroke |
300mm |
| Power |
Diesel engine 22HP |
| Spindle speed |
64 128 287 557 r/min |
| Spindle stroke |
450mm |
| Max.Single line lifting capacity |
2400kg |
| Max.Single line lifting speed |
0.41 0.82 1.64m/s |
| Wirerope caliber |
13mm |
| Mud pump |
Diesel 170L/min |
| Work pressure |
1.5Mpa |
| Water inlet pipe diameter |
40mm |
| Water outlet pipe diameter |
30mm |
GK200 Soil Test Drilling Machine Advantages:
1. With oil pressure automatic feeding mechanism, high drilling efficiency.
2. Centralized handle, convenient operation, safe and reliable.
3. The drilling rig, shifting base and diesel engine (or motor) are all installed on the same underframe, occupying a small space.
4. Light weight, strong decomposition, easy to move, suitable for plain and mountain work.
GK200 Soil Test Drilling Machine Quality Control:
1.Acceptance equipment together with you.
2.Help you to make the method statement and the details of the process.
3..Guarantee for a year.
4.Quality problem,we will send you the accessories.
5.Free repair whole using life(without the freight and accessories charge).
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
