Geological Exploration Borehole Water Well Drilling Rig/Geotechnical Drilling Rig Core Drill Machine
Soil Test Drilling Machine Machine for Geological Exploration

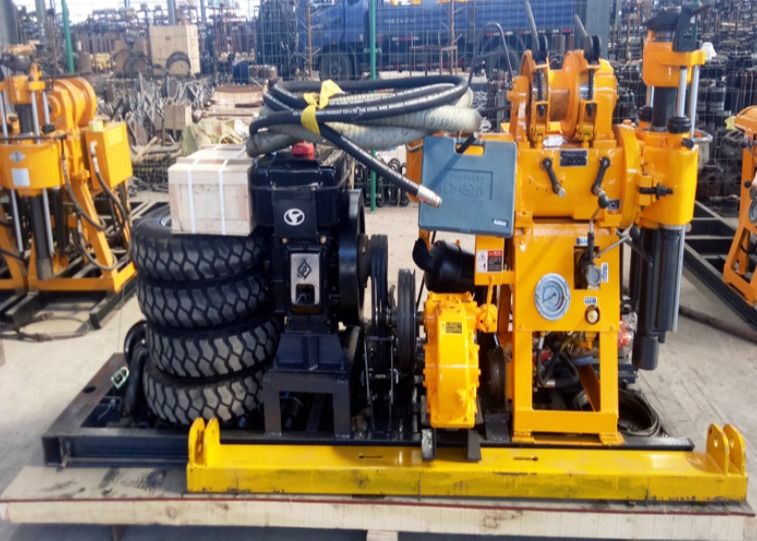

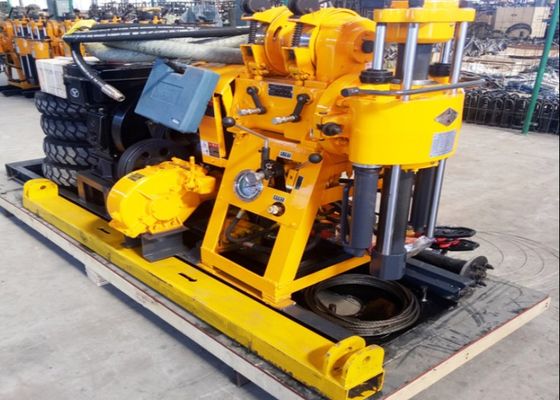

GK200 Drilling Rig with hydraulic feeding is widely utilized and featured in high power and hoisting load(2T), large torque transmission, etc. The rotating speed of vertical hexagonal spindle varies between 71r/min-825r/min. It is suited for the geotectonic survey, geological core drilling, small hole drillings for grout, blast and water well in railway, water coservancy, bridge, dam foundation and other constructions. Diamond drill vit, alloy drill bit and steel roller drill bit are available for drilling according to different geological structures.
Soil Test Drilling Machine parameters
| Drilling diameter(mm) |
75,91,110,130,150,300 |
| Drilling depth (m) |
200,150,100,70,50,30 |
| Drill pipe diameter (mm) |
42,50 |
| Drilling angle(°) |
90~75 |
| Equipment size(L * B * H) |
1730 * 860 * 1360 (mm) |
| Rig weight (except engine) |
700 |
| Gyrator |
| Spindle speed (four gear) (r/min) |
115,230,505,1010 |
| Spindle travel(mm) |
450 |
| Spindle no-load lifting maximum moving speed(m/s) |
0.05 |
| Spindle no load drop maximum movement speed(m/s) |
0.067 |
| Spindle maximum feed pressure(KN) |
15 |
| Spindle maximum lifting force(KN) |
25 |
| Spindle maximum output torque(KN• m) |
1.5 |
| Winch assembly |
| Winch maximum lifting force (single rope) |
20 |
| Reel speed (r/min) |
20,39,85,170 |
| Reel circumferential speed(m/s) |
0.172,0.345,0.738,1.476 |
| Reel diameter(mm) |
140 |
| Wire rope diameter(mm) |
9.3 |
| Wire rope density (m) |
40 |
| Brake diameter(mm) |
278 |
| Brake band width (mm) |
50 |
| |
| |
| Oil pump |
| Oil pump type |
YBC -20/125 |
| Nominal pressure (Mpa) |
12.5 |
| Rated flow(ml/r) |
20 |
| Rated speed(r/min) |
800-2500 |
| Diesel engine or motor |
| Diesel engine |
1115 |
| Rated power (KW) |
16.2 |
| Rated speed (r/min) |
2200 |
| Rated pressure(Mpa) |
12.5 |
| Motor type |
Y160M - 4 |
| Rated power (KW) |
11 |
| Rated speed (r/min) |
1460 |
Characteristics of drilling rig
GK-200 water well drilling machine has a hydraulic automatic feed mechanism, improve drilling efficiency,
reduce manual labor workers.
2. Card holder mechanism instead of using the ball chuck, can implement non-stop down the lever,
easy to operate, safe and reliable.
3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.
4 The handle centralized, easy to operate.
5. Light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas.
How about the features of it ?
1. With hydraulic automaatic feeding device, elevated drilling efficiency.
2. Large torque and drilling diameter.
3. With a spherial jaw holding mechanism and the rod replacement without breakdwn, high efficiency.
4. Compact structure, small volume, lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.
5. Adoping large drive pipe, double guide rod, increase the stability.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
