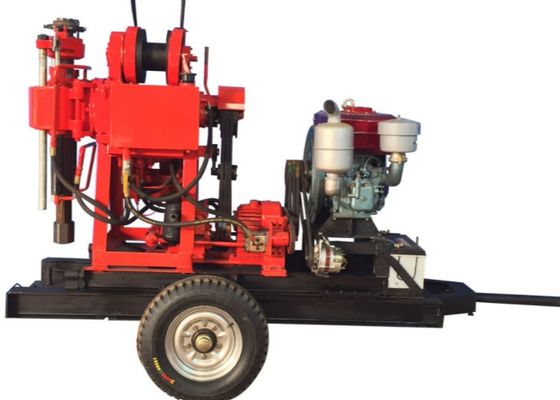

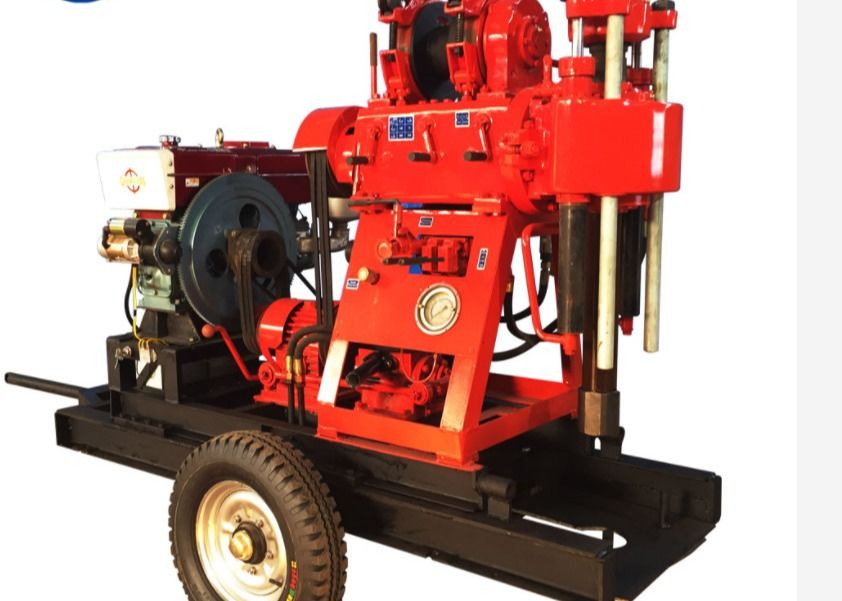

150m Mobile Geological Prospecting XY-1A Trailer Mounted Drilling Rig

150m Mobile Geological Prospecting XY-1A Trailer Mounted Drilling Rig
150m Mobile Geological Prospecting XY-1A Trailer Mounted Drilling Rig 150m Mobile Geological Prospecting XY-1A Trailer Mounted Drilling Rig

Large Image :  150m Mobile Geological Prospecting XY-1A Trailer Mounted Drilling Rig

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-1A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 2000set/year
Detailed Product Description
Type: Core Drill Rig Power Type: Diesel
Weight:: 480kg Usage: Water Well,railways, Core Drilling
Drilling Depth: 30-180m Dimension(L*W*H): 1620*970*1560mm
Drill Pipe Diameter: 42mm Borehole Dip Angle: 90°~75
Spindle Speed: 1010、790、470、295、140(r/min) Rated Pressure: 12.5Mpa
Model(diesel Engine): 1105 Rated Power: 18KW
High Light:

xy 1a mobile drilling rig

,

xy 1a trailer mounted drilling rig

,

150M trailer mounted drilling rig

150m XY-1A Mobile Trailer Mounted Geological Prospecting Drilling Rig From China





Introduction of Water Well Drilling Rig



XY-150 geological prospecting drilling rig is a small drilling rig for 150m deep, widely applied for Geology general check exploration, Earth physics exploration, Road and hihg layer buiding ground survey, Water Bore Well, blast opening et cetera, drilling engineering, etc.



Water Well Drilling Rig parameters



XY-1A Type
Drill Swivel Head

Drilling depth



Max.150m

Spindle speed



1010,790,470,295,140(r/min)

Hole diameter



Max.150m Spindle stroke 450kmm
Drill rod diameter 42.50mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-12/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.25Mpa
Flow speed 8ml/r
Rated speed 1500r/min
Hoist Power(diesel)
Max. lifting capacity 15KN Model(diesel engine) 1105
Hoisting drum revolution

121,76,36(r/min)



Rated power 18KW
Drum diameter 140mm Rated speed 2200r/m
WEIGHT AROUND 600KG
SIZE 1620*970*1560mm



Drilling rig Applications



(1)widely used in drilling large diameter blast hole in mining, road, national defence,water conservancy and so on

(2)necessary drill equipment for prophase surface mine project.



Drilling rig Characteristics



(1)light weight, easy portable, suitable for different working environment, like plain or valley places.

(2)Handle rack, easy operation, safe for body.

(3)Hydraulic power drilling device, high effiency.

(4)Fast Drilling speed; horizontal and vertica direction drill.


Shipping and Delivery

Our geological prospecting drilling rigs have been exported to many countries, such as Nigeria, Algeria, Chile, Peru, South Africa, Malaysia, Russia, etc. If you need, contact us please.

150m Mobile Geological Prospecting XY-1A Trailer Mounted Drilling Rig 0150m Mobile Geological Prospecting XY-1A Trailer Mounted Drilling Rig 1

150m Mobile Geological Prospecting XY-1A Trailer Mounted Drilling Rig 2150m Mobile Geological Prospecting XY-1A Trailer Mounted Drilling Rig 3
