| Type: | Hydraulic Crawler Drilling Rig | Color: | Red Yellow |
|---|---|---|---|
| Feature: | High Drilling Efficiency | Usage: | Water Well |
| Application: | Soil Sampling | Power Type: | Diesel |
| Drilling Depth: | 180 | Drilling Angle: | 90° ~75° |
| Warranty: | 1 Year | Voltage: | 220V/380V |
| Length Of Drill Pipe(mm): | 3m | Weight: | 5.5T |
| High Light: | 220v truck mounted borehole drilling rig,220v truck mounted drill rig,odm truck mounted borehole drilling rig |
||

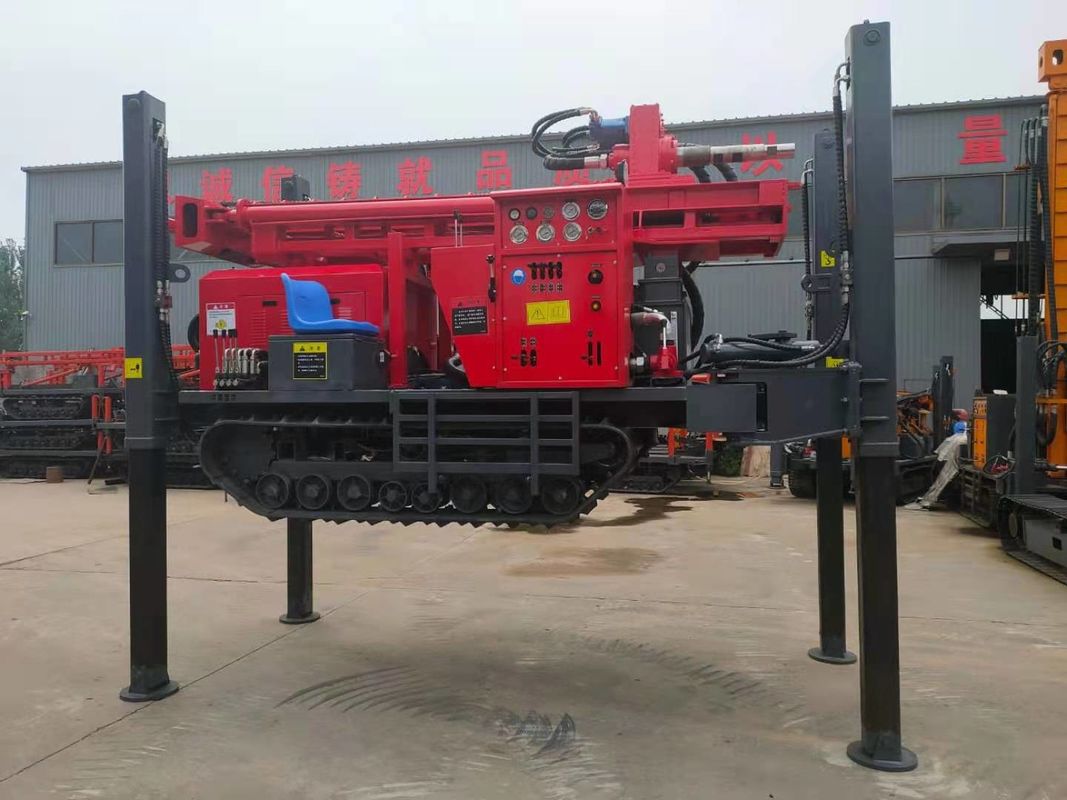

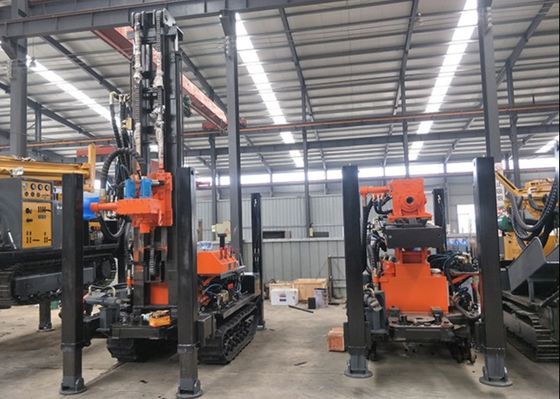

High Torque Penumatic Portable Truck Mounted Crawler Diesel Water Well Drilling Rigs Machine
Introduction to drilling rig
Our water well drilling rig is a lightweight, efficient, versatile drilling hole equipment, which borehole drilling machine is mainly applied in drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering. The water well drilling rig machine can work on different formations, well drilling diameter up to 245mm. The drill machine adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore drill hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines. Unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console, easy to operate.
2.Product parameters
| Model | ST-180 | ||
| working wind pressure(Mpa) | 17-31 | ||
| Weight | 10~20 | ||
| Hole diameter(mm) | 4500kg | ||
| Cost effective drilling depth(m) | 180m | ||
| Feeding stroke(mm) | 3000 | ||
| Length of drill pipe(mm) | 3m | ||
| Diameter of drill pipe(mm) | Φ76 | ||
| Maximum hoist capacity(N) | 35000 | ||
| Climb ability(°) | 30 | ||
| Walking speed(km/h) | 1~3 | ||
| Rotating speed(r/min) | 0-96 | ||
| Rotating torque(N.m) | 2100 |
Drilling rig characteristics
