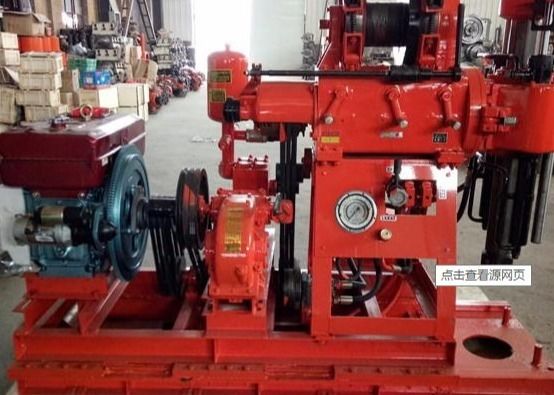

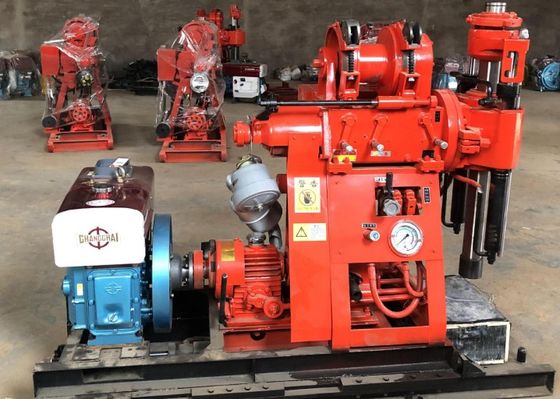

SHITAN GK 200 Diesel Soil Testing Drilling Machine Core Drill Rig
SHITAN GK 200 Core Drill Rig Introduction
It is widely utilized and featured in high power and hoisting load(2T), large torque transmission, etc. The rotating speed of vertical hexagonal spindle varies between 71r/min-825r/min. It is suited for the geotectonic survey, geological core drilling, small hole drillings for grout, blast and water well in railway, water coservancy, bridge, dam foundation and other constructions
GK 200 Core Drill Rig Technical Data
| GK 200 drilling depth |
200m |
| Rated boring diameter |
200mm |
| Vertical shaft rotation speed (4 shifts) |
118, 236, 505, 1010.r/min |
| Vertical shaft max. output torque |
1500N*m |
| Max. hositing weight single line) |
17KN |
| Drilling rod diameter |
42mm |
| Drilling dip angle |
90~75° |
| Drill outside diameter (L*B*H) |
1433*697*1273mm |
| Drill weight |
500kg |
| Max diameter |
300mm |
SHITAN GK 200 Core Drill Rig Feature:
1. With hydraulic automaatic feeding device, elevated drilling efficiency.
2. Large torque and drilling diameter.
3. With a spherial jaw holding mechanism and the rod replacement without breakdwn
4. Compact structure, small volume, lightweight, high detachability,
5. Adoping large drive pipe, double guide rod, increase the stability.
FAQ Of SHITAN GK 200 Core Drill Rig
1. What is the advantage about your company?
1. Our company has professional team and professional production line.
2. Why should I choose your products?
2. Our products are high quality and low price.
3. The logo and the color can be customized?
3. Yes, we welcome you to sample custom.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
