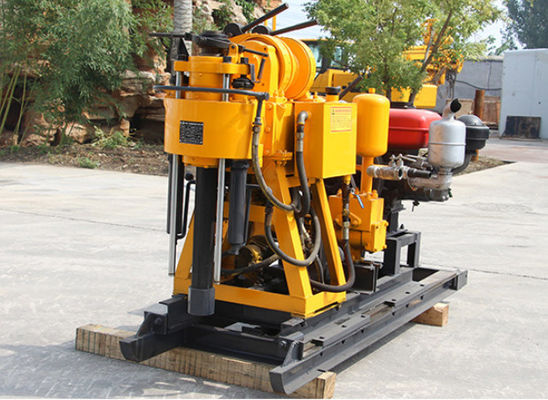

Vehicle Mounted Mine Core Positive Rotary 15kw Core Drill Rig Machine

Vehicle Mounted Mine Core Positive Rotary 15kw Core Drill Rig Machine
Vehicle Mounted Mine Core Positive Rotary 15kw Core Drill Rig Machine
video play

Large Image :  Vehicle Mounted Mine Core Positive Rotary 15kw Core Drill Rig Machine

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO
Model Number: GK200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per year
Contact Now
Detailed Product Description
Name: Geological Drilling Rig Machine Type: Rotary Drilling Rig
Power Type: Diesel Usage: Water Well
Voltage: 380V Power(W): 15KW
Weight: 626KGS Certification: ISO9001
Other Name: Drill Rig Drill Rod Diameter: 42, 50，89
Highlight:

15kw core drill rig

,

multifunctional mine core drill rig

,

15kw core drilling rig

Water Well Drilling Rig Vehicle Mounted Mine Core Positive Rotary Drilling Machine





Spt Mounted Mine Core Drill Rig Machine for Geological Exploration



GK200 Water well drilling rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole ,drilling and driect grouting, civil wells and earth temperature central air-conditioner,etc



Geological Drilling Rig Machine parameters



Drilling diameter(mm) 75,91,110,130,150,300
Drilling depth (m) 200,150,100,70,50,30
Drill pipe diameter (mm) 42,50
Drilling angle(°) 90~75
Equipment size(L * B * H) 1730 * 860 * 1360 (mm)
Rig weight (except engine) 700
                                                         Gyrator
Spindle speed (four gear) (r/min) 115,230,505,1010
Spindle travel(mm) 450
Spindle no-load lifting maximum moving speed(m/s) 0.05
Spindle no load drop maximum movement speed(m/s) 0.067
Spindle maximum feed pressure(KN) 15
Spindle maximum lifting force(KN) 25
Spindle maximum output torque(KN• m) 1.5
Winch assembly
Winch maximum lifting force (single rope) 20
Reel speed (r/min) 20,39,85,170
Reel circumferential speed(m/s) 0.172,0.345,0.738,1.476
Reel diameter(mm) 140
Wire rope diameter(mm) 9.3
Wire rope density (m) 40
Brake diameter(mm) 278
Brake band width (mm) 50


                                                        Oil pump
Oil pump type YBC -20/125
Nominal pressure (Mpa) 12.5
Rated flow(ml/r) 20
Rated speed(r/min) 800-2500
Diesel engine or motor
Diesel engine 1115
Rated power (KW) 16.2
Rated speed (r/min) 2200
Rated pressure(Mpa) 12.5
Motor type Y160M - 4
Rated power (KW) 11
Rated speed (r/min) 1460



Core Drilling Rig  characteristic



1.keeping bracket is installed on the hoist to form a double wheel support structure, can withstand strong blow.

2.Vertical box four couple of bearings positioned to ensure the rotary machine has a sufficient rigid response to gravel layer ,the complex geological conditions.

3.This machine adopts national patent technology taper clutch and is with charactristics of strong transmission torque,easy to operation,free to maintenance.

4.Using 46x51 active drill rods which is with high rigitidy, strong delivery torque.



hydraulic drilling machine water well bore hole drilling machines for sale

1. water well drilling rig Features
a. the machine is equipped with crawler chassis device,easy to move with fast speed.
b. hydraulic oil pressure feed device,improve drilling defficiency.
c. pressure gauge display the condition of the bottom of the drill hole.
d. drill mast controlled by hydraulic cylinder,improve the efficiency diesel engine adopt the electric starter,to reduce the labor itensity.


Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order

Vehicle Mounted Mine Core Positive Rotary 15kw Core Drill Rig MachineVehicle Mounted Mine Core Positive Rotary 15kw Core Drill Rig Machine

Vehicle Mounted Mine Core Positive Rotary 15kw Core Drill Rig Machine





Vehicle Mounted Mine Core Positive Rotary 15kw Core Drill Rig MachineVehicle Mounted Mine Core Positive Rotary 15kw Core Drill Rig Machine

Tag:

geological drilling machine,

rock core drilling machine,

portable core drilling machine
