350m Drilling Equipment For Water Well Full Hydraulic

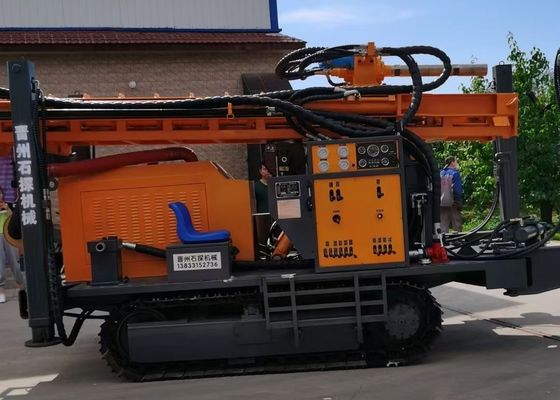

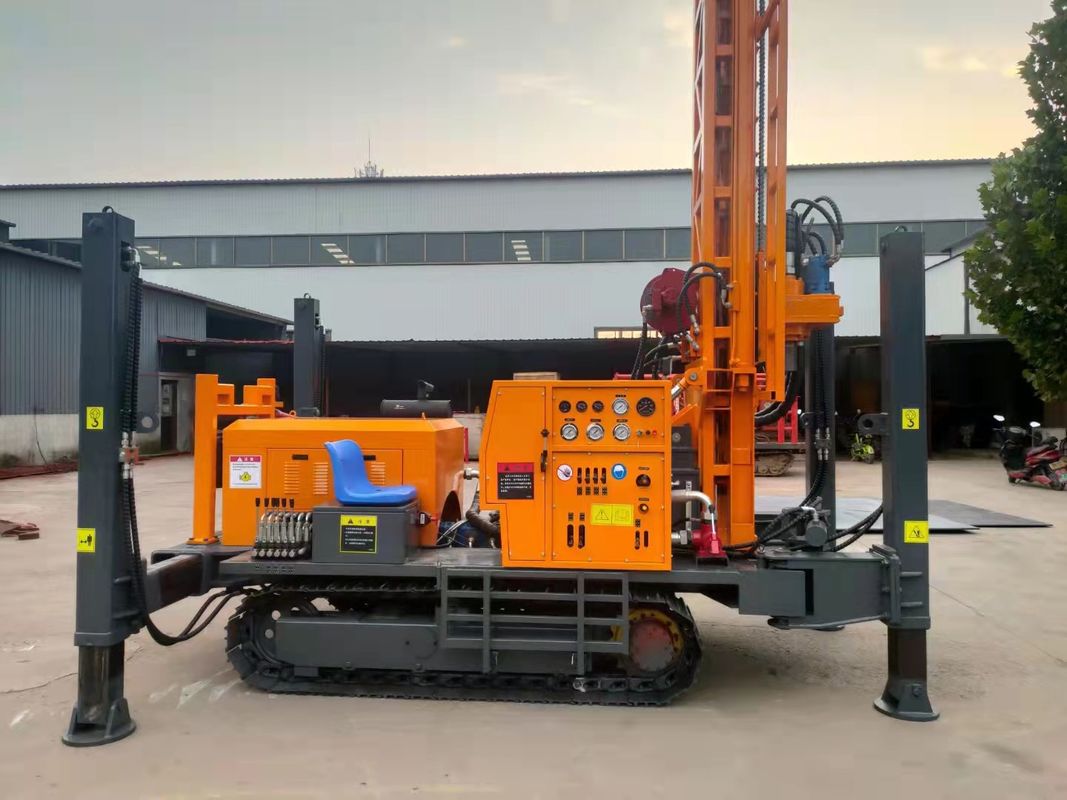

Large Image : 350m Drilling Equipment For Water Well Full Hydraulic

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO
Model Number:	ST350

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	A detailed discussion
Packaging Details:	Wooden case or naked
Delivery Time:	5-8days
Payment Terms:	L/C, D/P, D/P, T/T, Western Union
Supply Ability:	100000/yes

Contact Now

Detailed Product Description

Type:	Crawler Mounted Drill Rig	Drilling Depth:	350M
Application:	Drilling Well,hammer For Drills	Air Pressure:	1.25-3.5Mpa
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Warranty:	1 Year
Weight:	9800KG	Power:	92Kw
Usage:	Water Well	Hole Diameter:	140-305mm
Condition:	New	Name:	Crawler Hydraulic DTH Drilling Rig,water Well Drilling Rig,crawler Mounted Borehole Drilling Rig Price
Highlight:	1.25mpa crawler mounted drill rig , 350m crawler mounted drill rig , 350m crawler drilling rig

350m Drilling Equipment For Water Well Full Hydraulic

Product Specifications

Attribute	Value
Type	Crawler Mounted Drill Rig
Drilling depth	350M
Application	Drilling well, hammer for drills
Air pressure	1.25-3.5Mpa
After-sales service	Engineers available to service machinery overseas
Warranty	1 Year
Weight	9800KG
Power	92Kw
Usage	Water Well
Hole diameter	140-305mm
Condition	New

Product Description

Mining Core Drilling Machine Full Hydraulic Crawler Surface Drilling Rig Underground Water Drill Machines

Introduction of ST350 Pneumatic Drilling Rig

Our water well drilling rig is a top-driven, high-efficiency multifunctional hydraulic drilling rig featuring advanced technology, convenient operation, high working efficiency, reliability and durability. It is widely used in drilling wells, inspection wells, precipitation wells, rescue wells, ground source air conditioning holes, CBM, natural gas, oil extraction and other projects. This machine can drill holes with air compressor in all formations, with very fast drilling speed in hard rock.

Technical Parameters

Parameter	Value
Type	ST350
Weight	9.8T
Dimension	6m×2m×2.5m
Hole diameter	105-305mm
Drilling depth	350m
One-time advance length	6m
Walking speed	2.5KM/H
Climbing angles	30°
Power	92KW
Using air pressure	1.7-3.3MPA
Air consumption	17-35
Drill pipe length	1.5m, 2.0m, 3.0m, 6.0m
Drill pipe diameter	89mm, 102mm
Rig lifting force	20T
Swing speed	55-115rpm
Swing torque	6200-85000N.m

Crawler Mounted Drill Rig Organization Composition

Hydraulic oil pump: Duplex type with large displacement pump providing power for the power head, and small displacement pump for outrigger cylinders, mast cylinders, and lift pulley cylinder.
Four legs: Composed of hydraulic oil cylinder and fixed frame to adjust machine levelness and provide stability.
Mast: Frame structure of steel pipe, channel steel and angle steel with inner grooves as tracks for power head movement, ensuring drilling verticality.
Power head: Gear reducer mechanism with large hole mandrel for concrete pouring equipment connection and drill pipe attachment.

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a professional trading company with our own factory specializing in water well drilling rigs. Our products have been exported to over 20 countries including Azerbaijan, Kazakhstan, Asia, South America, Africa, India, and Egypt, earning excellent global reputation.

How about your machine quality?

All machines undergo rigorous testing to ensure the highest quality standards for our customers.

Do you have after-sale service?

Yes, we provide professional technical after-sales service with maintenance guidance and overseas engineer support.

What about the quality warranty?

We offer a one-year quality warranty on our products.

How long can you deliver the machine?

Standard delivery time is 7 days.
