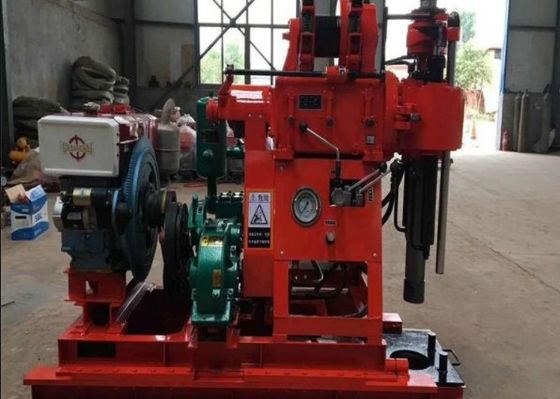

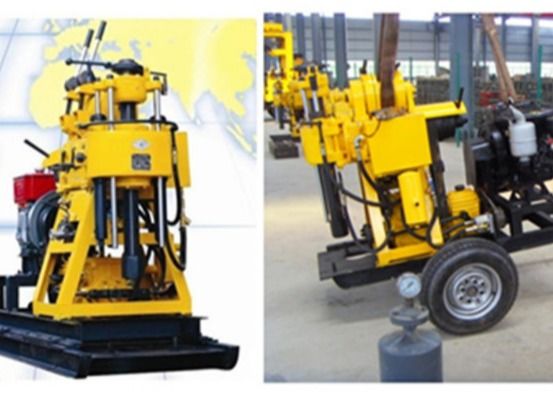

XY-1A Core Drill Rig Introduction of Core drilling rig
150 It is suitable for core work projects in difficult terrain such as mountains, hills, rivers, and moving. It is suitable for engineering geological survey of railways, hydropower, transportation, bridges, dam foundations and other buildings; geological core drilling, physics
XY-1A Core drilling rig parameters
| XY-1A Type |
| Drill |
Swivel Head |
|
Drilling depth
|
Max.150m |
Spindle speed
|
1010,790,470,295,140(r/min) |
|
Hole diameter
|
Max.150m |
Spindle stroke |
450kmm |
| Drill rod diameter |
42.50mm |
Spindle pull-down |
Max.15KN |
| Angle range |
90-75 |
Spindle lifting capacity |
Max. 25KN |
| Oil pump |
Water pump |
| Model |
YBC-12/125 |
Model |
Horizontal reciprocating single-acting piston pump |
| Rated pressure |
12.5Mpa |
Working pressure |
Max. 1.25Mpa |
| Flow speed |
8ml/r |
|
|
| Rated speed |
1500r/min |
|
|
| Hoist |
Power(diesel) |
| Max. lifting capacity |
15KN |
Model(diesel engine) |
1105 |
| Hoisting drum revolution |
121,76,36(r/min)
|
Rated power |
18KW |
| Drum diameter |
140mm |
Rated speed |
2200r/m |
| WEIGHT |
AROUND 600KG |
| SIZE |
1620*970*1560mm |
XY-1A Core drilling rig Machine features:
(1) Automatic oil pressure feeding mechanism, improve drilling efficiency, reduce workers' physical labor intensity
(2) Using ball card clamping mechanism instead of chuck, and equipped with clamping positioning mechanism can implement non-stop down rod (3) equipped with hole bottom pressure gauge indicating pressure, easy to grasp the situation in the hole
(4) Handle centralized, easy to operate
(5) Compact structure, drill and power machine are installed on the same base, occupying a small site area
(6) light weight, strong decomposition, easy to move, suitable for plain or mountain work
(7) equipped with safety cover, highlighting the humanized design characteristics of the equipment
(8) A fixed nut is installed at the connection between the lower end of the intake cylinder and the vertical axle box to improve the reliability of the drilling
XY-1A Core drilling rig Small hydraulic drilling machine Mini geological exploration drilling rig advantages
1. Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.
2. With hydro-automatic feeding device, and high drilling efficiency.
3. Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.
4. Close levers, convenient to operate, safe and reliable operations.
5. Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.
6. Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.
