GK 200 Customized Depths Drilling Rig for Exploration ,Engineering Drilling Rig

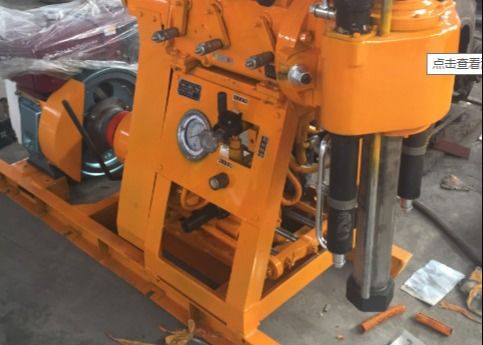

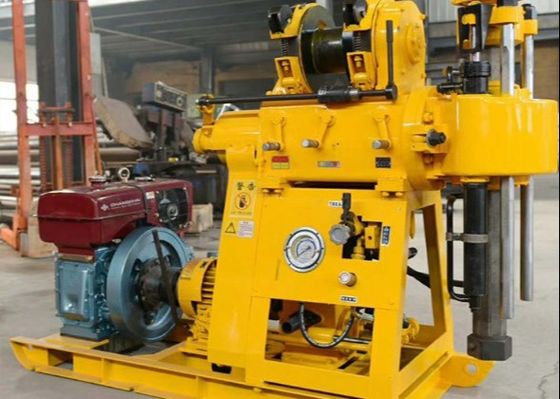

GK 200 Customized Engineering Drilling Rig Introduction
Gk-200-2 drilling machine is widely used and hydraulic feeding , which has the characteristics of large power, large lifting force (2T) and high transmission torque.This is widely used and hydraulic feeding , which has the characteristics of large power, large lifting force (2T) and high transmission torque.
GK 200 Customized Engineering Drilling Rig Technical Data
|
Drill rig specification
|
|
Drilling depth
|
200m
|
|
Drilling Diameter
|
91mm,110mm,130mm,150mm,300mm
|
|
Drilling rod diameter
|
50mm
|
|
Drilling Angle
|
90°-75°
|
|
Dimensions(L×W×H)
|
1750×850×1300 (mm)
|
|
Weight
|
880kg/set
|
|
Swivel Head
|
|
Spindle Speed
|
115, 230, 505, 790, 1010 r/min
|
|
Spindle stroke
|
450mm
|
|
Spindle Dia.
|
Φ59mmx53mmx4350mm Kelly rod
|
|
Upward displacement speed of drilling vertical spindle
|
0.05m/s
|
|
Downward displacement speed of drilling vertical spindle
|
0.067m/s
|
|
Spindle pull-down max
|
15KN
|
|
Spindle lifting capacity max
|
25KN
|
|
Vertical maximum output torque
|
1.5KN.m
|
|
Hoist
|
|
Max. Lifting capacity(single rope)
|
20KN.m
|
|
Lifting rotating speed
|
20; 40; 90; 168r/min
|
|
Hoisting drum linear velocity (two levels)
|
0.17; 0.35; 0.73; 1.5m/s
|
|
Drum Diameter
|
140mm
|
|
Wire rope diameter
|
9.3mm
|
|
Wire rope capability
|
40m
|
GK 200 Customized Engineering Drilling Rig Advantages
1) It has hydraulic feeding structure, drilling efficiency and reduce workers' labor intensity.
(2) The drilling rig is equipped with upper ball clamp clamping mechanism and hexagonal active drill pipe, which can reverse the rod without stopping, with high working efficiency, convenient and reliable operation.
(3) It is equipped with a hole bottom pressure gauge to indicate the pressure, which is convenient to master the situation in the hole.
(4) The handle is centralized and easy to operate.
(5) The drilling rig has the advantages of compact structure, small volume, light weight, strong decomposition and easy relocation. The loading form is trailer type, crawler type and disassembly. It is suitable for working in plain or mountainous areas.
FAQ GK 200 Customized Engineering Drilling Rig
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom.
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
