St180 Fast Rock Pneumatic Drilling Rig Machine 220V

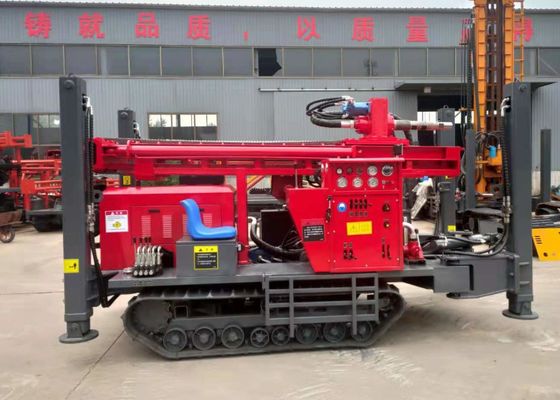

Large Image : St180 Fast Rock Pneumatic Drilling Rig Machine 220V

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST180

Payment & Shipping Terms:

Minimum Order Quantity:	1sets
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	Within 7-12 days
Payment Terms:	L/C, D/A, T/T, Western Union

Contact Now

Detailed Product Description

Type:	Hydraulic Crawler Drilling Rig	Color:	Red Yellow
Feature:	High Drilling Efficiency	Usage:	Water Well
Drilling Depth:	180	Drilling Angle:	90° ~75°
Warranty:	1 Year	Voltage:	220V/380V
Product Name:	Water Well Drilling Rig,300m Borehole Drilling Machine /water Well Drilling Rig For Sale,200m Pneumatic Tractor Mounted Water Well Drilling Rig Machine Price	Engine:	Diesel Engine
Highlight:	fast rock pneumatic drilling rig , 180m pneumatic drilling rig , pneumatic drilling machine 220v

ST180 Fast Rock Pneumatic Drilling Rig Machine 220V

Product Specifications

Type	Hydraulic crawler drilling rig
Color	Red Yellow
Feature	High Drilling Efficiency
Usage	Water Well
Drilling Depth	180m
Drilling Angle	90° ~75°
Warranty	1 Year
Voltage	220V/380V
Engine	Diesel engine

Product Overview

The ST180 Pneumatic DTH Drilling Rig is designed for efficient rock drilling when used with an air compressor. With a drilling speed of 20-40m per hour and a powerful 76kW engine, this hydraulic crawler rig delivers exceptional performance for water well drilling applications.

Technical Parameters

Model	ST-180
Working Wind Pressure (Mpa)	17-31
Weight	4500kg
Hole Diameter (mm)	180
Feeding Stroke (mm)	3000
Length of Drill Pipe (mm)	3m
Diameter of Drill Pipe (mm)	Φ76
Maximum Hoist Capacity (N)	35000
Climb Ability (°)	30
Walking Speed (km/h)	1~3
Rotating Speed (r/min)	0-96
Rotating Torque (N.m)	2100

Key Features

Automatic hydraulic feeding mechanism improves drilling efficiency and reduces labor intensity
Ball card clamping mechanism replaces traditional chuck for safer, more reliable operation
Hoist equipped with cage forms double-sided support star wheel structure for impact resistance
Four sets of bearing positioning ensure sufficient rigidity for complex geological conditions
National ED taper clutch provides large transmission torque with maintenance-free operation

After-Sale Service

Free insurance for goods
24-hour online technical support with English manual and installation videos
One year warranty with lifetime maintenance support
Option for dispatch of technical workers to your location

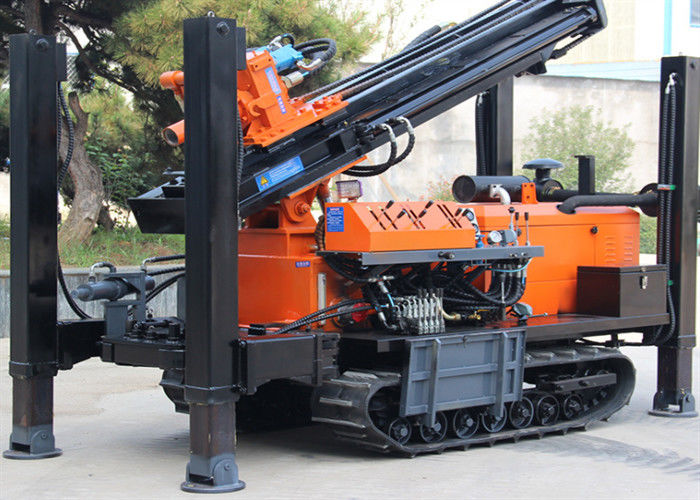

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
