260m Percussive Pneumatic Drilling Rig Crawler Machine

Large Image : 260m Percussive Pneumatic Drilling Rig Crawler Machine

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO
Model Number:	ST260

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Wooden case (bare)
Delivery Time:	5-8days
Payment Terms:	L/C, D/P, D/P, T/T, Western Union
Supply Ability:	1000/month

Contact Now

Detailed Product Description

Drilling Depth:	260	Drilling Diameter:	105-260mm
After-sales Service Provided:	Water Well Drilling Rig	Warranty:	1 Year
Power Type:	Diesel	Color:	Yellow
Weight:	6T	Rotary Head Storke:	3.4m-6.0m
Rated Power:	55-132KW	Weight Of The Rig:	4m×1.7m×2.2m
Highlight:	260m pneumatic drilling rig , percussive pneumatic drilling rig , percussive pneumatic drilling machine

260m Percussive Pneumatic Drilling Rig Crawler Machine

Product Specifications

Drilling Depth	260m
Drilling Diameter	105-260mm
After-sales Service	Water Well Drilling Rig
Warranty	1 Year
Power Type	Diesel
Color	Yellow
Weight	6T
Rotary Head Stroke	3.4m-6.0m
Rated Power	55-132KW
Dimensions	4m×1.7m×2.2m

ST-260 Water Well Drilling Rig Overview

The ST260 series deep well drilling rig features full hydraulic control and top drive rotation for exceptional drilling efficiency. Its tractor-mounted or full ground chassis design ensures excellent maneuverability in challenging terrain conditions.

Technical Parameters

Drilling Depth	260m
Hole Diameter	φ105-260mm
Advance Length per Cycle	6.6m
Working Pressure	1.7-3.0MPa
Air Consumption	17-35m³/min
Rod Length Options	1.5m, 2m, 3m, 6m
Rod Diameter Options	φ76, φ89, φ102, φ114
Lifting Power	24T
Rotation Torque	8500-11000N.m
Rotation Speed	40-70r/min
Diesel Engine	Yuchai
Engine Power	85Kw/2200rpm
Travelling Speed	0-2.5 Km/h
Climb Capacity	30°
Weight	9000kgs
Dimensions	5900x2000x2850mm

Key Advantages

This versatile drilling rig is designed for multiple applications including water drilling, geothermal heating, resource exploration, and mine gas exploitation. Its high efficiency, low failure rate, and durable construction offer exceptional cost performance for demanding industrial applications.

Compact mobile design with crawler wheel truck mounting
Suitable for complex geological conditions including rock, mud, and sand
Multiple drilling methods: Top drive hydraulic rotary, DTH drilling, or mud pump drilling
Compatible with various DTH hammer sizes (4",5",6",8")
Ideal for industrial/agricultural water projects, test wells, and exploration boreholes

Operation & Maintenance Guidelines

1. Manual Review: Thoroughly read the operation and maintenance manual before use.

2. Running-in Period: Keep workload below 80% of rated capacity during initial operation.

3. Monitoring: Regularly check instrument readings and stop immediately if abnormalities occur.

4. Fluid Checks: Maintain proper levels of lubricating oil, hydraulic oil, coolant, and fuel.

5. Lubrication: Apply grease at all lubrication points before operation, especially in muddy conditions.

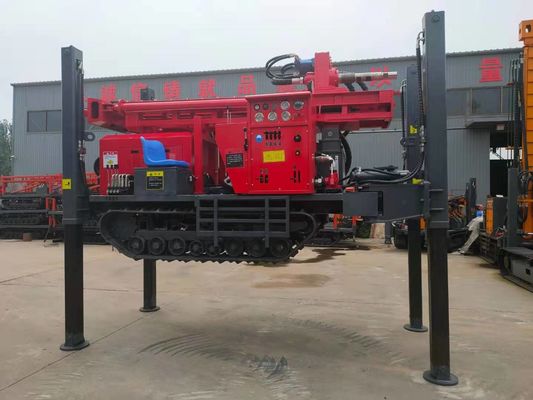

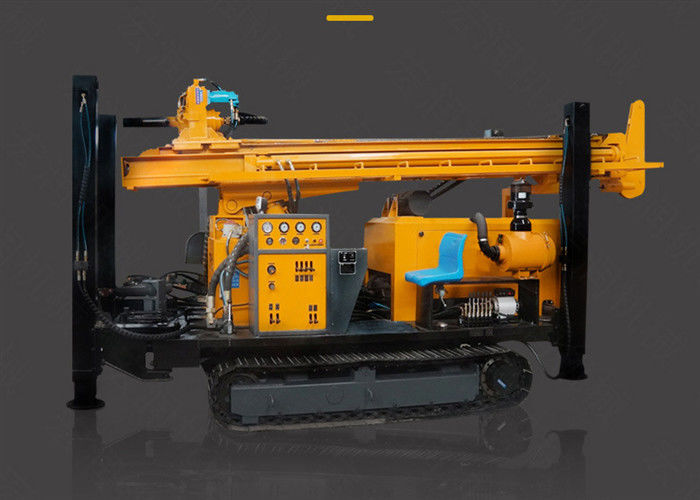

Product Images
