Crawler Water Well Pneumatic Drilling Machine Full Hydraulic

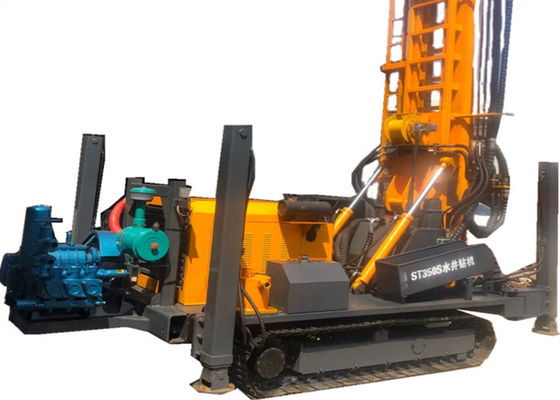

Large Image : Crawler Water Well Pneumatic Drilling Machine Full Hydraulic

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO
Model Number:	ST350

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	A detailed discussion
Packaging Details:	Wooden case or naked
Delivery Time:	5-8days
Payment Terms:	L/C, D/P, D/P, T/T, Western Union
Supply Ability:	100000/yes

Contact Now

Detailed Product Description

Type:	Crawler Mounted Drill Rig	Drilling Depth:	350M
Application:	Drilling Well,hammer For Drills	Air Pressure:	1.25-3.5Mpa
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Warranty:	1 Year
Weight:	9800KG	Power:	92Kw
Usage:	Water Well	Hole Diameter:	140-305mm
Highlight:	crawler pneumatic drilling machine , water well pneumatic drilling machine , pneumatic crawler drill full hydraulic

Crawler Water Well Pneumatic Drilling Machine Full Hydraulic

Product Specifications

Attribute	Value
Type	Crawler Mounted Drill Rig
Drilling depth	350M
Application	Drilling well, hammer for drills
Air pressure	1.25-3.5Mpa
After-sales service	Engineers available to service machinery overseas
Warranty	1 Year
Weight	9800KG
Power	92Kw
Usage	Water Well
Hole diameter	140-305mm

Product Overview

The ST350 pneumatic drilling rig is a high-performance, full hydraulic water well drilling machine designed for efficient drilling operations. This compact yet powerful equipment uses high-pressure air as its power source, making it ideal for various drilling applications including industrial, civil, and geothermal drilling projects.

Technical Parameters

Parameter	Value
Model	ST350
Weight	9.8T
Dimensions	6m × 2m × 2.5m
Hole diameter	105-305mm
Drilling depth	350m
One-time advance length	6m
Walking speed	2.5KM/H
Climbing angle	30°
Power	92KW
Air pressure	1.7-3.3MPA
Air consumption	17-35
Drill pipe length	1.5m, 2.0m, 3.0m, 6.0m
Drill pipe diameter	89mm, 102mm
Rig lifting force	20T
Swing speed	55-115rpm
Swing torque	6200-85000N

Key Features

Compact design with small volume and light weight for easy installation and transportation
Modular construction consisting of main engine, pump station, and console
Versatile operation capable of 0-90 degree surface drilling and 360° rotation
Full hydraulic system with mechanized drill pipe handling reduces labor intensity
Box feeding frame with gripper tightening system eliminates need for heavy drilling tower
Central console control with linkage function for simple, safe operation
Hollow shaft design allows for unlimited drill pipe length
Easy disassembly and relocation capabilities

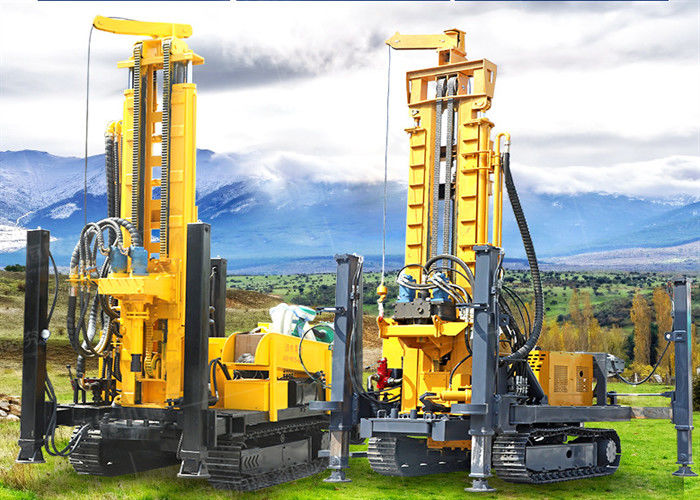

Product Images

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a professional trading company with our own manufacturing facility specializing in water well drilling rigs. Our products have been exported to over 20 countries including Azerbaijan, Kazakhstan, various Asian, South American, and African nations, earning excellent global reputation.

How about your machine quality?

All our machines undergo rigorous testing procedures to ensure we deliver only the highest quality equipment to our customers.

Do you provide after-sale service?

Yes, we maintain a professional technical support team to provide comprehensive after-sales service and maintenance guidance. Our engineers are available for overseas service when required.

What is your quality warranty?

We offer a one-year quality warranty on all our machines.

How long is your delivery time?

Standard delivery time is typically 7 days after order confirmation.
