Oem Customized Large Pneumatic Drilling Rig Machine ST350

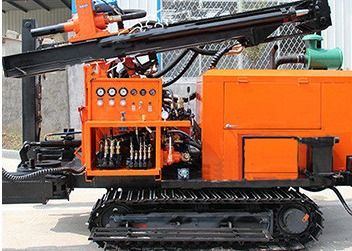

Large Image : Oem Customized Large Pneumatic Drilling Rig Machine ST350

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	ST-350

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	OEM Customized Large Drilling Machine,ST 350 Pneumatic Drilling Rig	Model:	ST 350 Drilling Rig
Machine Type:	Drilling Equipment	Certification:	ISO
Hole Diameter:	Customized	Drilling Depths:	350meters
Condition:	New	Weight:	8.9 T
Rotation Torque:	7500Nm, 983 N.m, 4200N.m, 3400mm	Air Consumption:	16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic Meter/min
After Sale Service:	Video Support
Highlight:	pneumatic drilling rig 350m , pneumatic drilling rig oem , iso pneumatic drilling rig

OEM Customized Large Pneumatic Drilling Rig Machine ST350

Product Specifications

Attribute	Value
Product Name	OEM Customized Large Drilling Machine, ST 350 Pneumatic Drilling Rig
Model	ST 350 Drilling Rig
Machine Type	Drilling Equipment
Certification	ISO
Hole Diameter	Customized
Drilling Depths	350 meters
Condition	New
Weight	8.9 T
Rotation torque	7500Nm, 983 N.m, 4200N.m, 3400mm
Air consumption	16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic meter/min
After sale service	Video Support

Product Overview

The ST 350 Pneumatic Drilling Rig features full hydraulic control and top drive rotation for high drilling efficiency. Its tractor-mounted or full ground chassis provides excellent maneuverability, making it ideal for difficult terrain and various applications including resource exploration, hydrology wells, coalbed methane extraction, shallow shale gas drilling, geothermal projects, and coal-mine gas exploitation.

Technical Specifications

Power Type	Diesel
Place of Origin	China
Factory Brand	SHITAN
Usage	Water Well Drilling
Dimensions (L×W×H)	6400MM × 2250MM × 2700MM
Drilling Diameter	152mm-305mm
Depth	25M
Rotary Speed	0-90rpm
DTH	K40
Drilling Rods	76×2m + 76×3m
Packing	Standard Export Packing

Key Advantages

The ST 350 effectively addresses challenges in difficult soil layers and improves construction efficiency in hard rock, gravel, and pebble layers. Suitable for all complex strata, this rig offers high efficiency and energy savings for geological exploration, core drilling, and water well applications, representing the future of drilling equipment technology.

Operation Guidelines

Operators must complete technical training and understand DTH structure and principles before operation
Proper safety gear including work clothes and helmets must be worn at all times
Equipment must be moved to safe distance and protected during blasting operations
Thorough inspection required after blasting operations
Operations in strong winds (above level 6) or freezing conditions require special precautions

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
