Household Civil Crawler Type Small Well Drilling Machine

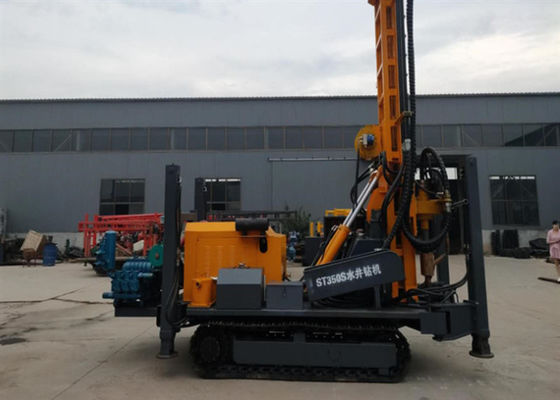

Large Image : Household Civil Crawler Type Small Well Drilling Machine

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Model Number:	ST350

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	A detailed discussion
Packaging Details:	Wooden case or naked
Delivery Time:	5-8days
Payment Terms:	L/C, D/P, D/P, T/T, Western Union
Supply Ability:	100000/yes

Contact Now

Detailed Product Description

Name:	Tractor Mounted Portable Pneumatic Water Well Drilling Rig	Type:	Crawler Mounted Drill Rig
Drilling Depth:	350M	Application:	Drilling Well,hammer For Drills
Air Pressure:	1.25-3.5Mpa	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Warranty:	1 Year	Weight:	9800KG
Power:	92Kw	Usage:	Water Well
Hole Diameter:	105-305mm	Voltage:	220V/380V
Highlight:	crawler mini water well drilling machine , civil small well drilling machine , household small well drilling machine

Household Civil Crawler Type Small Well Drilling Machine

Product Specifications

Name	tractor mounted portable pneumatic water well drilling rig
Type	Crawler Mounted Drill Rig
Drilling depth	350M
Application	drilling well, hammer for drills
Air pressure	1.25-3.5Mpa
After-sales service	Engineers available to service machinery overseas
Warranty	1 Year
Weight	9800KG
Power	92Kw
Usage	Water Well
Hole diameter	105-305mm
Voltage	220V/380V

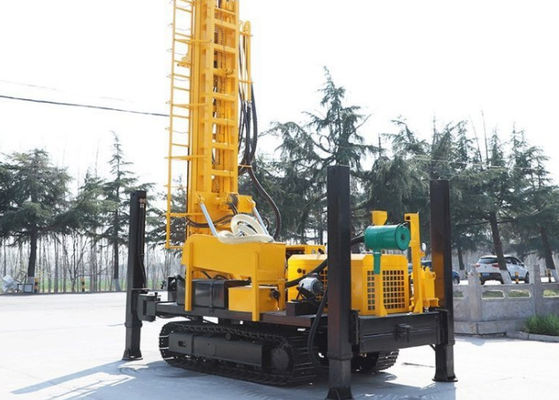

ST350 Pneumatic Drilling Rig Overview

The ST350 series water well drilling rig is a lightweight, efficient, and multifunctional drilling equipment designed for various applications including water wells, agricultural irrigation wells, and geothermal air conditioning holes. Particularly effective for water intake projects in mountainous areas and rock strata, this rig can drill through different geological formations with diameters up to 254mm.

Featuring advanced hydraulic technology, the ST350 supports large torque hydraulic motor rotation and hydraulic cylinder propulsion. Its robust design includes a multi-cylinder engine powering the hydraulic system, two-stage air filtration, and a unique pump set design that simplifies maintenance while reducing costs. The centralized control hydraulic console ensures easy operation.

Built on an excavator crawler chassis, this drilling rig offers exceptional off-road performance. Its modular design allows for truck mounting, enhancing mobility. The dual-speed rotation and propulsion system accommodates diverse drilling requirements in both soil layers and rock strata.

Technical Parameters

Type	ST350
Weight	9.8T
Dimensions	6m × 2m × 2.5m
Hole diameter	105-305mm
Drilling depth	350m
One-time advance length	6m
Walking speed	2.5KM/H
Climbing angle	30°
Power	92KW
Air pressure	1.7-3.3MPA
Air consumption	17-35
Drill pipe length	1.5m, 2.0m, 3.0m, 6.0m
Drill pipe diameter	89mm, 102mm
Rig lifting force	20T
Swing speed	55-115rpm
Swing torque	6200-85000N

Key Features

Compact & Portable: Small volume and light weight for convenient installation and operation
Modular Design: Consists of three main components - host machine, pump station, and control console
Versatile Operation: Capable of 0-90 degree surface drilling and adaptable to various mining environments
Efficient Operation: Mechanized drill pipe handling reduces labor intensity and improves productivity
Innovative Drilling System: Box feeding frame with gripper tightening and oil cylinder propulsion eliminates need for heavy drilling tower
User-Friendly Controls: Centralized console with linkage function and stepless speed adjustment
Flexible Drilling: Hollow shaft design allows 360° drilling at any angle with unlimited drill pipe length
Easy Relocation: Designed for quick disassembly and convenient transportation

After-Sales Service & Delivery

Quality Commitment: We maintain strict quality standards without compromising performance or components to reduce costs. Custom production configurations are available to meet specific customer requirements.

Delivery Assurance: Products are delivered according to agreed schedules. For urgent requirements, we can expedite production, installation, testing, and packaging processes within reasonable limits.
