Crawler Rock Pneumatic Drilling Rig Fully Automatic Agricultural Equipment

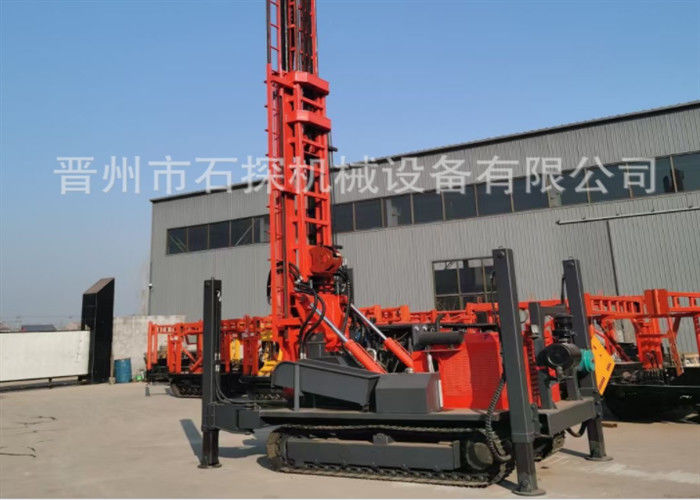

Large Image : Crawler Rock Pneumatic Drilling Rig Fully Automatic Agricultural Equipment

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST-200

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Naked
Delivery Time:	Within 7-12 days
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	1000year

Contact Now

Detailed Product Description

Type:	Crawler Mounted Drill Rig	Power Type:	Diesel
Driving Way:	Hydraulic Driving	Usage:	Geological Core Drilling
Voltage:	380V	Model Number:	ST-260
Name:	Well Drilling Equipment	Air Pressure:	1.25-3.5Mpa
Weight Of The Rig:	4m×1.7m×2.2m	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Highlight:	rock pneumatic drilling rig , fully automatic pneumatic drilling rig , pneumatic drilling rig agricultural equipment

Crawler Rock Pneumatic Drilling Rig Fully Automatic Agricultural Equipment

Product Specifications

Type	Crawler Mounted Drill Rig
Power Type	Diesel
Driving Method	Hydraulic driving
Usage	Geological core drilling
Voltage	380V
Model Number	ST-260
Air Pressure	1.25-3.5Mpa
Dimensions	4m×1.7m×2.2m
After-sales Service	Engineers available to service machinery overseas

Product Overview

The ST200 Crawler pneumatic drilling rig features mechanical walking with high base gear, enabling it to traverse uneven terrain independently. Its compact size and automatic hydraulic system make it safe and reliable for various applications including air conditioning hole drilling, household water wells, and small water conservancy projects.

Technical Parameters

Weight	5.5T
Drilling Caliber	140-254mm
Drilling Depth	200m
One-time Push Length	3.3m
Walking Speed	2.5km/h
Climbing Ability	Max. 30°
Power	76kw
Working Pressure	1.7-2.5mpa
Air Consumption	17-31m³/min

Key Features

Full hydraulic control for convenient operation
Top drive type rotary feeding lifting system
Multi-functional drilling capabilities
High efficiency with low operational costs
High outrigger crawler type design
Unique positive and negative axial pressure adjustment
Integrated lubricator function
Crawler mounted rig chassis for stability
Excellent resale value in the industry

Delivery & Service

Products are delivered according to schedule, with expedited production available for urgent requirements. Each unit includes:

Product manual and maintenance manual
Product certificate
Purchased parts instructions
Vulnerable parts list (varies by model)

Warranty: 1 year comprehensive coverage. Our service team conducts monthly technical follow-ups to ensure optimal performance and customer satisfaction.

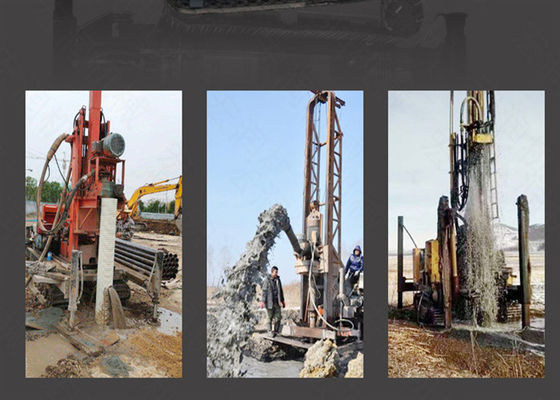

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
