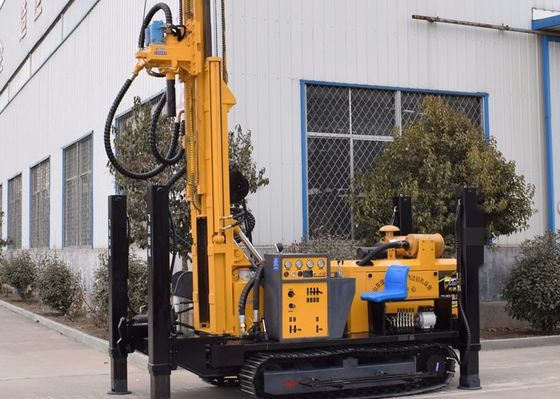

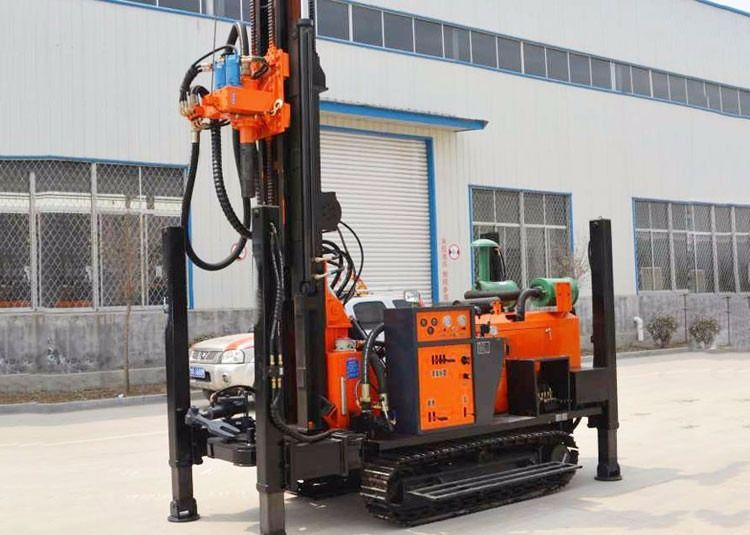

ST180 Meters Depth Large Pneumatic Drilling Rig 380v
Product Specifications
| Product Name |
Shitan Machinery ST 180 Meters Depth Large Pneumatic Drilling Rig |
| Color |
Red Yellow |
| Feature |
High Drilling Efficiency |
| Usage |
Water Well, Exploration, Soil Testing |
| Application |
Water Well Drilling |
| Power Type |
Diesel |
| Drilling Depth |
180 meters |
| Warranty |
1 Year |
| Voltage |
220V/380V |
| Length of Drill Pipe |
3m |
| Condition |
New |
Product Overview
The Shitan Machinery ST 180 Meters Depth Large Pneumatic Drilling Rig is a high-performance drilling equipment that uses high-pressure air as the power source. Designed for fast deep water well drilling, it is ideal for industrial and civil drilling applications, geothermal drilling, and particularly effective for water intake engineering in mountainous rock strata.
Technical Specifications
Item NO.
ST-180
Air Consumption
17-31 m³/min
Weight
4.5 T
Equipped Capacitor
55 Kw
Dimensions
3800×1550×2350 mm
Swing Speed
45-65 rpm
Hole Diameter
140-254 mm
Swing Torque
3200-4600 N.m
Drilling Depth
180 m
Drill Pipe Diameter
76/89 mm
Once-time Advance Length
3.3 m
Drill Pipe Length
1.5/2.0/3.0 m
Walking Speed
2.5 Km/h
Rig Lifting Force
10 T
Climbing Angles (Max)
30°
Supporting Power
29m³/min 23BAR AIR COMPRESSOR
Using Air Pressure
1.7-2.5 Mpa
Key Features
- Utilizes pneumatic impact principle for fast drilling footage
- Equipped with rubber steel wire crawler for easy mobility without road damage
- High hydraulic outrigger for convenient loading/unloading and leveling
- High-power diesel engine provides strong power for demanding work
- Hydraulic take-off/landing compound boom saves space and offers strong lifting force
- Hydraulic feeding system with double hydraulic motor power head for high efficiency
- Quick rod unloader enables fast drill pipe disassembly
- Centralized operating handles with reasonable layout for safety
- Durable construction with low maintenance costs
Versatile Applications
This multifunctional drilling rig supports various drilling technologies including down-the-hole drilling, mud drilling, cone drilling, pipe following drilling, and core drilling. It can be optionally equipped with mud pumps, generators, electric welding machines, and cutting machines based on user requirements. Standard configuration includes various hoists for comprehensive operation capabilities.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
