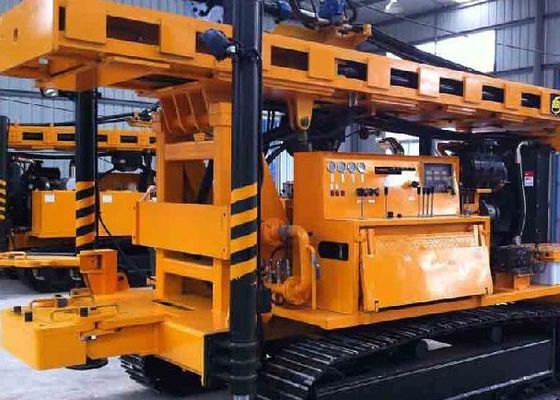

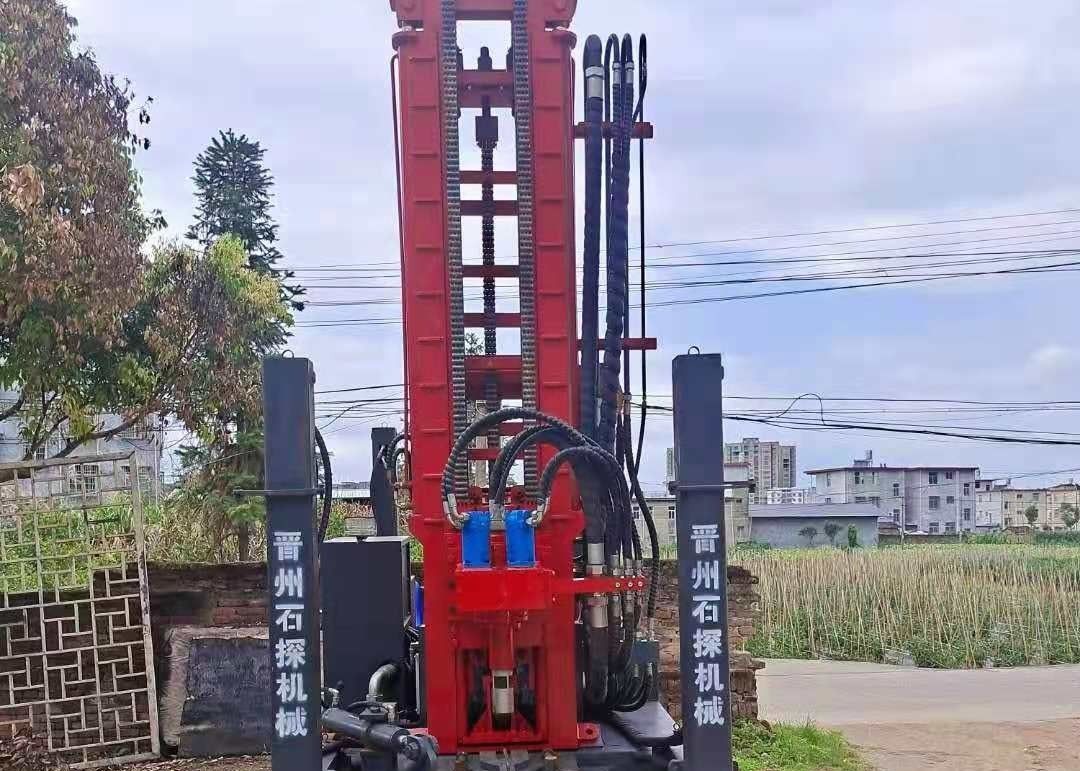

ST 200 Meters Pneumatic Drilling Rig
Customized Diameter Large Diesel Engine Power
| Attribute |
Value |
| Product Name |
ST 200 Pneumatic Drilling Rig |
| Model Number |
Truck-mounted drilling rig |
| Machine Type |
Drilling Equipment |
| Certification |
ISO |
| Hole Diameter |
Customized |
| Drilling Depths |
200 meters |
| Condition |
New |
| Weight |
8.9 T |
| Warranty |
12 months |
| Rotation torque |
7500Nm, 983 N.m, 4200N.m, 3400mm |
| Air consumption |
16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic meter/min |
Product Description
The ST 200 Pneumatic Drilling Rig is a full hydraulic drilling rig primarily used for drilling wells, irrigation wells, ground source heating pump wells, and other boreholes. It is especially effective for mountain and rock formation well projects, capable of drilling through different geological layers.
Technical Specifications
| Drilling Rig Model |
ST 200 |
| Condition |
New |
| Drilling Depth |
200 Meters |
| Power Type |
Diesel |
| Origin |
China |
| Brand Name |
Shitan |
| Usage |
Water Well Drilling |
| Dimensions (L×W×H) |
6400MM × 2250MM × 2700MM |
| Weight |
5800KG |
| Certification |
ISO9000 |
| Warranty |
1 Year |
| Drilling Diameter |
90-152mm |
| Rotary Speed |
0-90rpm |
| DTH |
K40 |
| Drilling Rods |
76×2m + 76×3m |
| Air Consumption |
13-20m3/min |
| Traveling Speed |
0-2.5km/h |
Key Advantages
- Greater fuel efficiency and energy saving
- Air filtration system with vacuum indication for dust environments
- Compressor oil and engine coolant coolers to optimize performance and extend engine life
- Efficient compressor oil filter
- Fuel filter with water separator
- Easy to remove, translucent PE fuel tank
Drilling Procedures and Considerations
- The drilling unit must first drill holes, take samples, and create a drilling profile structure diagram.
- Based on the geological structure, prepare the upper pipe and filter pipe with a drilling diameter not less than 300mm.
- After drilling and pipe laying, ensure proper backfilling of filter materials (1.8-2.0 m3) with at least 70mm clearance outside the well pipe wall.
- The well pipe must be vertical without any inclination upon completion.
- Use 8mm thick polyethylene plastic pipe with proper filter specifications and installation procedures.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
