Customized ST350 Depths Pneumatic Drilling Rig With High Speed Drilling Performance
Product Overview
The ST350 Depths Pneumatic Drilling Rig is a high-performance drilling machine designed for water well drilling, exploration, and other borehole applications. With a drilling depth capacity of 350 meters, this rig excels in various geological conditions including rock, mud, and sand formations.
Key Attributes
Product Name:
High Drilling Speed Customized OEM Design ST 350 Depths Pneumatic Drilling Rig
Drilling Depth:
350 meters
Application:
Water Well drilling
Technical Specifications
| Parameter |
Specification |
| Drilling Rig Model |
ST 350 Pneumatic Drilling Rig |
| Hole Diameter |
φ140-325mm |
| Advance Length per Cycle |
6.6m |
| Working Pressure |
1.7-3.3MPa |
| Air Consumption |
17-35m³/min |
| Lifting Power |
24T |
| Rotation Torque |
6200-8500 N.m |
| Rotation Speed |
55-115r/min |
| Engine Power |
85Kw/2200rpm |
| Weight |
9000kgs |
| Dimensions |
5500x1900x2780mm |
Key Features
- High drilling efficiency in various geological conditions
- Integrated design with standard air compressor for strong power output
- Hydraulic technology with high torque hydraulic motor rotation
- Multi-cylinder engine from reputable manufacturer
- Two-stage air filter system prolongs engine life
- Centralized hydraulic control panel for convenient operation
- Special pump set design reduces maintenance costs
- Capable of drilling boreholes up to 294mm diameter
Applications
The ST350 Pneumatic Drilling Rig is ideal for:
- Industrial and agricultural water well drilling
- Ground source heat pump wells
- Irrigation wells
- Exploration drilling in mountainous and rocky terrain
Frequently Asked Questions
What is the brand name of the Pneumatic Borewell Machine?
The brand name is Shitan.
What is the model number of the Pneumatic Borewell Machine?
The model number is ST-350.
Where is the Pneumatic Borewell Machine made?
It is manufactured in Jinzhou, China.
What materials are used to make the Pneumatic Borewell Machine?
The machine is constructed with high-quality steel and aluminum components.

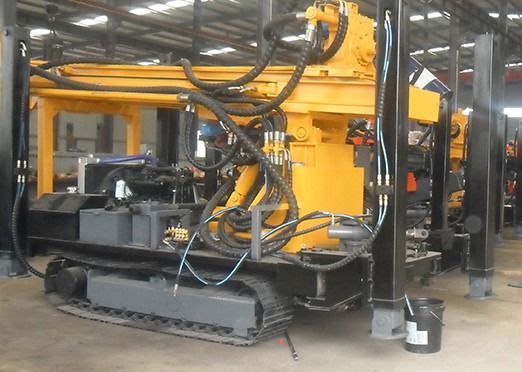

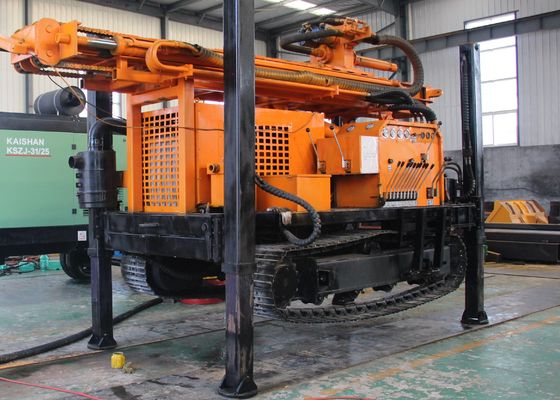

Product Images
